dB Technologies

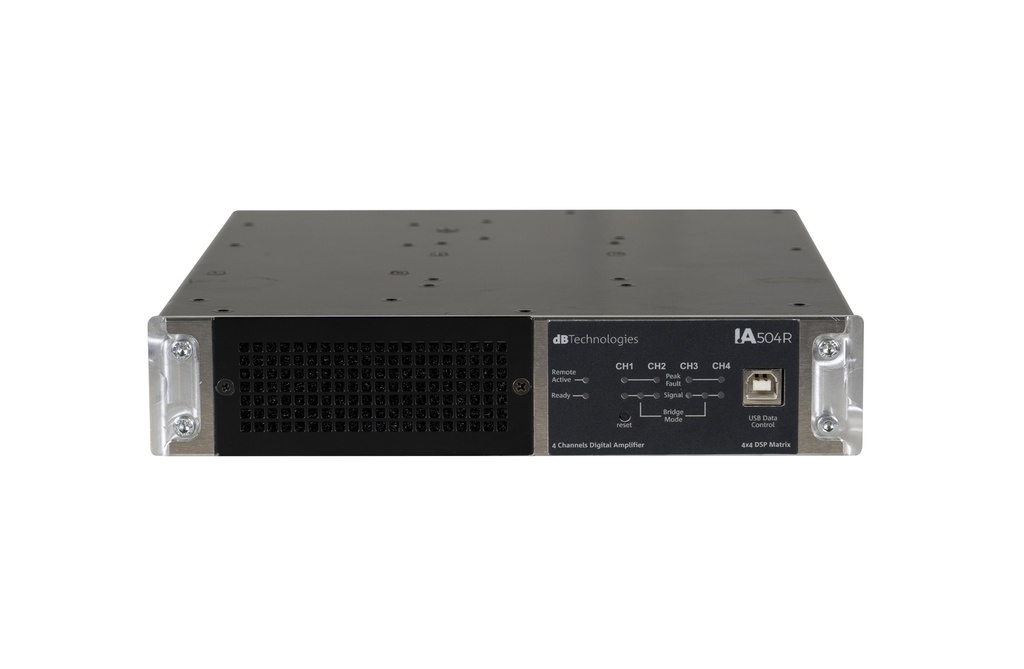

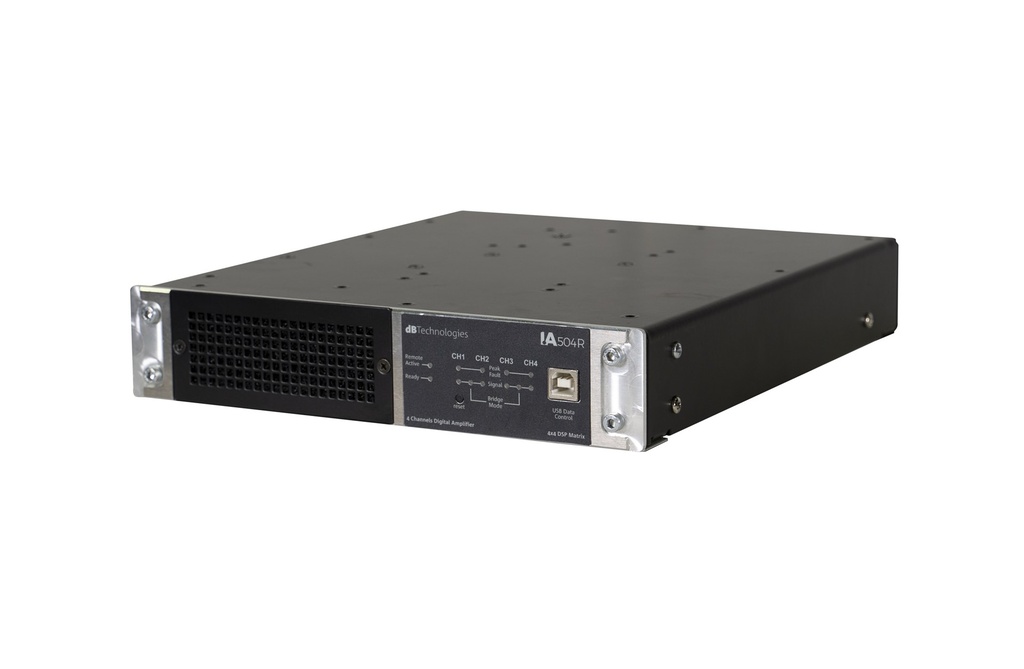

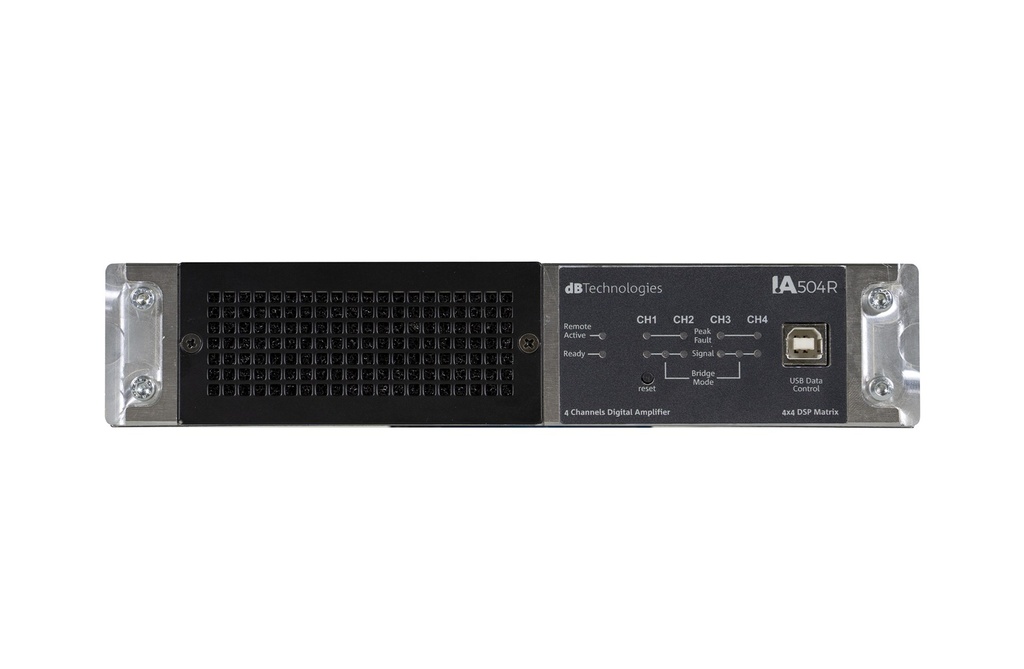

IA504R

Amplifier 4ch, 4x125 RMS Watt, DSP, 1HE / Half 19", RDNET
CHF 1'825.00 CHF 1'825.00 (inkl. Steuern)

Wird für Sie bestellt
In den Warenkorb
Allgemeine Geschäftsbedingungen
Versand: 2-3 Arbeitstage

IA504 is a half rack sized class-D power amplifier that can work both for constant voltage systems (70 or 100 Volts) as well as professional audio applications with 4 time 125 W 4 ohms, fit for stereo or bridge configuration. Two versions are available: both are equipped with onboard DSP, full range PSU with Power factor correction and a GPIO interface, but they differ on the networking side.

In facts, IA504R version comes with RDNet ports, and IA504D with Dante ports, able to embed remote control and digital audio-in.

Technical Data
Type CLASS D Half-rack Amplifier
Acoustical data
Single channel mode 4 Ohm / 8 Ohm / 16 Ohm (no 70V / 100V)
Bridged mode 8 Ohm / 16 Ohm
Preset Flat, dBTechnologies speaker, User preset
Input Impedance 20 kOhm balanced
Frequency Response 20 - 20.000 Hz
Amplifier
Total rated power 280 W RMS @ 230Vac / 250 W RMS @ 120Vac
Single channel driven 4 Ohm: 425W Peak / 280W RMS8 Ohm: 245W Peak / 245W RMS16 Ohm: 135W Peak / 135W RMS8 Ohm (Bridge): 619W Peak / 280W RMS70V: 250W RMS100V: 240W RMS
All channels driven 4 Ohm: 225W Peak / 70w RMS8 Ohm: 180W Peak /70 W RMS16 Ohm: 125W Peak / 70W RMS8 Ohm (Bridge): 440W Peak / 140W RMS70V: 140W RMS100V: 140W RMS
Mains connections IEC 10A connector
PFC Yes
Nominal Voltage 115Vac - 240Vac @50/60Hz
Operating Voltage 90Vac - 264Vac @50/60Hz
Processor
AD 24 Bit @48kHz
DA 24 Bit @48kHz
Limiters Compressor on processing channelsPeak limiter on output channel (also used in dBTechnologies preset)

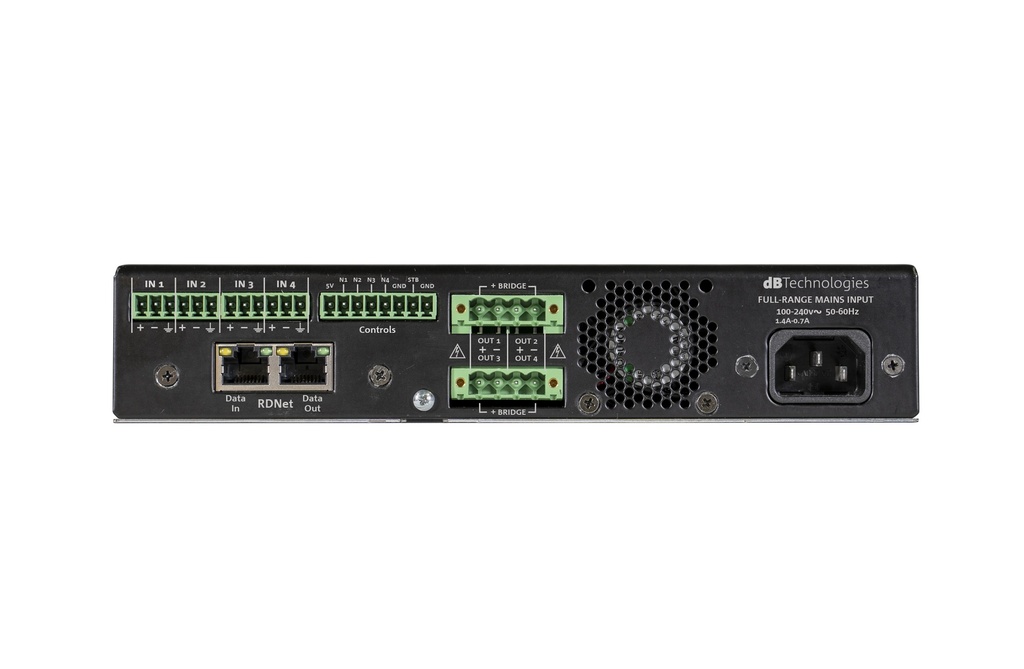

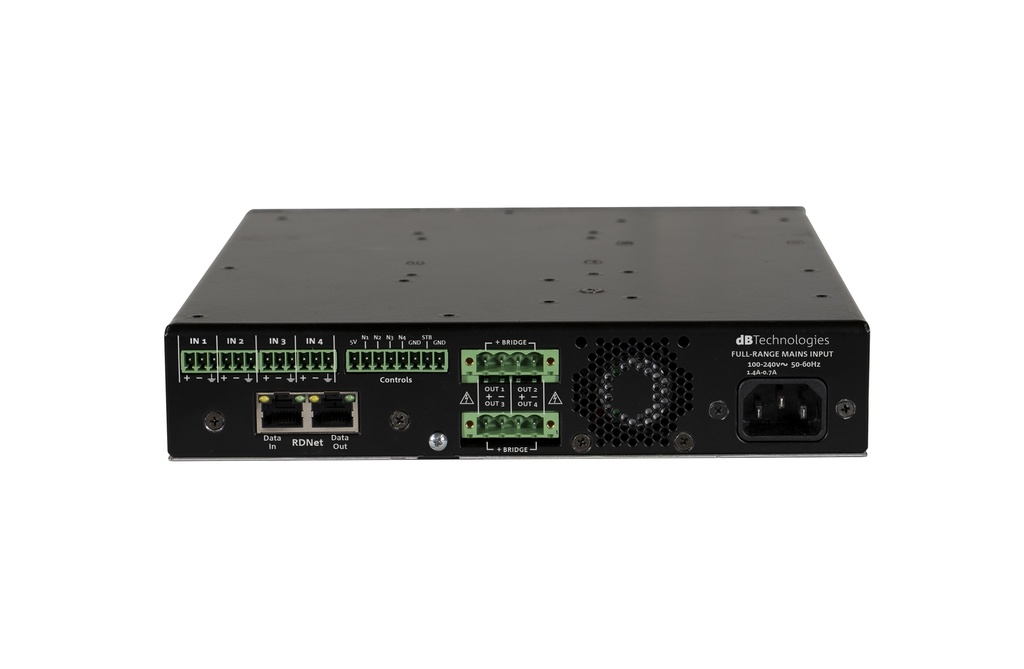

Input
Input Channel 4 Analog Balanced (EuroBlock 3.81mm)
Output Channel 4 (EuroBlock 5.08mm)
Service Data Frontal USB(AuroraNet setup & control)
Networking 2 x RJ45 RDNet(AuroraNet setup & control)
Mechanics
Width 222 mm (8.7 in)
Height 44 mm (1.7 in)
Depth 256 mm (10.1 in)
Weight 1.82 kg (4.01 lbs)
