Electrocompaniet

EC 4.8 MK II

https://www.mgmaudio.ch/web/image/product.template/2173/image_1920?unique=f259f93

Reference Preamplifier

CHF 4'061.05 4061.05 CHF CHF 4'061.05 Inklusive MwSt.

CHF 4'061.05 Inklusive MwSt.

Preis auf Anfrage

Wird für Sie bestellt

Diese Kombination existiert nicht.

Geschäftsbedingungen
Versand: 2-3 Arbeitstage

With its outstanding performance, excellent resolution, superb control and precise musical reproduction, we have made a preamplifier that is true to our slogan, “Closing the gap to the master”. Our new two-channel EC 4.8 MKII preamplifier enhances the predecessor, and is sure to make all good power amplifiers sound even better!


Technical specifications

All measurements are made at 120V / 240V  //50Hz / 60Hz


Input impedance 47 Kohm
Output impedance 100 ohm
Max input    +-15 Vp-p ( +- 30Vp-p Bal)
Max output +-30 Vp-p ( +- 30Vp-p Bal)

Minimum gain -111dB
Maximum gain 6dB
Noise Floor(0 dB gain) < -130 dB
Frequency responce 1 – 200 kHz
Channel Seperation > 120dB
THD (1V in, 1V out) <0.002%


Power consumption (no load or signal) 30 W

Dimensions and Waight
Width 470 mm – 18.5 inches
Depth 372 mm – 14.64 inches
Height 80 mm – 3.14 inches
Weight 11.3 kg – 24.9 lbs

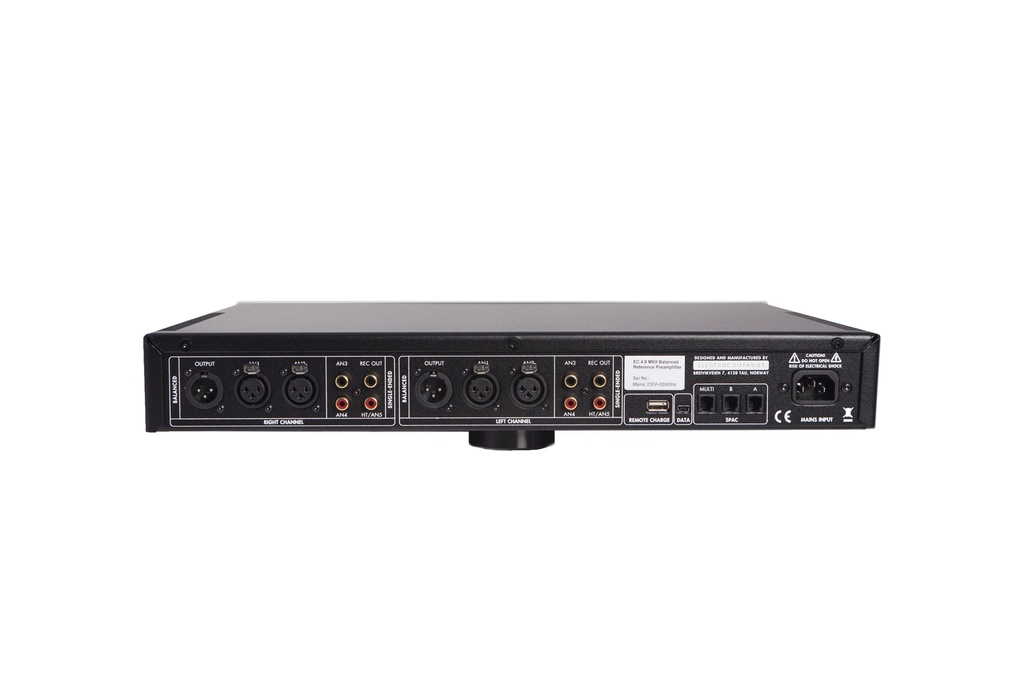

Inputs
Balanced 2 x 2 channel
Single ended 3 x 2 channel

Control Ports
Nettwork 3 x SPAC
Programming 1 x USB

Outputs
Balanced 1 x 2 channel
Single ended Record Out
