Electrocompaniet

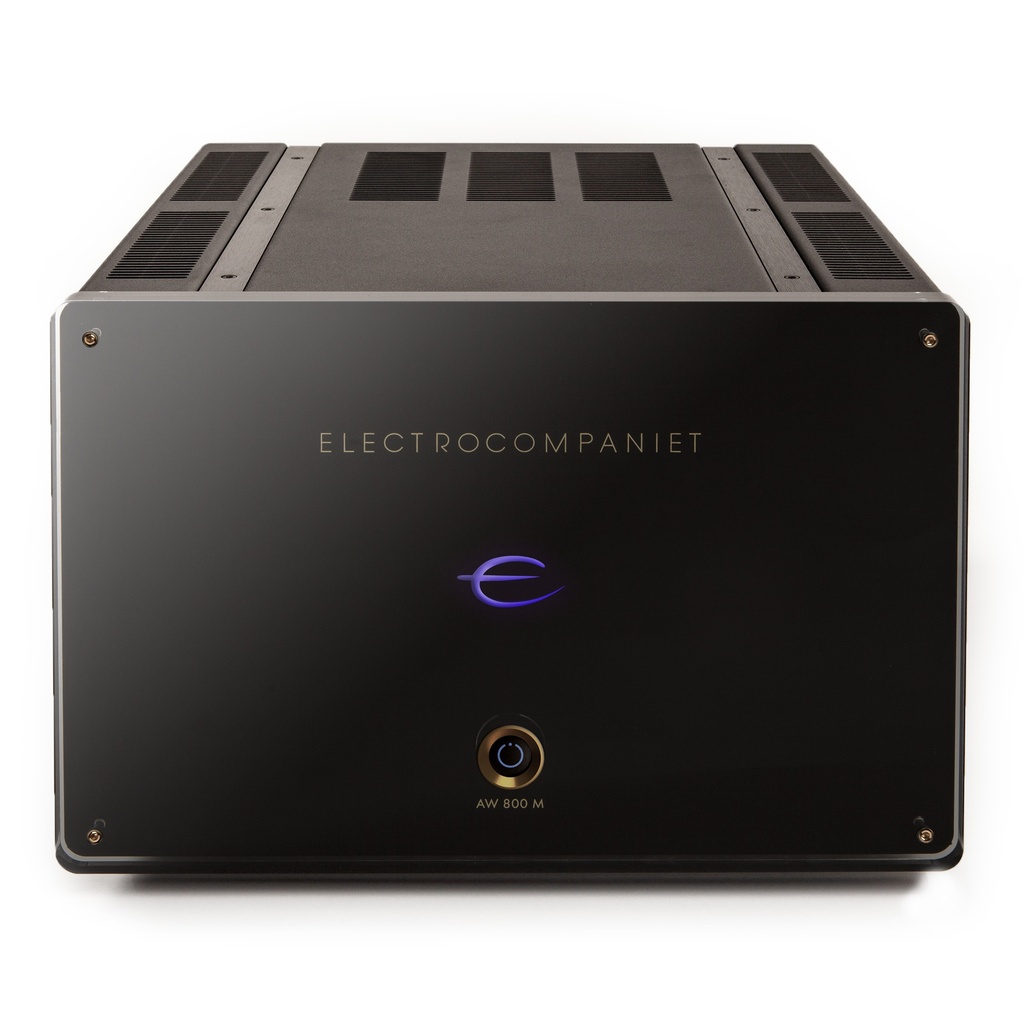

AW 800 M

https://www.mgmaudio.ch/web/image/product.template/2172/image_1920?unique=445f45a

Reference Monoblock Power Amplifier

CHF 17'483.81 17483.81 CHF CHF 17'483.81 Inklusive MwSt.

CHF 17'483.81 Inklusive MwSt.

Preis auf Anfrage

Wird für Sie bestellt

Diese Kombination existiert nicht.

Geschäftsbedingungen
Versand: 2-3 Arbeitstage

The AW 800 M is Electrocompaniet’s brand-new flagship power amplifier. It replaces the legendary AW 600 NEMO as our most powerful monoblock power amplifier. The amplifier showcases an updated, yet unmistakable and distinctive Electrocompaniet design that is a perfect match for all current and legacy Electrocompaniet products.


Technical Specifications

Input impedance: 330 kΩ
Frequency resp. (in. filter active):0.5 – 220 kHz
Frequency resp. (in. filter dis.): 0.5 – 1.1 MHz
Voltage gain (mono, bal. input):  35 dB (x56)
Voltage gain (stereo, bal. input):  29 dB (x28)
Input-referred noise (20-20kHz):  < 2 μV
SNR (ref. 1W/8Ω load, 20-20 kHz):  95 dB
SNR (ref. full power out, 20-20 kHz): 122 dB
Slew-rate (input filter disabled): 270 V/μs
DC output voltage: < 5 mV
THD+N: 0.0006 %
IMD: 0.001 %
Damping factor (8Ω load): > 1000
Power consumption standby: < 0.5W
Protection: DC, overload, temperature





RATED OUTPUT POWER STEREO:

8Ω load: 2 x 300 W
4Ω load: 2 x 600 W
2Ω load: 2 x 1000 W



RATED OUTPUT POWER MONO:

8Ω load: 800 W
4Ω load: 1500 W
2Ω load: 2200 W



WEIGHT & DIMENSIONS:

Weight:  55 kg – 122 lbs
Width:   406 mm – 15.98 inches
Depth:   488 mm – 19.21 inches
Height:  292 mm – 11.49 inches
*Features and specifications are subject to change without further notice.
