V!O

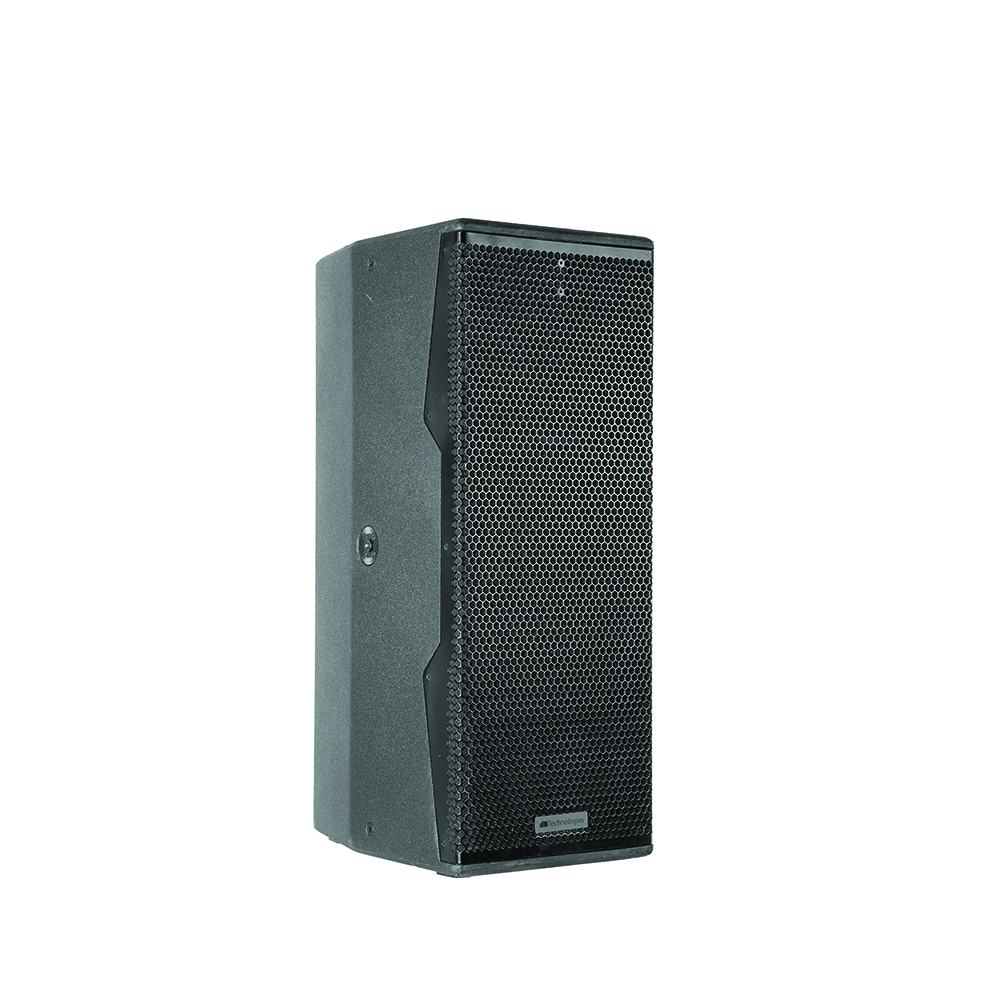

VIO-X310

https://www.mgmaudio.ch/web/image/product.template/2515/image_1920?unique=47c9fcc

Active 3- Way, 2x10"/1x4"/1x2.5", 1600W RMS, 90 x60°

CHF 0.00 0.0 CHF CHF 0.00 Inklusive MwSt.

CHF 0.00 Inklusive MwSt.

Preis auf Anfrage

Auf Lager

Diese Kombination existiert nicht.

Geschäftsbedingungen
Versand: 2-3 Arbeitstage

The 3-way tri-amped design.

The MF-HF coaxial component mounted in both VIO X310 and VIO X315 utilize the same transducer used in the VIO L1610 line array module: it's a 4” voice coil plus 2.5” voice coil coaxial driver, an heavy-duty and high-fidelity transducer reproducing from 500Hz up.

When it comes down to detailed mid-range reproduction, a compression driver diaphragm is much quicker and more accurate than a similar sized woofer. Furthermore, because of the compact dimensions, this content can be easily dispersed through a horn, just like you would do with an HF driver, for improved control over the sonic pattern.

These characteristics result in an incredibly faithful and meticulous reproduction of the most critical frequency range, essential for clear-cut intelligible vocals and instrument separation in your mix.

Since a great portion of the frequency content is horn loaded, not only is the sound pressure level impressive due to the acoustic loading, but also directivity control is maximized.

Last but not least, the sum of all these acoustic design choices combined with cutting edge class-D amplifiers and DSP processing result in remarkable sound pressure levels, as high as 137dB.

The two speakers share the same coaxial MF-HF transducer but differ in size due to the different components handling the low-end reproduction.

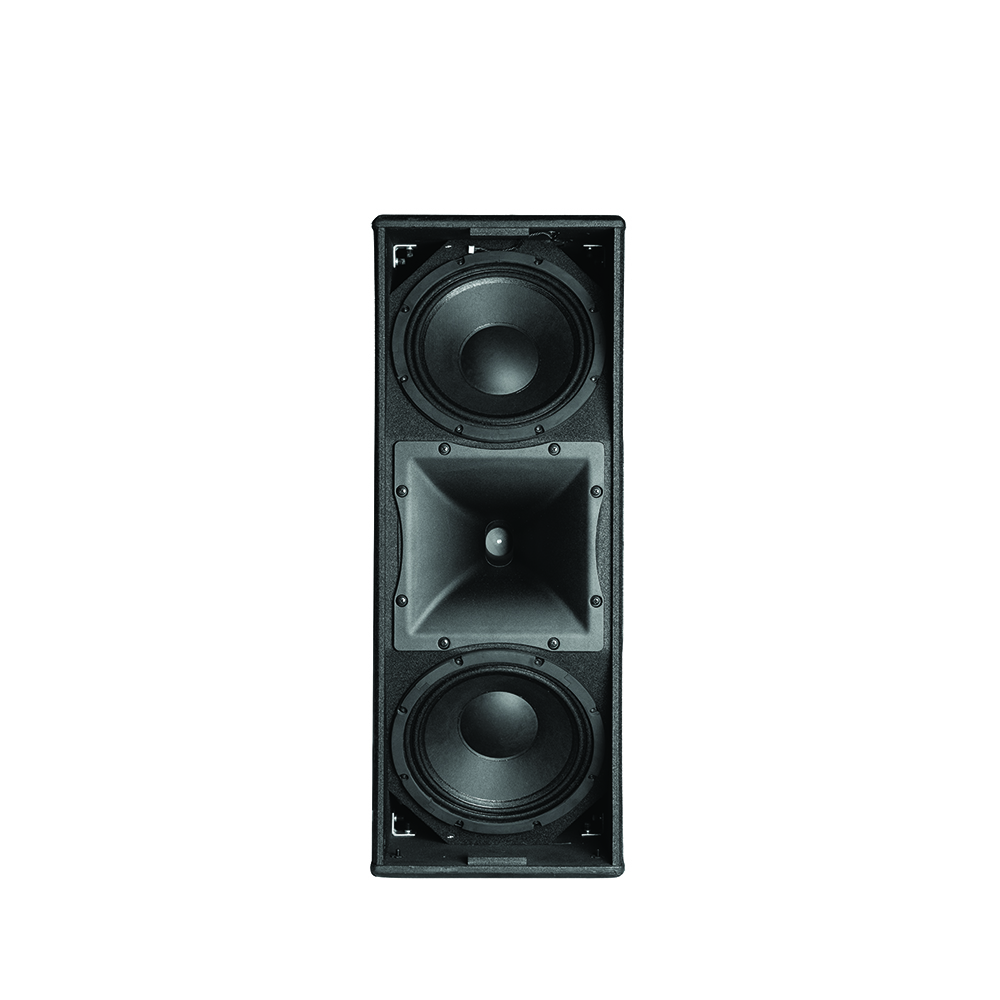

VIO X310 is equipped with 2x 10" neodymium woofers in a dipole configuration, so the speaker benefits from all the advantages of this arrangement such as a very prominent directivity control for low-mids and a precise, fast, and extended response of the bottom end.

The Coaxial mid-high frequency compression driver is mounted behind a 90° by 40° rotatable horn, and all the components are arranged around the center of this point source, resulting in a symmetrical dispersion.



Technical Data
Speaker Type 3 Way Active Loudspeaker
Acoustical data
Usable bandwidth [-10dB] 53 - 19.800 Hz
Frequency Response [-6dB] 57 - 19.200 Hz
Max SPL 138 dB
HF/MF 1x 1.4”, 4"- 2.5" v.c. Coaxial Neo
LF 2x 10”, 2.5" v.c Neo
Directivity 90° x 40° [H x V]
Amplifier
Amplifier 1400 W RMS Class-D Digipro® G4
Cooling Convection
Power Supply Full range SMPS with PFC
Processor
Controller DSP 32 bit
AD/DA Converter 24 bit/96 kHz
Limiter Peak, RMS, Thermal
Processing FIR Linear Phase Filters

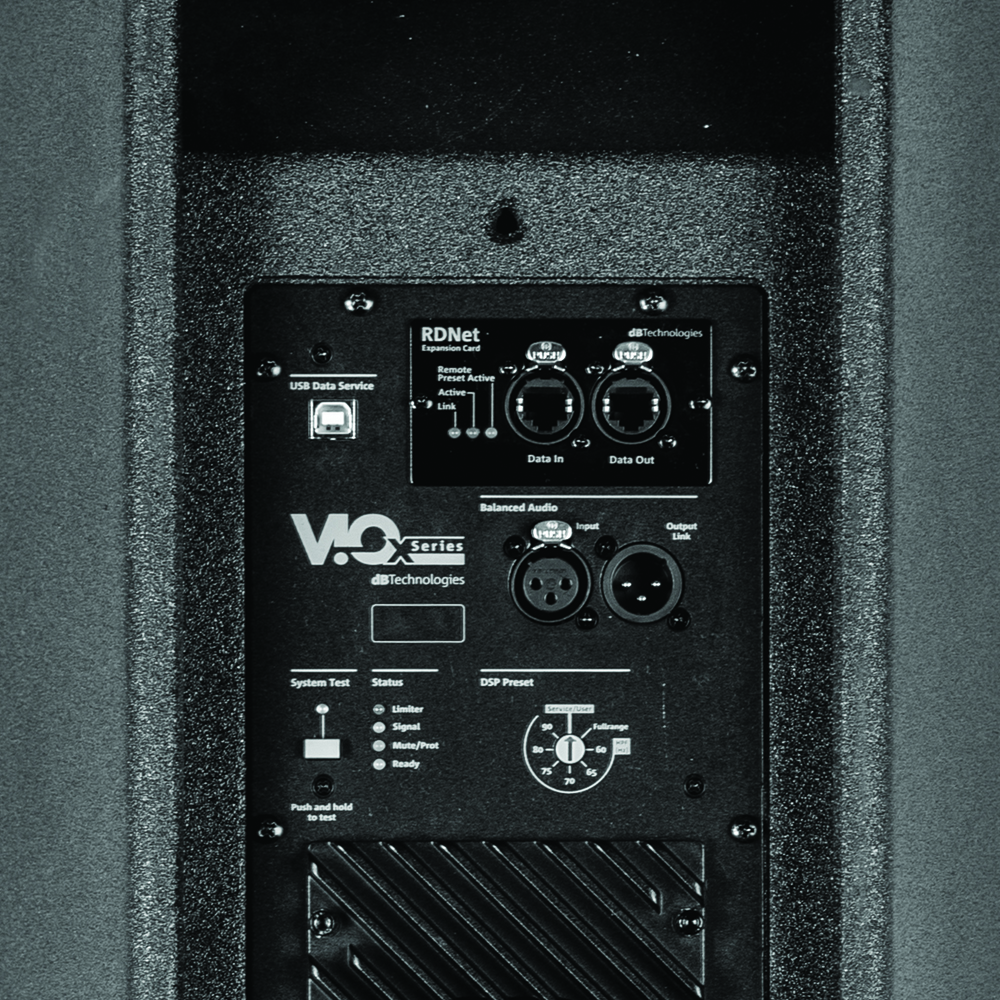

Input
Signal Input 1 x XLR balanced, 1 x RJ45 Link (RDNet), 1x USB (Data Service)
Signal Output 1x XLR balanced, 1 x RJ45 Link (RDNet)
Power Socket 1x PowerCON TRUE1 In1x PowerCON TRUE1 Out
Controls 1x input Rotary Encoder (8x presets) 1x Ready LED1x Mute/Prot LED1x Signal LED1x Limiter LED1x Frontal LED1x Button and 1x LED System Test
Mechanics
Housing Wooden Cabinet

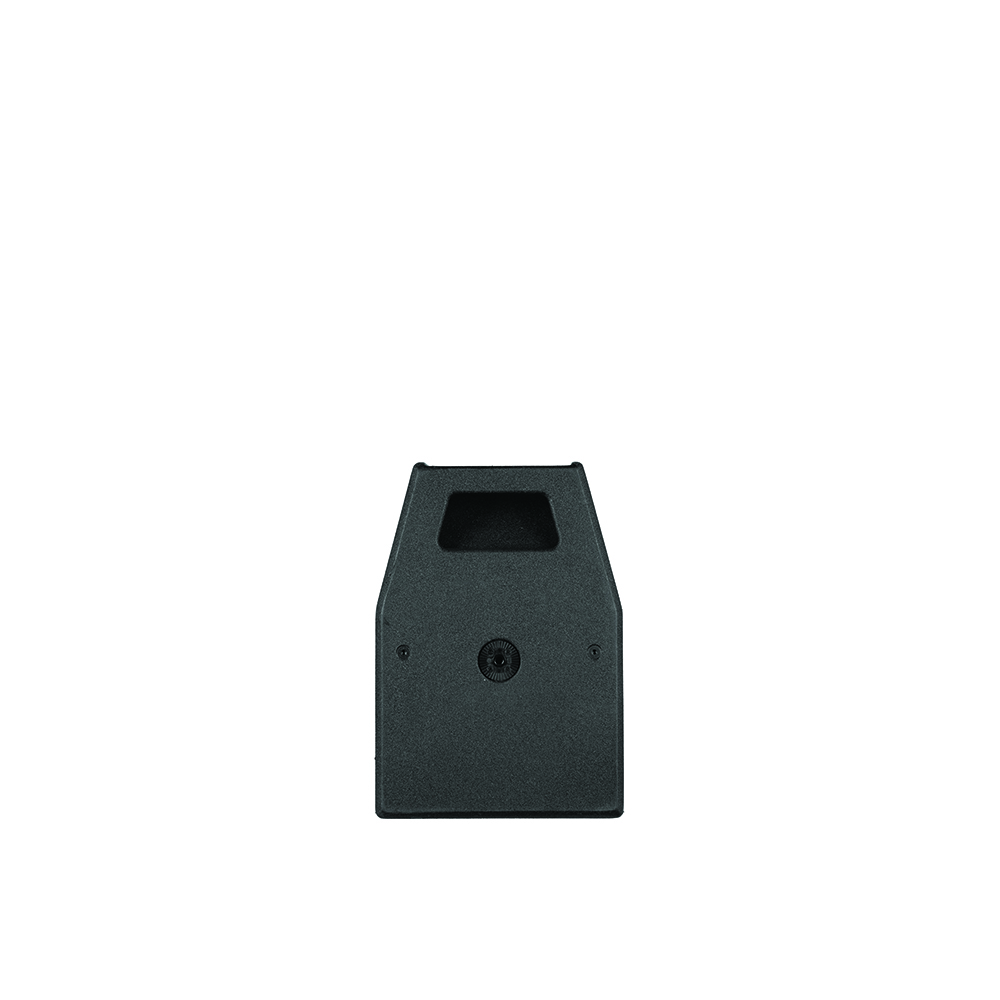

Handles 1x on top / 1x on bottom
Rigging points flyable with bracket
Width 300 mm (11.8 in)
Height 780 mm (30.7 in)
Depth 430 mm (16.9 in)
Weight 28 kg (61.5 lbs)
