VIO-X206- 60x90

https://www.mgmaudio.ch/web/image/product.template/2388/image_1920?unique=0dabccb

Active 2- Way, 2X 6,5’’, 1x1", 900 W RMS, 60x90°

CHF 0.00 0.0 CHF CHF 0.00 Inklusive MwSt.

CHF 0.00 Inklusive MwSt.

Preis auf Anfrage

Auf Lager

Diese Kombination existiert nicht.

Geschäftsbedingungen
Versand: 2-3 Arbeitstage

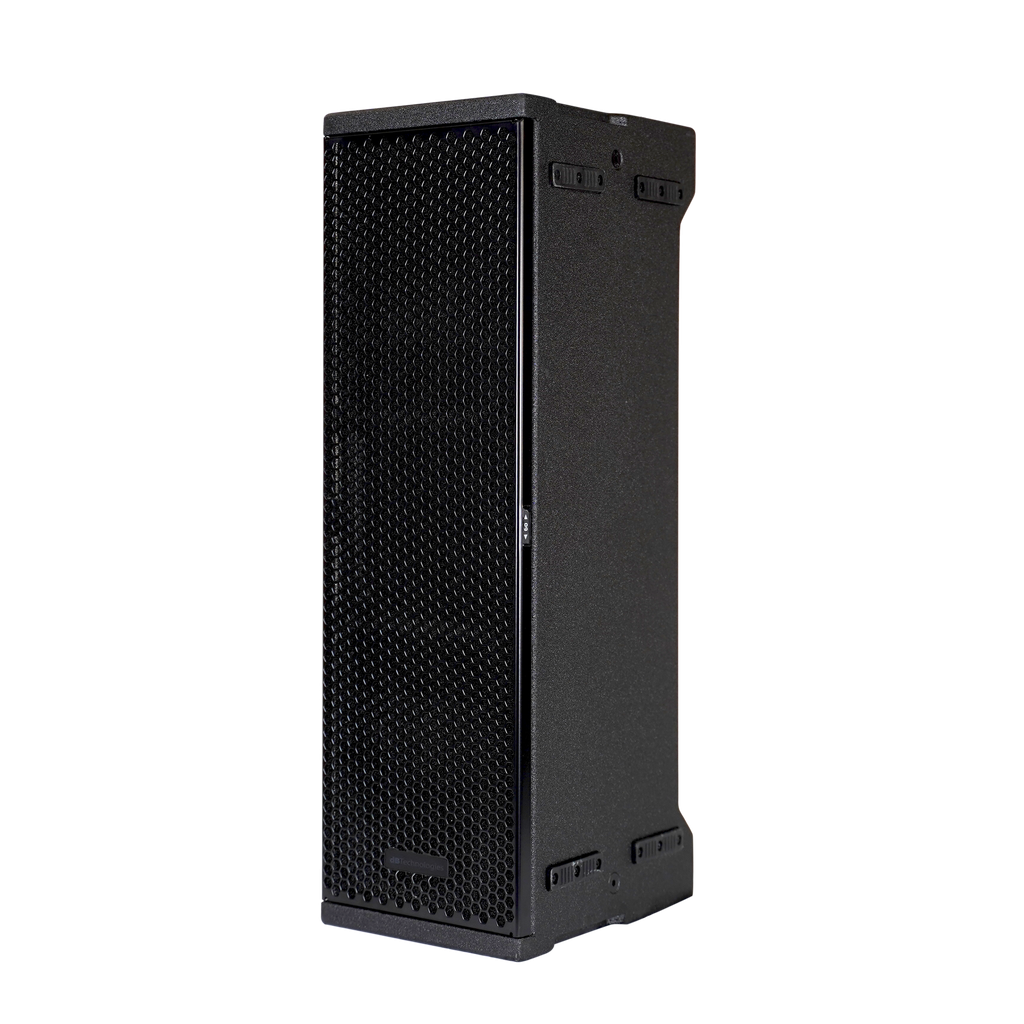

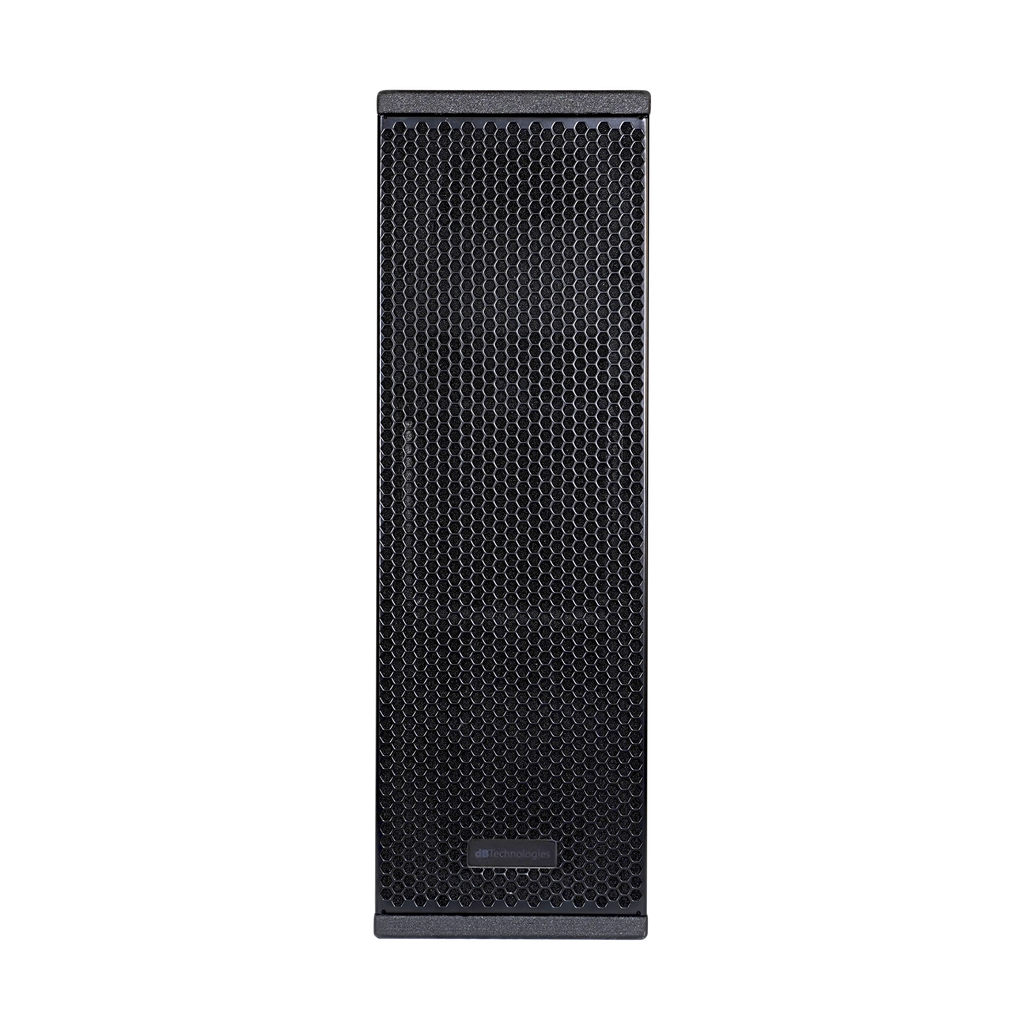

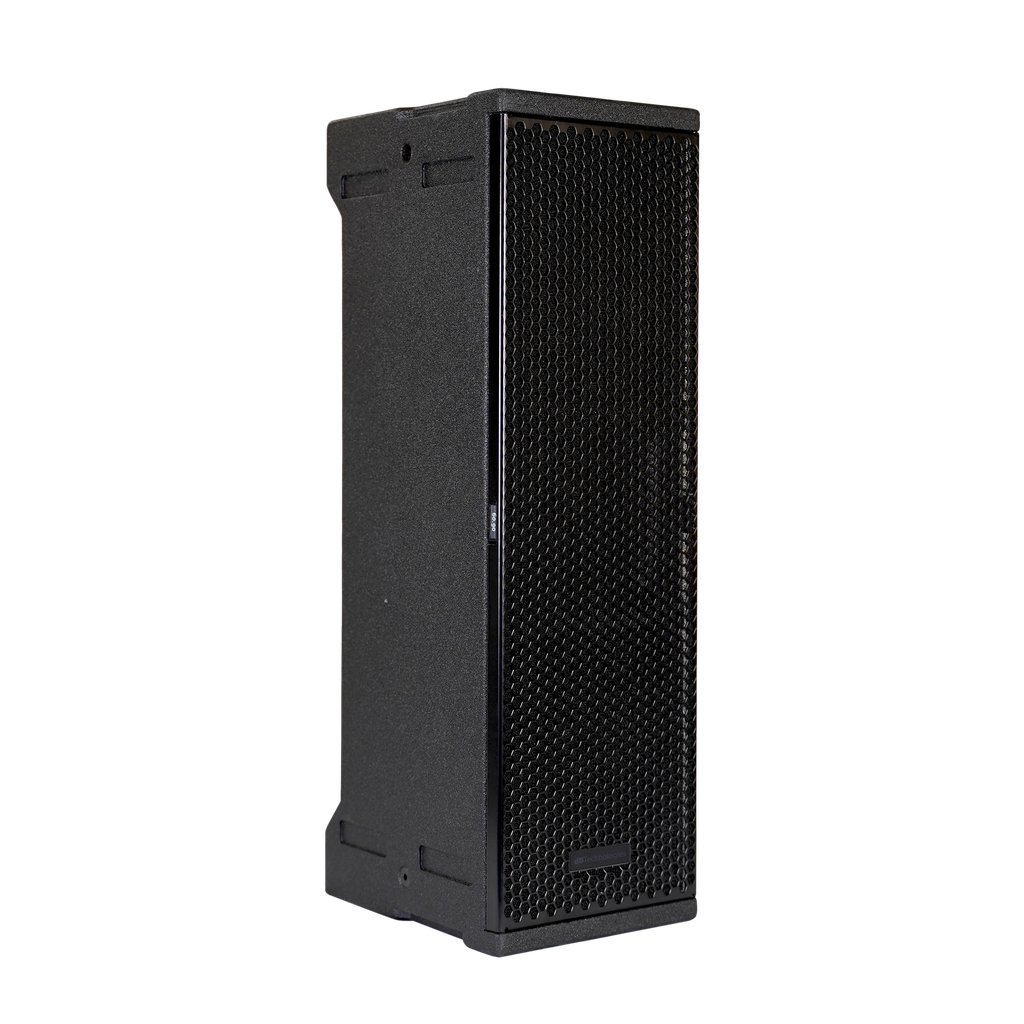

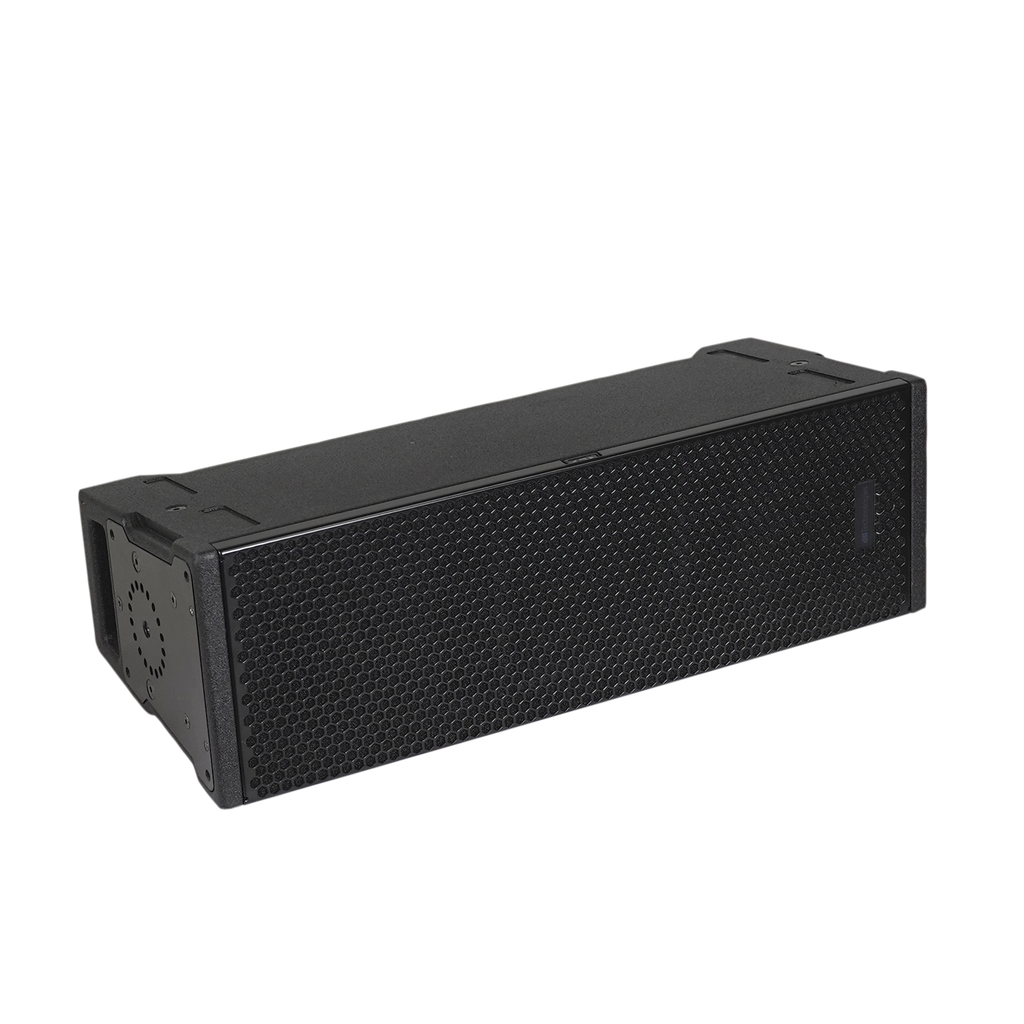

VIO X206 is an ultra-compact active professional speaker that delivers sound pressure and linear response to the highest level. Available in 2 versions with a standard 90x60° coverage or a 100x15" dispersion pattern wich basically turns the full range speaker into a line array module.

Point Source and Line Array

The system is available in 2 models providing different coverage patterns.

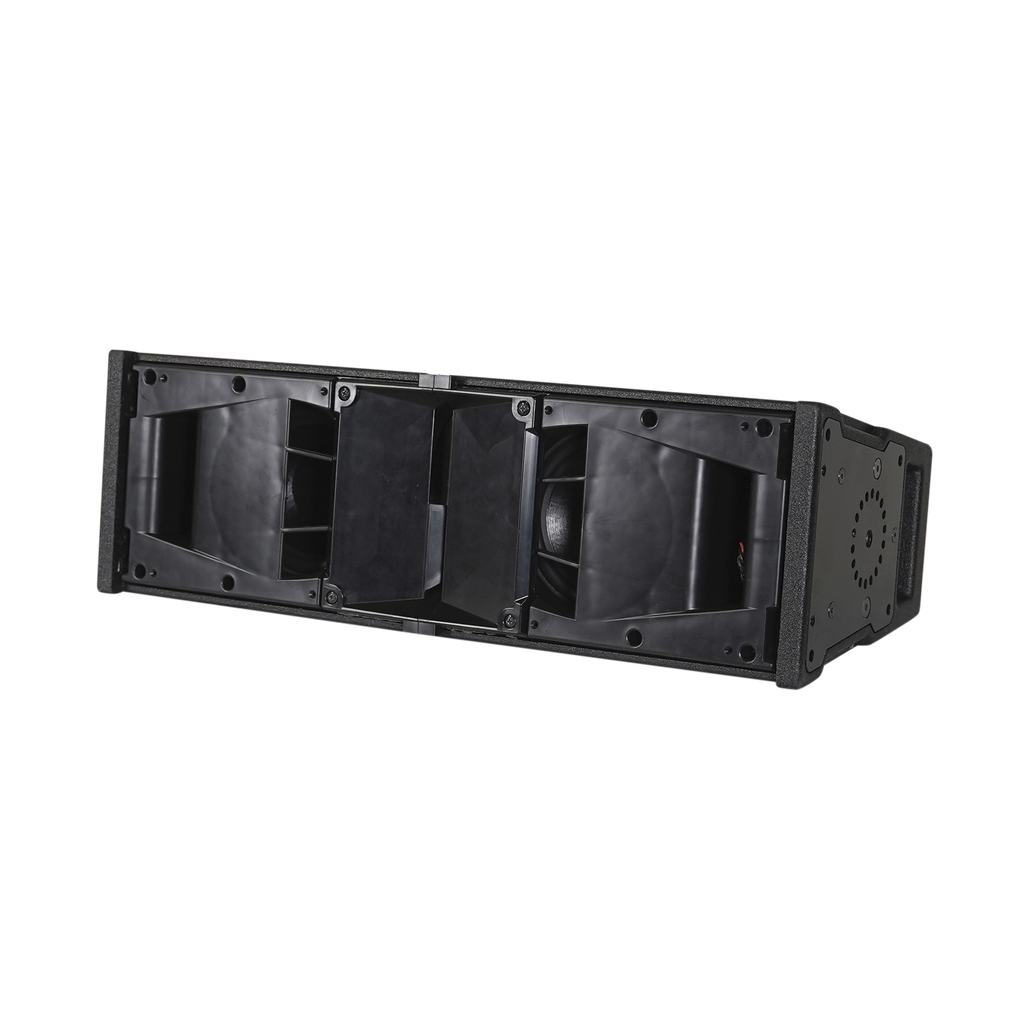

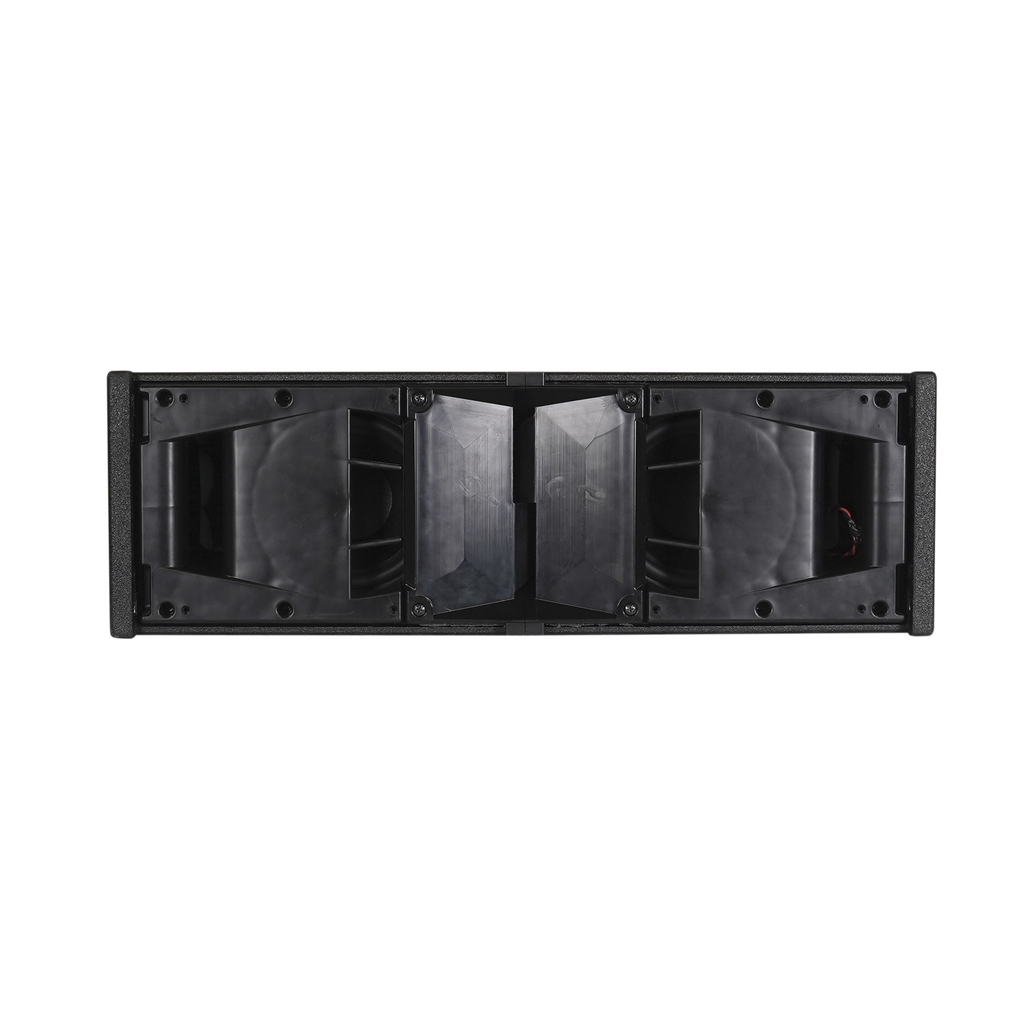

VIO X206 features a horn allowing for a 60x90° dispersion. VIO X206-100, instead, features a waveguide providing a 100x15°dispersion, allowing the system to operate in line array mode.

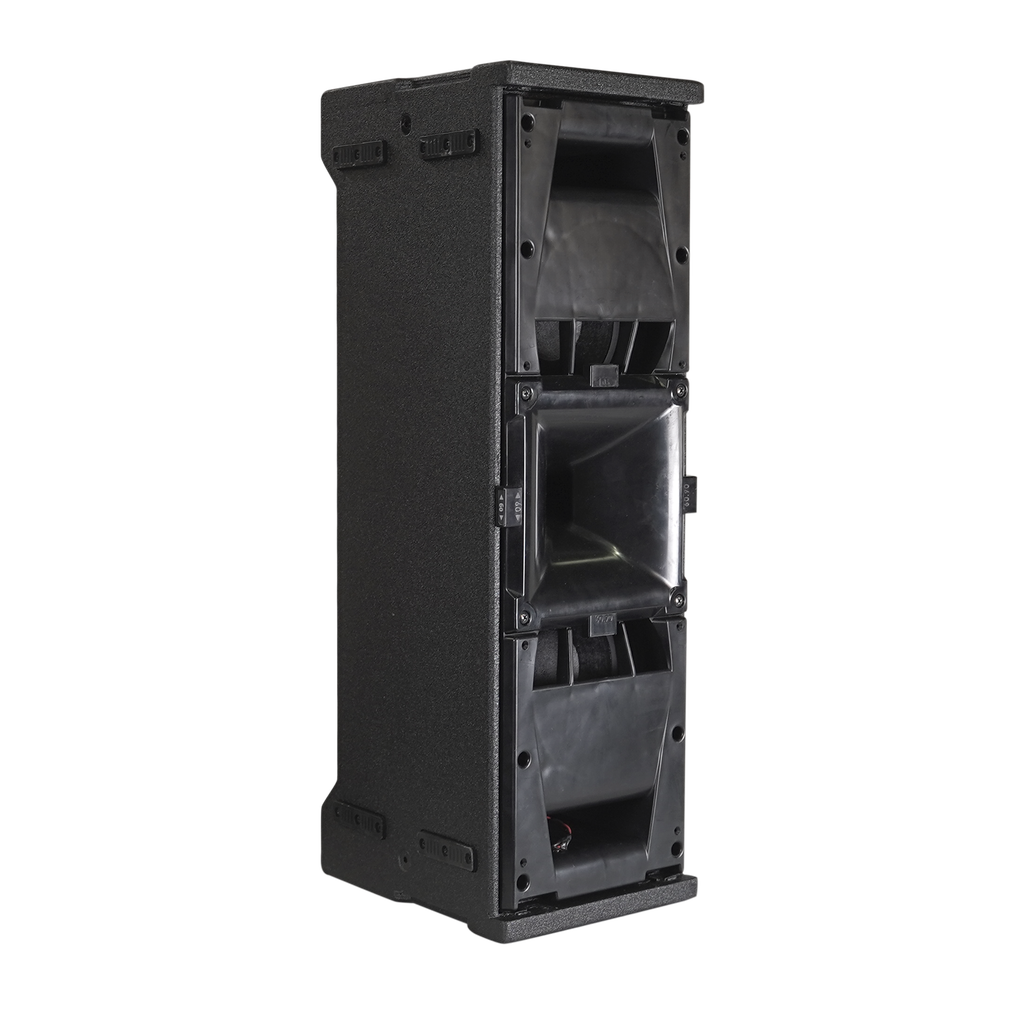

Both VIO X206 horn and VIO X206-100 waveguide are removable, meaning that users can easily replace them, adapting their VIO X206 systems to the venue and application in use.
A firmware preset button on board optimizes the behavior of the DSP to the application in use.
Thanks to the two variants it cover a wide range of applications, meeting the requirements of both production and integration. This sleek, slim cabinet can easily fits onto a live stage, a corporate event facility, as well as a meeting room or a bar.



Technical Data



Speaker Type

2 Way Active Loudspeaker





Acoustical data



Usable bandwidth [-10dB]

66 - 19.500 Hz / 66 - 18.000 Hz [VIO X206-100]

Frequency Response [-6dB]

70 - 18.000 Hz / 70 - 17.500 Hz [VIO X206-100]

Max SPL

    131 dB

HF

1x 1”, 1.75 v.c.

LF

2x 6.5”, 1.75 v.c

VIO X206 Directivity

60° x 90° rotatable

VIO X206-100 Directivity

100° x 15° [H x V]





Amplifier



Amplifier

900 W RMS Class-D Digipro® G3

Cooling

Convection

Power Supply

Auto-range SMPS





Processor



Controller

DSP 32/56 bit

AD/DA Converter

24 bit/96 kHz

Limiter

Peak, RMS, Thermal

Processing

FIR Linear Phase Filters

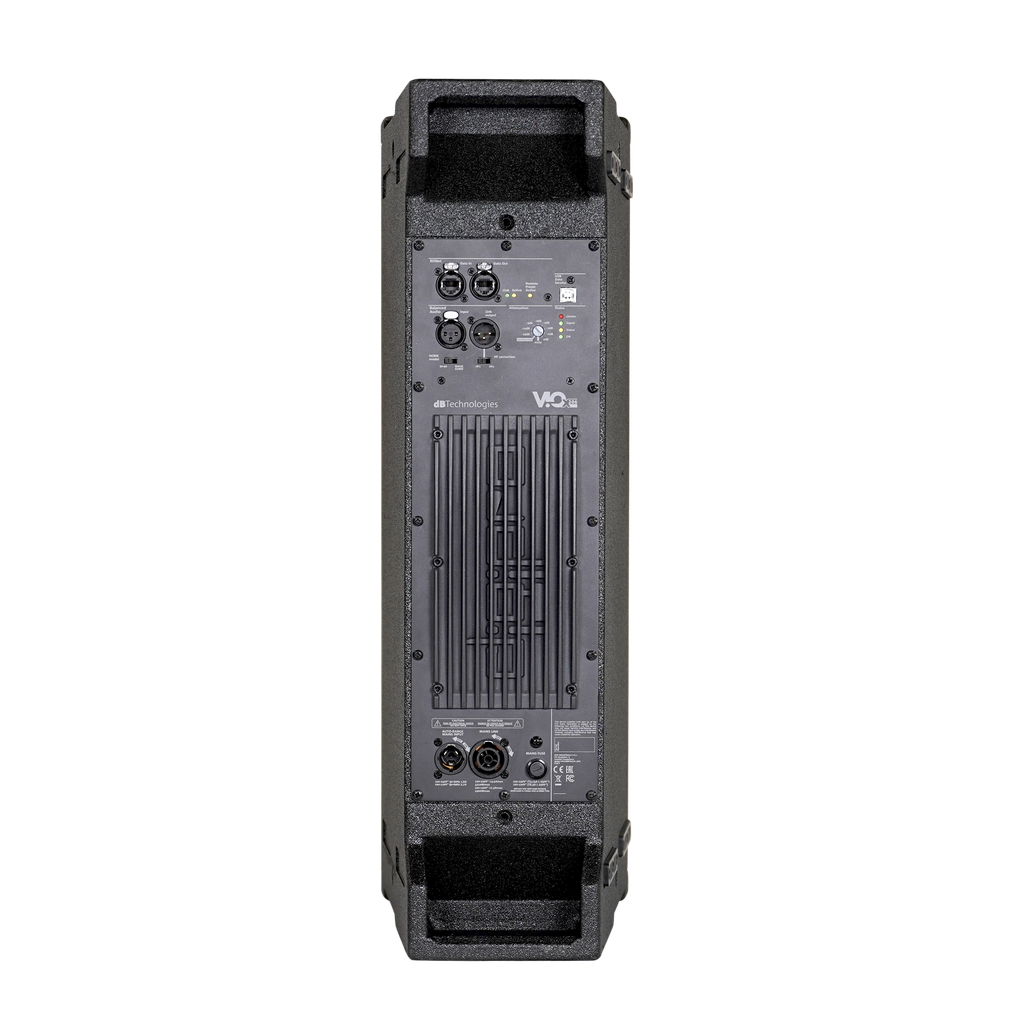

Input



Signal Input

1 x XLR balanced, 1 x RJ45 Link (RDNet), 1x USB (Data Service)

Signal Output

1x XLR balanced, 1 x RJ45 Link (RDNet)

Power Socket

1x PowerCON TRUE1 In
1x PowerCON TRUE1 Out

Controls

1x Rotary Encoder (10x EQ presets)

1x Input Attenuation Rotary Switch
1x On LED
1x Status LED
1x Signal LED
1x Limiter LED

3x RDNet Status LED






Mechanics



Housing

Wooden Cabinet, Polyurea painting

Handles

2 x integrated

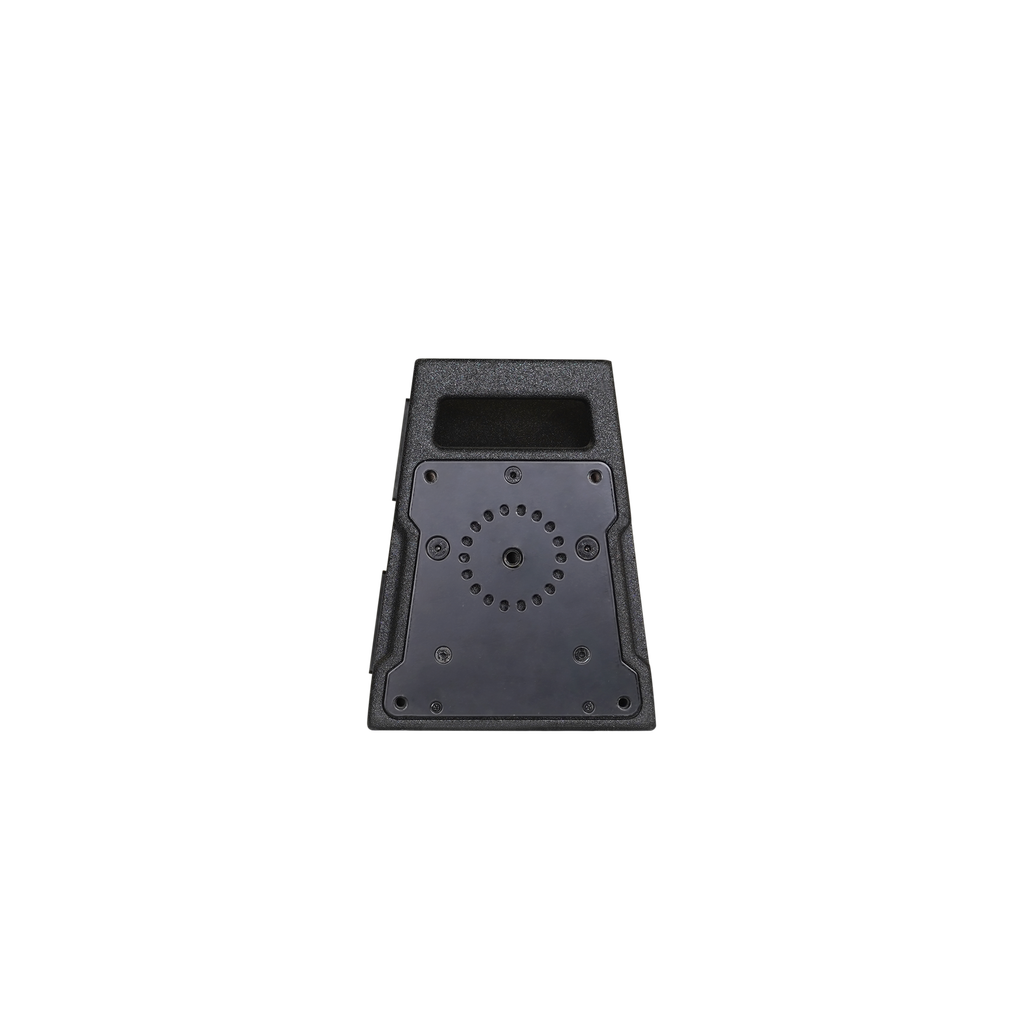

Rigging points

2x M10 Threaded Nuts (top and bottom)

Width

210 mm (8.3 in)

Height

650 mm (25.6 in)

Depth

270 mm (10.6 in)

Weight

17.3 kg (28.14 lbs)
