dB Technologies

SUB-915

https://www.mgmaudio.ch/web/image/product.template/2269/image_1920?unique=9983a76

Active, Sub, 15", 900W RMS, Class D

CHF 1'290.47 1290.47 CHF CHF 1'290.47 Inklusive MwSt.

CHF 1'290.47 Inklusive MwSt.

Preis auf Anfrage

Auf Lager

Diese Kombination existiert nicht.

Geschäftsbedingungen
Versand: 2-3 Arbeitstage

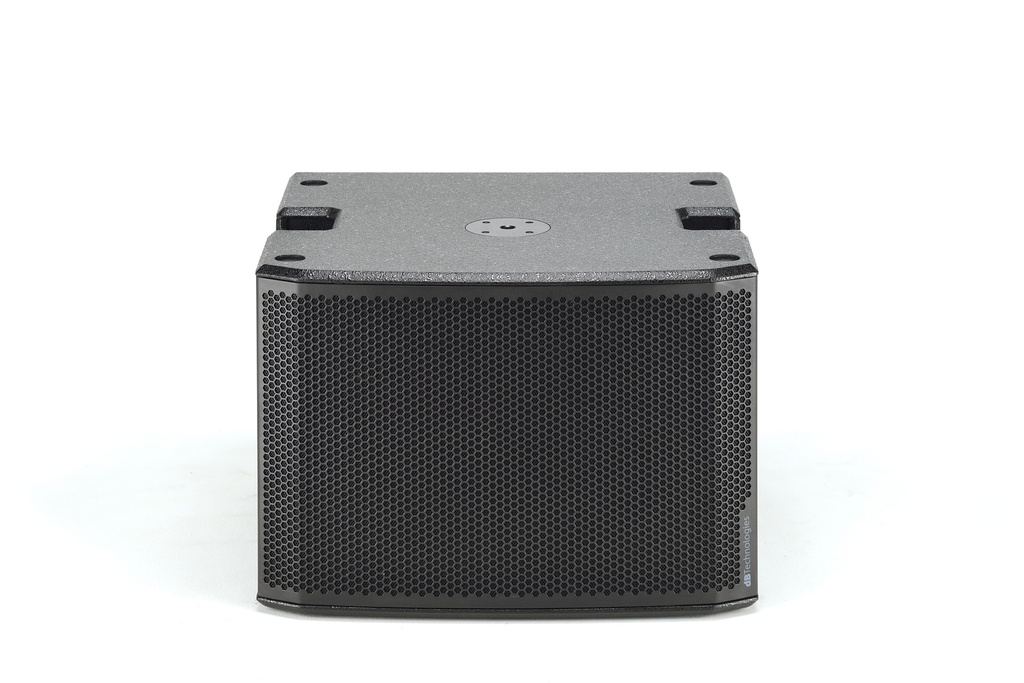

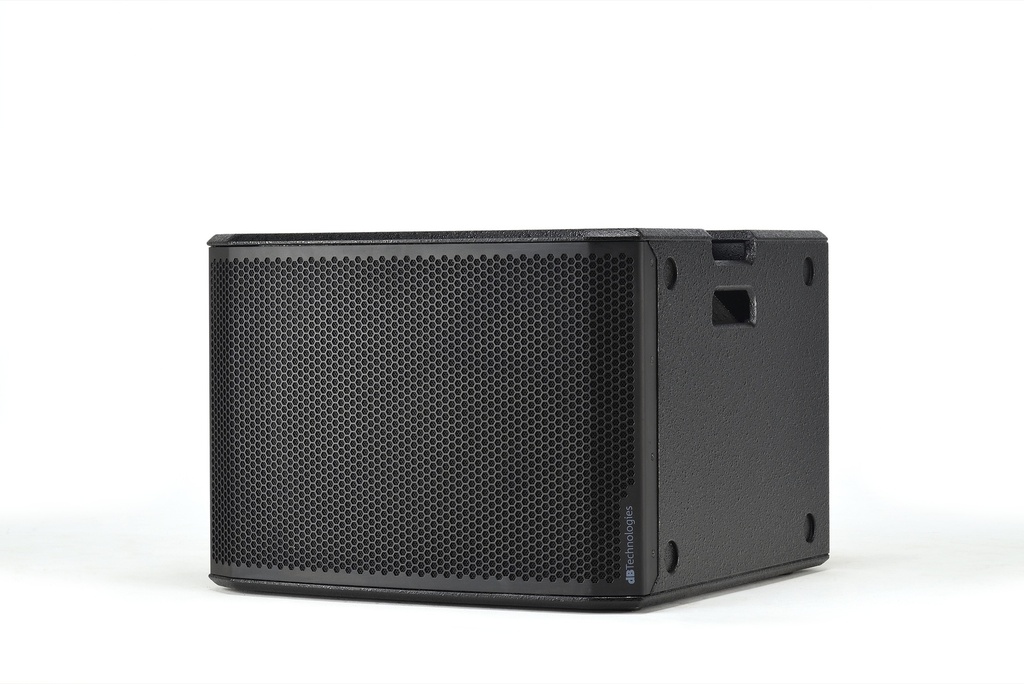

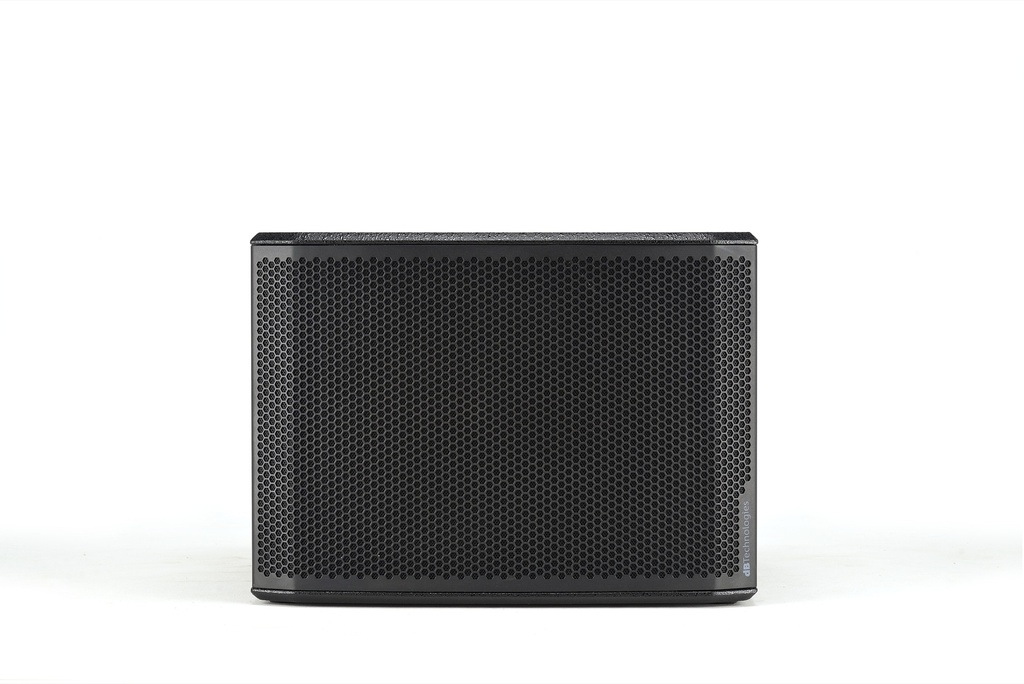

Designed for ground stacked applications, SUB 900 is the perfect choice whenever a powerful lower extension is required.

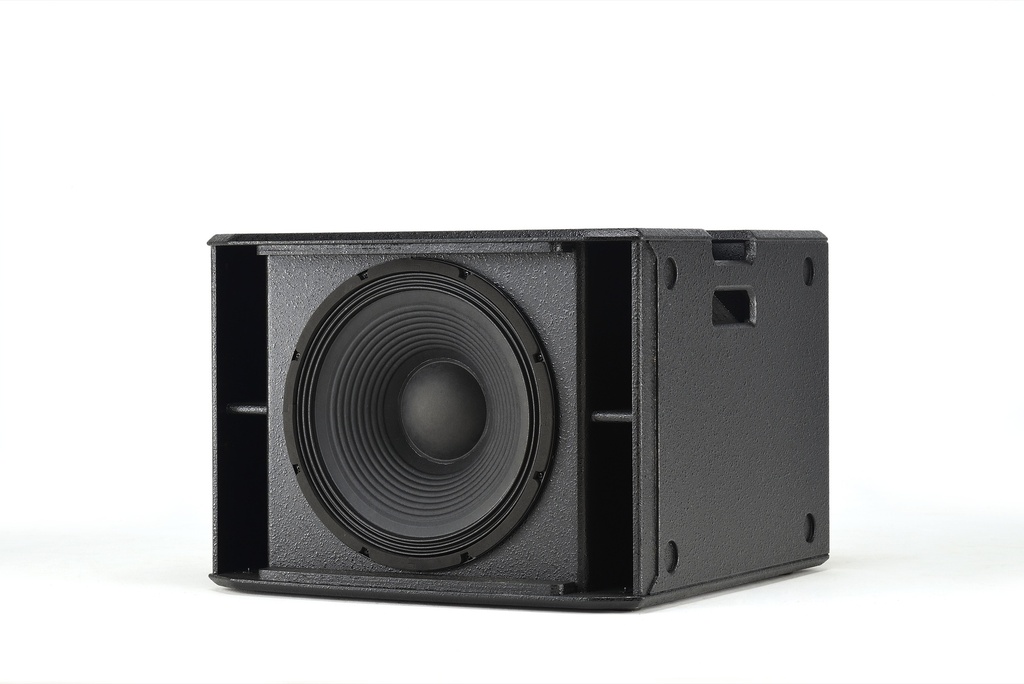

SUB 915 is equipped with a single premium 15" woofer housed in a bass-reflex design.

A 900 W RMS Class D Digipro G3 power amplifier ensures advanced efficiency as well as forcible sound pressure levels

SUB 915 is enabled for real time monitoring and remote control via RDNet protocol and Aurora Net software (Windows and Mac), allowing advanced subwoofer configurations alongside with perfect low-end matches with dBTechnologies’ full-range systems enabled to RDNet communications.

Both models of the family also feature on-board controls for attenuation, a polarity switch and DSP controls for a delay up to 4.5 milliseconds with 0.5 milliseconds steps (while a maximum 21 ms delay is allowed via Aurora Net). A second rotary allows to set crossover frequency from 70 to 110 Hz.

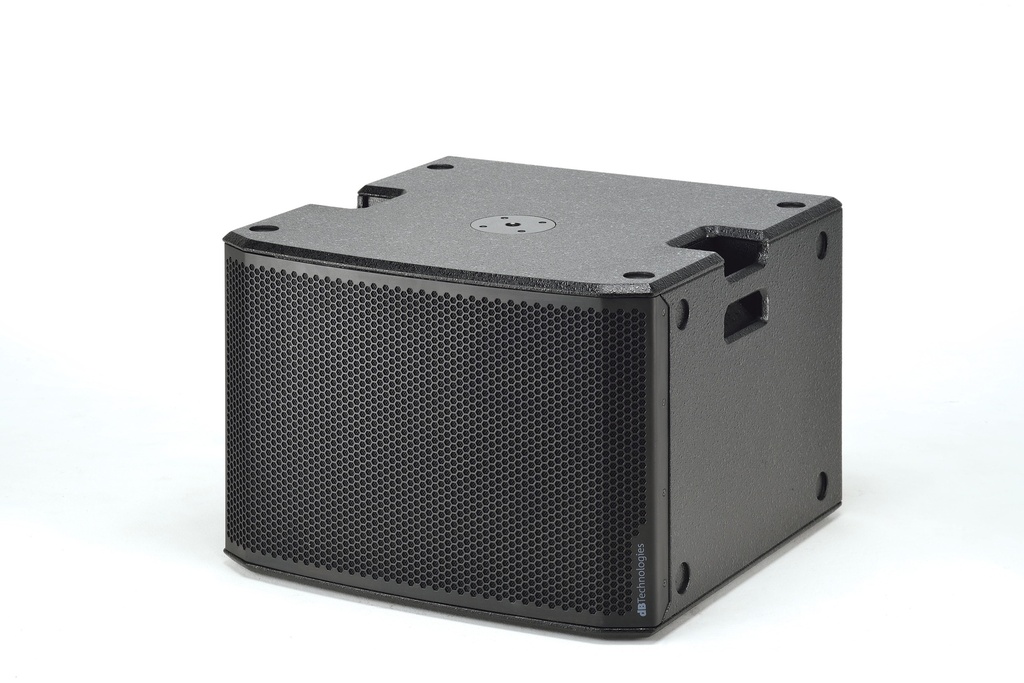

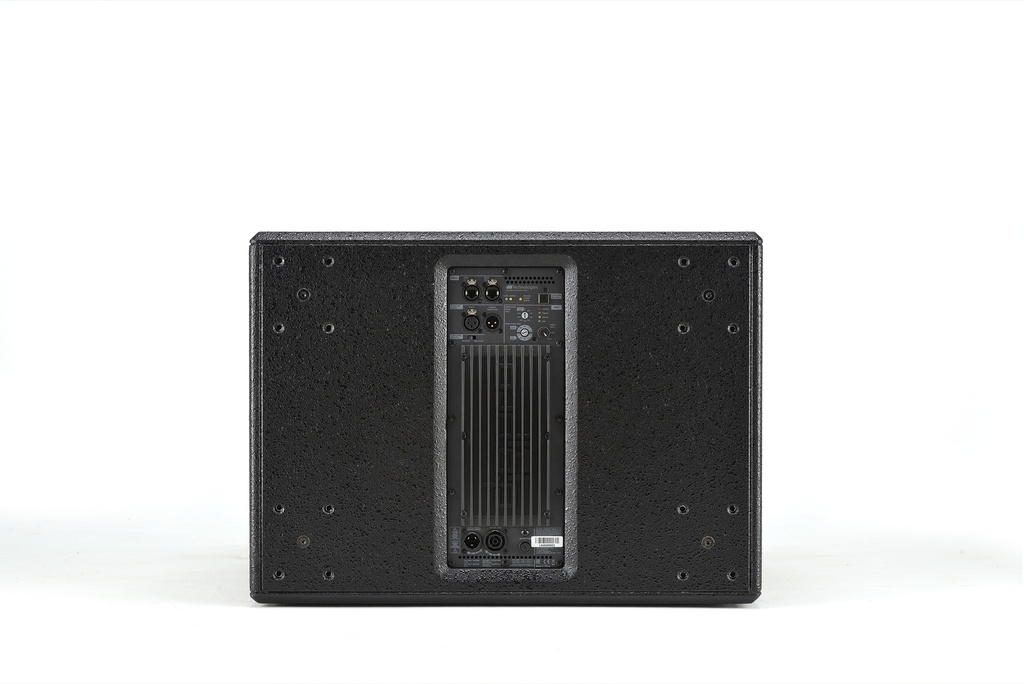

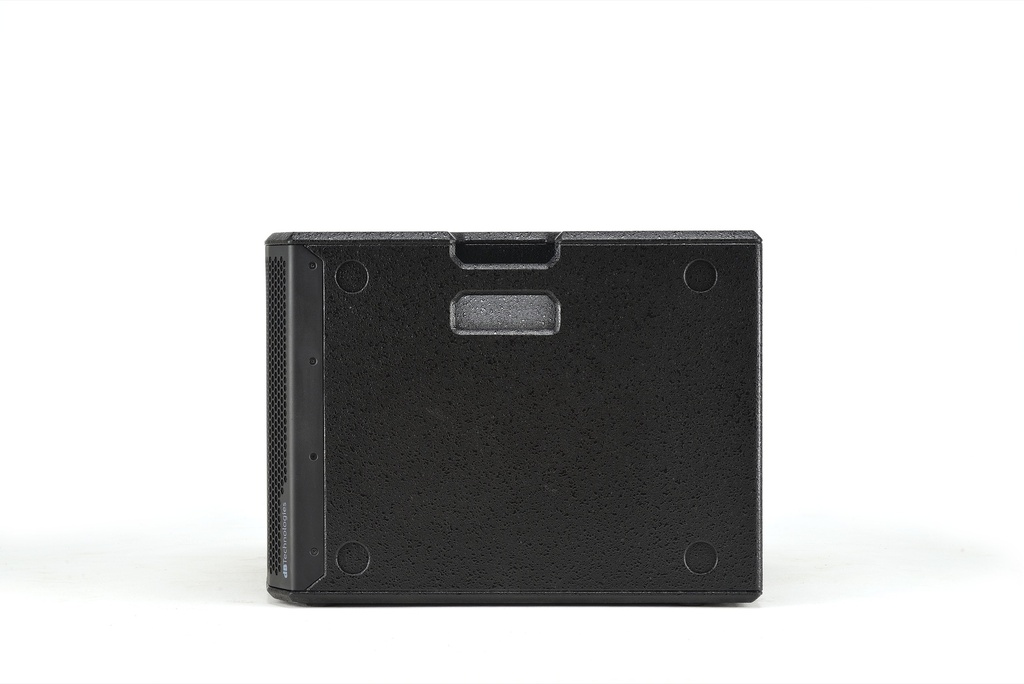

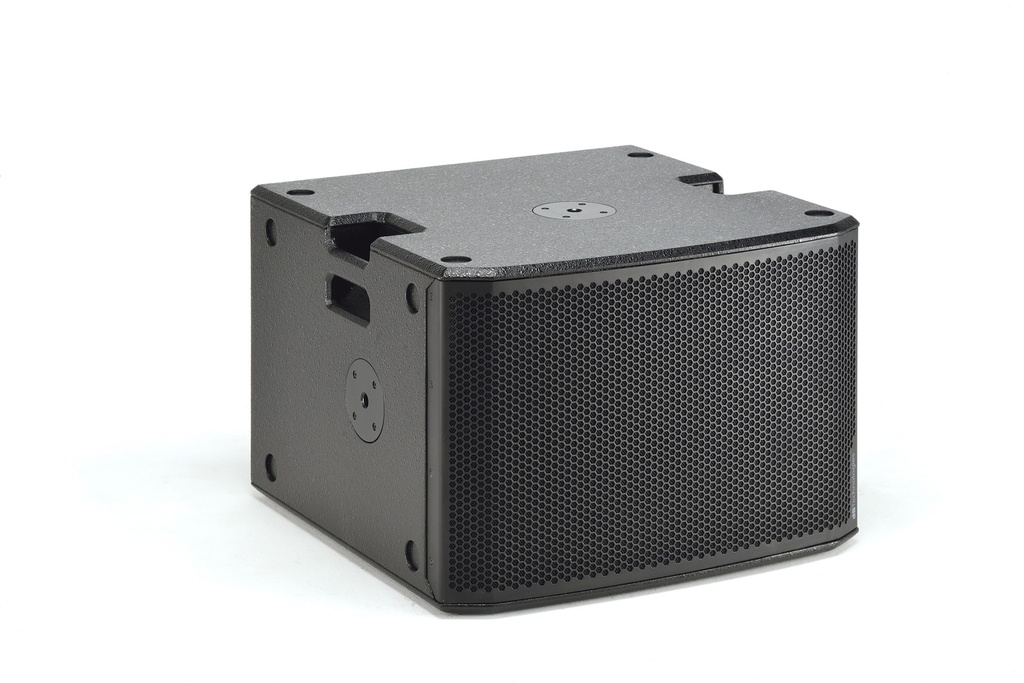

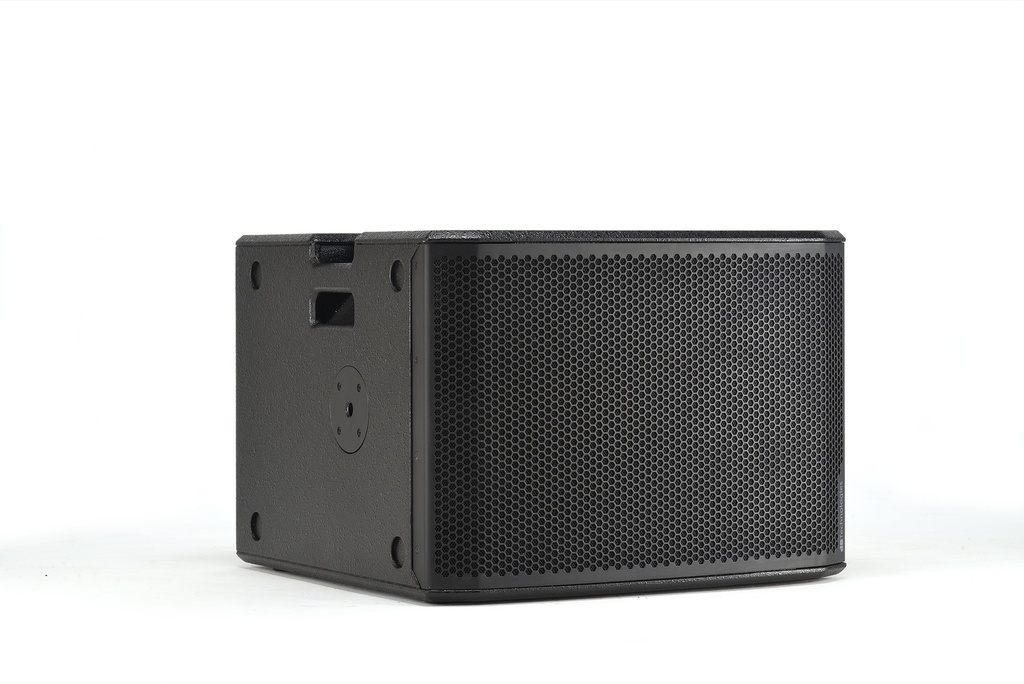

The robust plywood cabinet encases high-end performances in limited weight (34.8 kg) and features 2 integrated handles on the top edges, while the back side is equipped with wheels mounting for smooth transportation.

What is more, being designed for both vertical or horizontal use, 2 M20 mounts on the top and side panels permits any type of full-range speaker led using a standard M20 threaded pole

Technical Data
Speaker Type Active Subwoofer
Acoustical data
Frequency Response [-10dB] 45 to cut frequency (Xover dependent)
Max SPL (1 m) 133 dB
LF 15"
LF Voice Coil 4"
Amplifier
Amp Technology Digipro G3
Amp Class Class D
Peak Power 1800 W
Processor
Controller 28/56 bit DSP
AD/DA Converter 24 bit/48 Hz
Limiter Peak, Thermal, RMS
Crossover Frequency Variable (70Hz - 80Hz - 90 Hz - 100Hz - 110 Hz

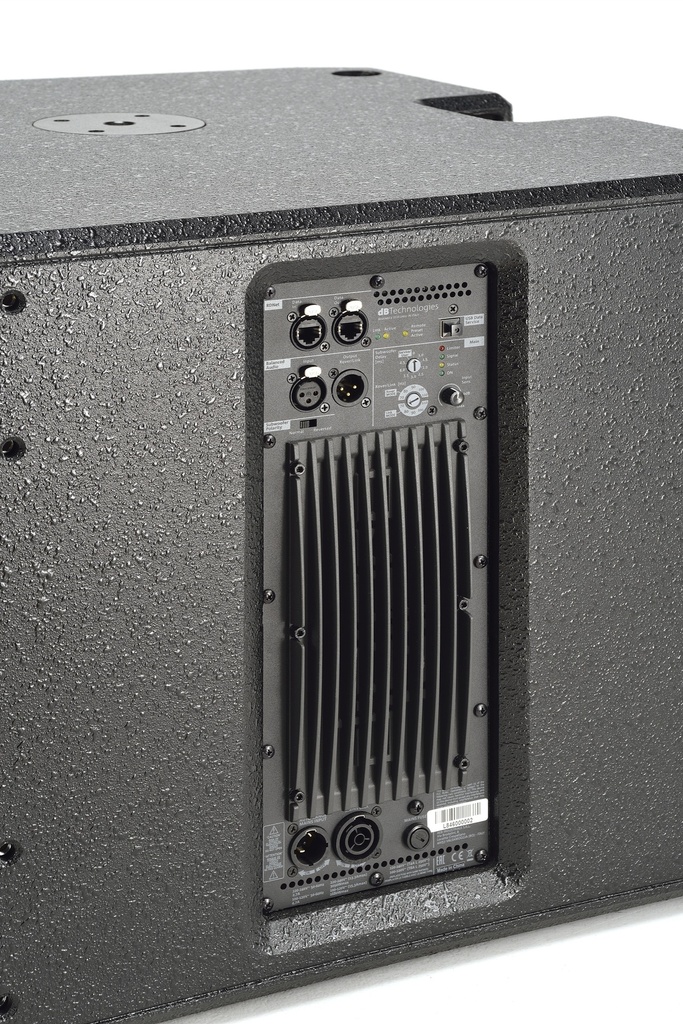

Controls 1x Subwoofer Atteniation Control1x Delay Rotary 1xXover Rotary 1x Polarity Switch
Input
Signal Input 1x XLR female1x USB (data service)
Signal Output 2x XLR male
Mechanics
Housing Plywood
Handles 2 (1x side)
Pole Mount 2x M20 (1 on top + 1 on side)
Width 620 mm (24.4 in)
Height 457 mm (17.9 in)
Depth 620 mm (24.4 in)
Weight 34.8 kg (76.7 lbs)
