dB Technologies

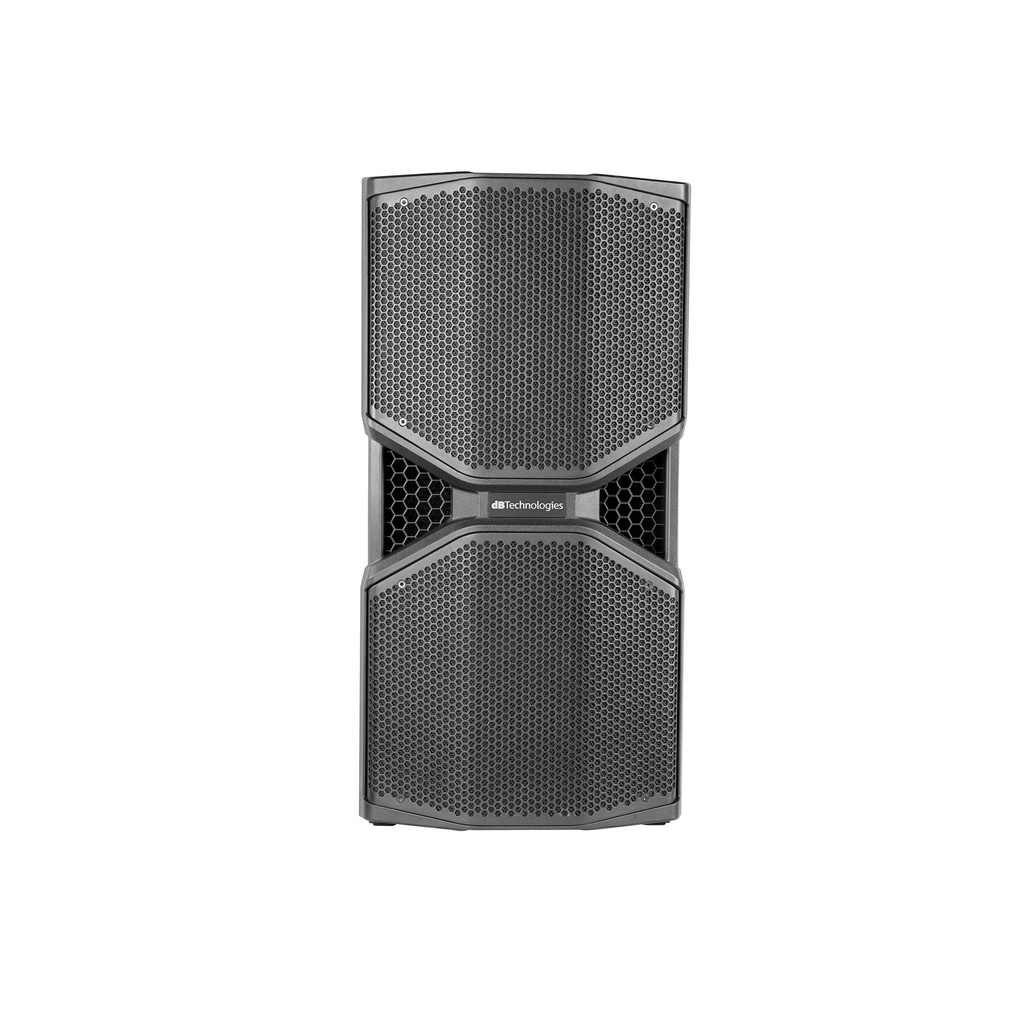

OPERA REEVO 212

https://www.mgmaudio.ch/web/image/product.template/2517/image_1920?unique=80b5045

Active, Quasi 3-way speaker, 2x12"/1", 1050W RMS

CHF 1'244.22 1244.22 CHF CHF 1'244.22 Inklusive MwSt.

CHF 1'244.22 Inklusive MwSt.

Preis auf Anfrage

Auf Lager

Diese Kombination existiert nicht.

Geschäftsbedingungen
Versand: 2-3 Arbeitstage

OPERA REEVO 210 and OPERA REEVO 212 deliver an astonishing sound pressure level with touring-grade sound definition and a remarkable low-end extension in a compact and freshly designed enclosure accessible to anybody who wants great sound anywhere.

The Quasi 3-way configuration delivers a vigorous yet pristine sound. This bold acoustic design is in-fact unparalled in its category, inspired by dBTechnologies touring series, marks a clear step-up In the longest running and most appreciated dBTechnologies active speaker series of all times.

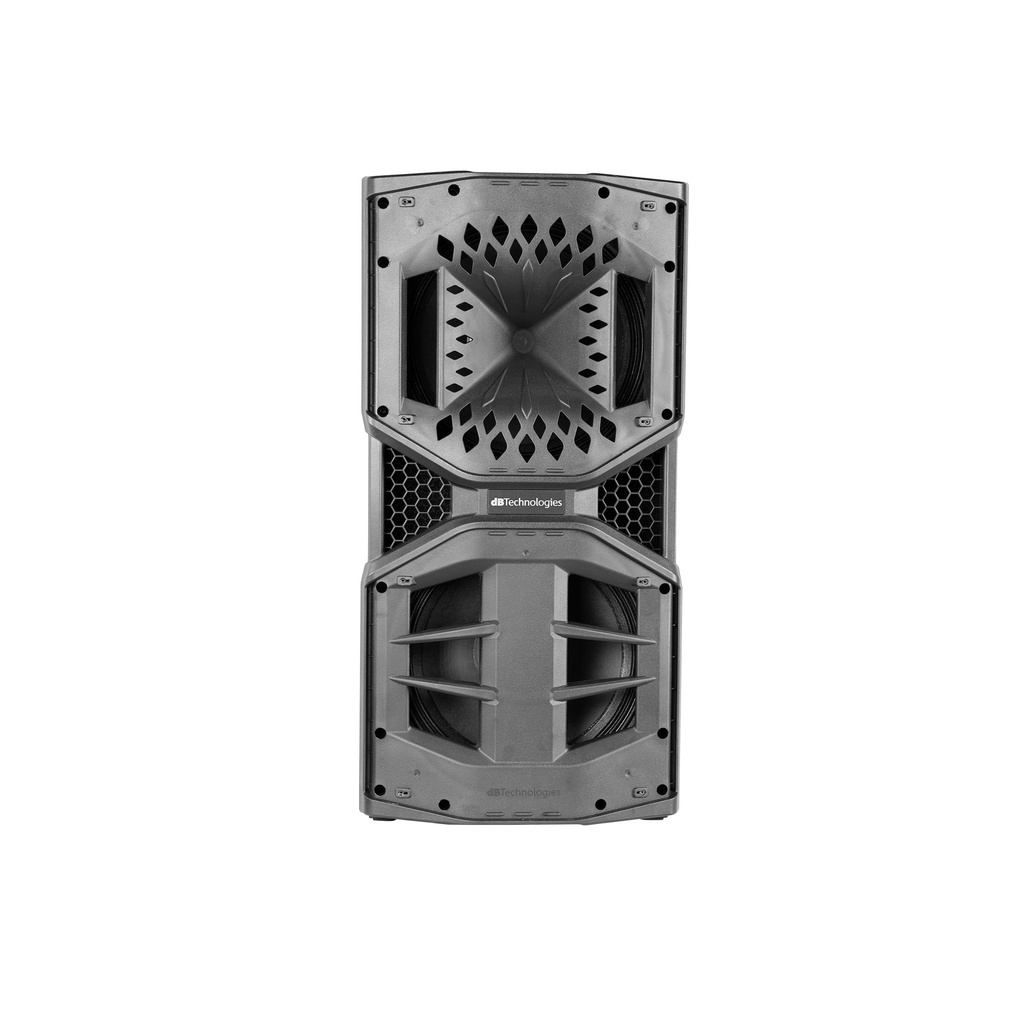

Opera Reevo translates the mix in an impeccable way, adapting the speaker to complex musical material especially when rich in the midrange region, where separation and clarity can really make a difference in the outcome of any performance.This is granted by the coaxial acoustic design, featuring a front Integrated HF horn with diamond-shaped cutouts with the aim of rendering comb filtering-free high frequency reproduction, and at the same time of improving the upper woofer’s efficiency. Another phase plug enhances the lower woofer efficiency: this acoustic device greatly improves the transient response and overall behavior of this transducer. Low noise reflex ports are integrated in the front molding. The honeycomb structure inside the ports helps reducing wind turbulence caused by the high airflow of this high SPL powerhouse.  Both models are equipped with a Class-D Digipro G2 amplifier which delivers an impressive 1050 W RMS and 2100 W Peak power, and features advanced DSP processing where FIR linear phase filters allow the systems to achieve a coherent audio performance, rendering an uniform and crystal-clear sound. Moreover, Opera Reevo offers factory-tailored voicing presets to adapt to multiple scenarios, including when in need of a wedge stage monitor or a completely standalone full-range PA system.

Technical Data
Speaker Type Quasi 3-Way Active Speaker
Acoustical data
Frequency Response [-10dB] 48 - 20.000 Hz
Frequency Response [- 6dB] 52 - 19.200 Hz
Max SPL 133 dB
HF 1" Exit CD, 1.75" v.c.
Type HF Compression driver
Horizontal Directivity 100°
Vertical Directivity 80°
Horn Asymmetrical Horn
LF 2x 12" Neo, 2.5" v.c.
Amplifier
Amp Technology Digipro G2 with SMPS
Amp Class Class D
RMS Power 1050 W (525W + 525W)
Peak Power 2100 W (1050W + 1050W)
Processor
Controller DSP 28/56 bit
AD/DA Converter 24 bit/48 KHz
CrossOver Frequency 1260 Hz
Limiter Peak, RMS, Thermal
Advanced DSP Functions Linear Phase FIR Filters
Input
Signal Input 1x Combo (XLR/Jack 6.3 mm) Line
Signal Output 1x XLR Male (True link)
Controls Gain (rotary)Preset (Flat, Playback, Wedge)
Mechanics
Housing Polyproylene
Grille Full grille
Handles 1 on left Side, 1 on Top
Rigging Points 2x M10 on Top + 1x M10 on Back
Pole Mount D36 mm
Width 345 mm (13.58 in)
Height 690 mm (27.17 in)
Depth 376 mm (14.8 in)
Weight 20.4 kg (44 lbs)
