dB Technologies

LVX-P5 / 8

https://www.mgmaudio.ch/web/image/product.template/2292/image_1920?unique=50dbe51

Passive 2- Way, 5/1", 8 Ohm, black

CHF 194.26 194.26 CHF CHF 194.26 Inklusive MwSt.

CHF 194.26 Inklusive MwSt.

Preis auf Anfrage

Auf Lager

Diese Kombination existiert nicht.

Geschäftsbedingungen
Versand: 2-3 Arbeitstage

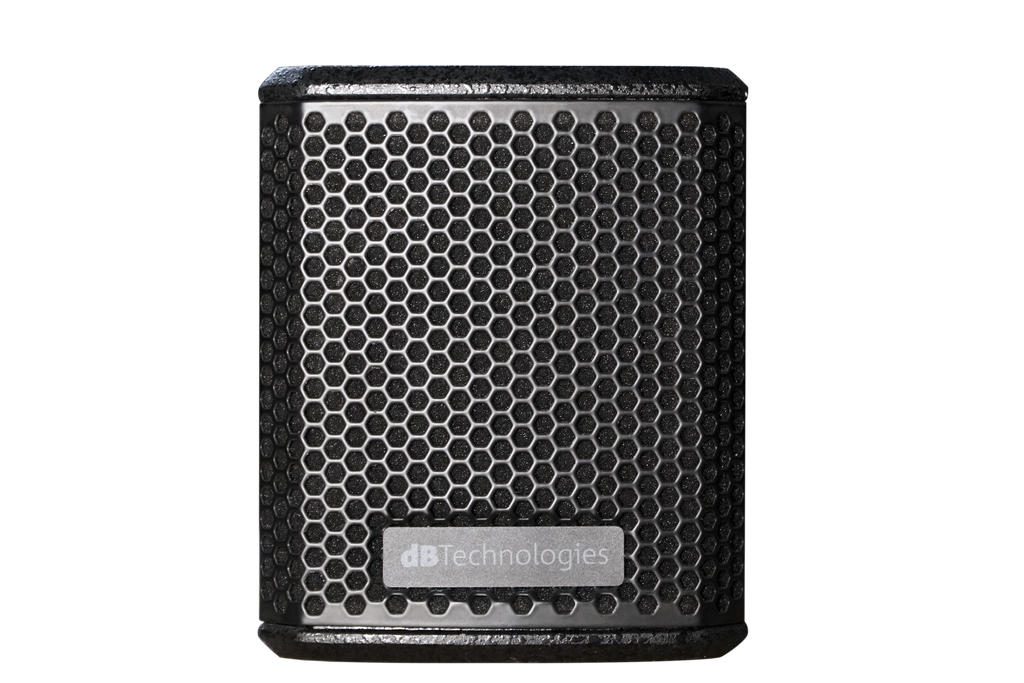

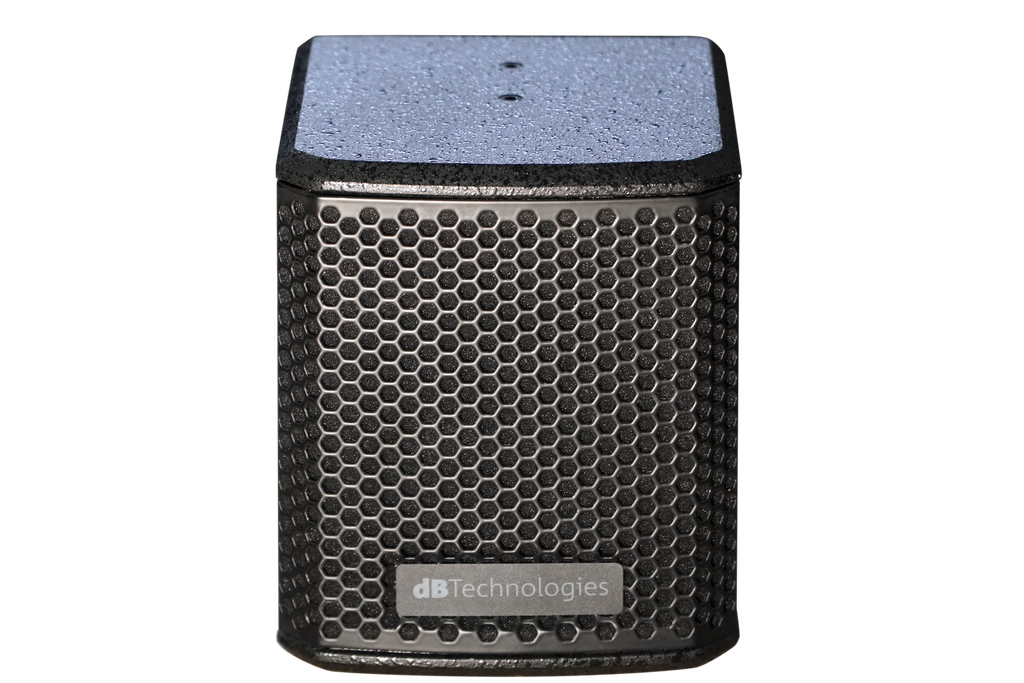

LVX P5 is a passive speaker equipped with a full-range single transducer (5” LF and 1” HF).

The most efficient acoustic design, allowing an extended coverage pattern (135°x135°) and a vigorous SPL up to 115 dB, makes this mini full range system the perfect solution to render speech or background music in small venues.The solid plywood enclosure features a clean, install-friendly design with rigging points on top and side to ease installation on ceiling or wall via the included bracket. LVX P are equipped with Phoenix connectors. 8 or 16 Ohm versions are available for use with dBTechnologies ATI amplifiers. The cabinet comes in black or white, just like all other cabinets in LVX series.

Technical Data
Speaker Type Full-range wooden passive loudspeaker
Acoustical data
Impedance 8 Ohms or 16 Ohms
Frequency Response [-10 dB] 100 Hz -20 kHz
Max SPL 115 dB
Directivity 135x135°
LF 5", 1" v.c.
Peak Power Handling 120 W
Input
Connector Type 2-pole Phoenix connector type
Mechanics
Housing Plywood
Accessories Wall/ceiling mounting bracket (included)
Width 165 mm (6.49 in)
Height 198 mm (7.79 in)
Depth 175 mm (6.88 in)
Weight 2.2 kg (4.8 lbs)
