dB Technologies

IS-210L

https://www.mgmaudio.ch/web/image/product.template/2607/image_1920?unique=af8fcf1

Passive 2- Way Line-Array, 2x10/1,4", 8 Ohm, black

CHF 1'197.96 1197.96 CHF CHF 1'197.96 Inklusive MwSt.

CHF 1'197.96 Inklusive MwSt.

Preis auf Anfrage

Wird für Sie bestellt

Diese Kombination existiert nicht.

Geschäftsbedingungen
Versand: 2-3 Arbeitstage

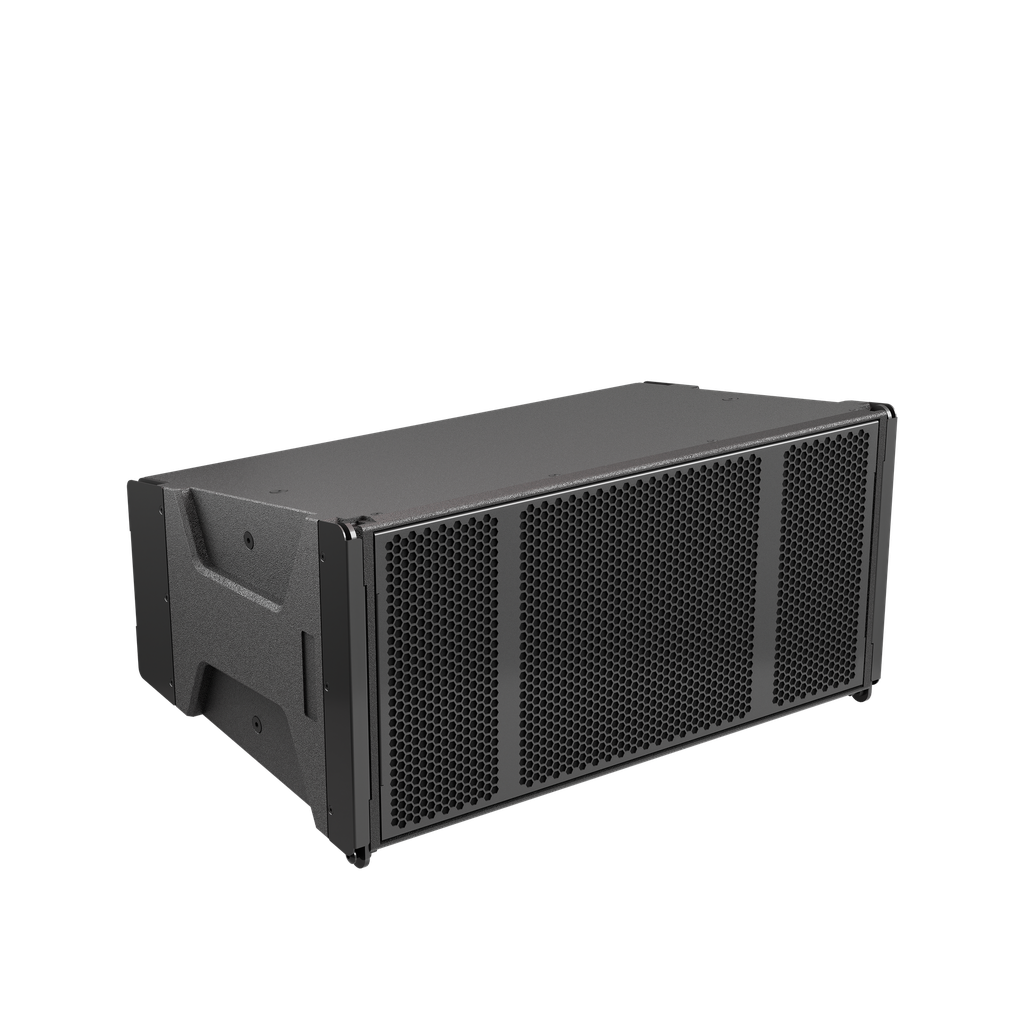

IS210L is the first IS line array dedicated to installations.

Designed with a symmetrical configuration with 2 10'' woofers and a 2.4'' driver on a waveguide, it is the first complete passive system bringing the capabilities of a high-quality line array to large environments such as arenas, performing arts center, houses of worship, multifunctional venues, clubs.

With a hanging system equipped with hidden and immediate mechanics, the system is easy to configure and has a minimal, elegant, and clean line array design.

Protected by a IP55 certification, IS210L is perfect for indoor and outdoor contexts. The variety of its connections allows all installers to benefit from maximum versatility and adaptability.

Technical Data
Speaker Type 2-way Passive Line Array Module
Acoustical data
RMS Power 400W (LF: 300W | HF: 100W)
Peak Power 800W (LF: 600W | HF: 200W)
Usable bandwidth [-10 dB] 57 Hz - 18,700 Hz
Frequency Response [-6 dB] 65 Hz - 17,500 Hz
Impedance 8 Ohm
Sensitivity 1W@m 102.4 dB
Max SPL 133 dB
HF 1x 1.4" (exit), 2.4" v.c.
LF 2x 10", 2.5" v.c.
Dispersion 90x15° [H x V]
X-Over Frequency 900 Hz (internal X-Over)
Input
Connections Screw terminal block (LF+ | LF- | HF+ | HF-)
Mechanics
Housing Plywood, water-painted coating
Rigging points flyable with bracket
IP rating IP 55
Width 675 mm (26.57 in)
Height 310 mm (12.2 in)
Depth 400 mm (15.75 in)
Weight 29.2 Kg (64 lbs)
