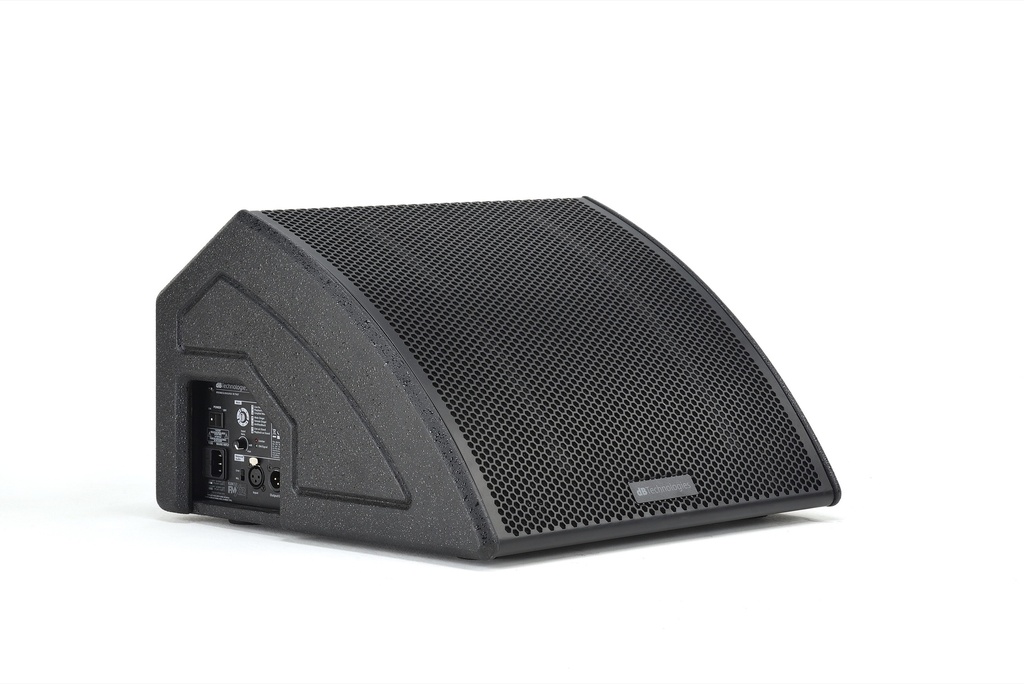

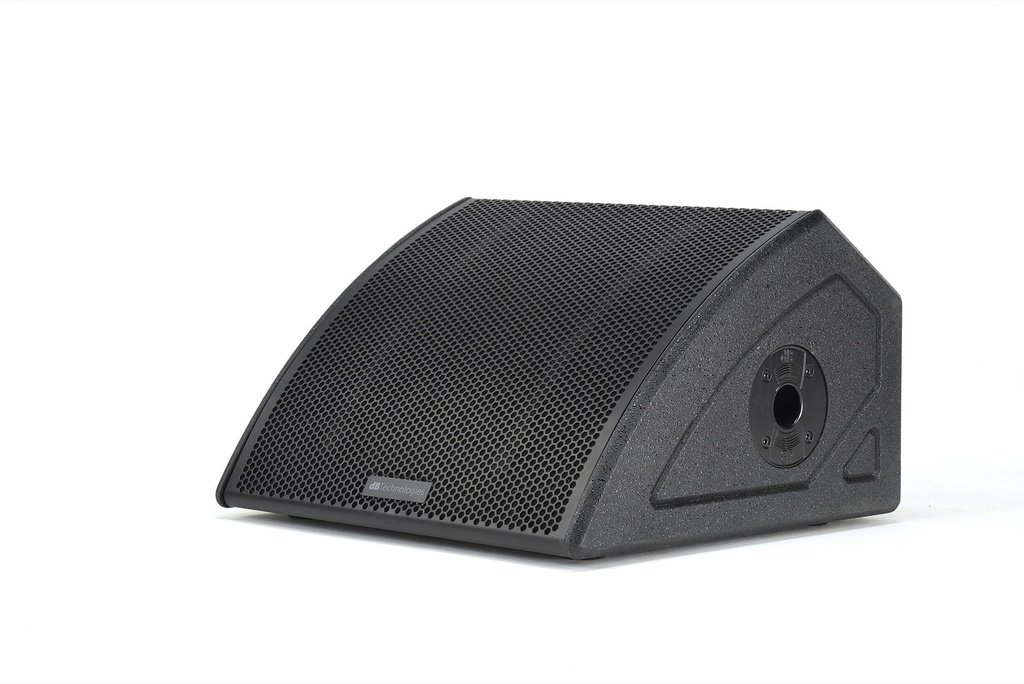

dB Technologies

FMX-12

https://www.mgmaudio.ch/web/image/product.template/2421/image_1920?unique=08fa581

Active 2- Way Stage Monitor, Coax, 12/1",600W

CHF 624.42 624.42 CHF CHF 624.42 Inklusive MwSt.

CHF 624.42 Inklusive MwSt.

Preis auf Anfrage

Auf Lager

Diese Kombination existiert nicht.

Geschäftsbedingungen
Versand: 2-3 Arbeitstage

FMX is an active 2-way coaxial stage monitor series encompassing 3 models (10,12 and 15”) equipped with 400 RMS (for FMX 10) or 600 RMS (for FMX 12 and 15) Class D amplifiers.

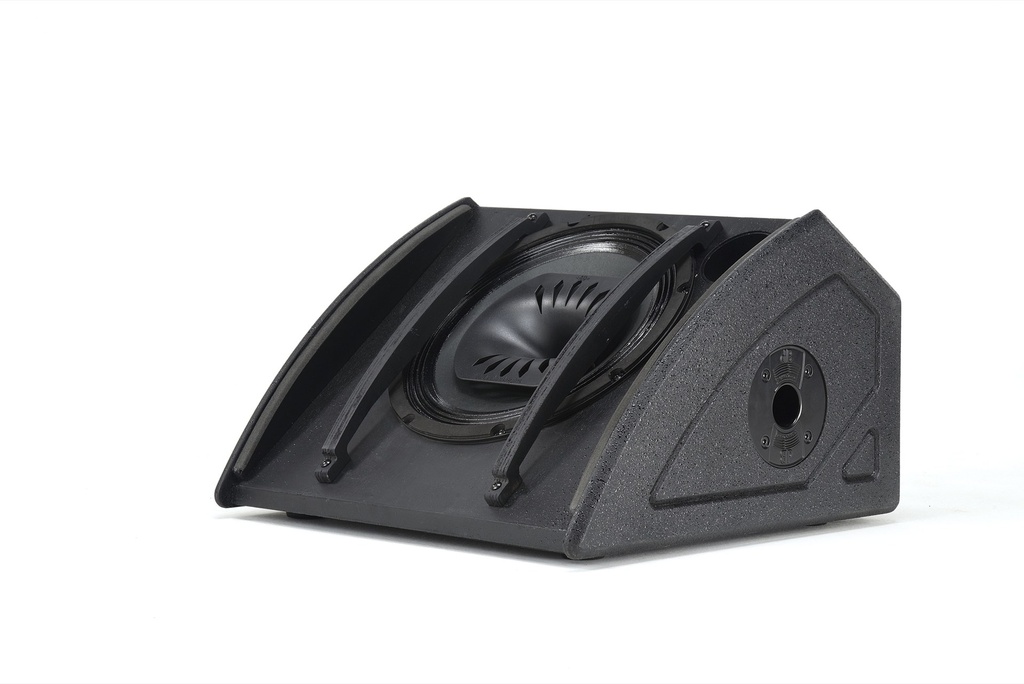

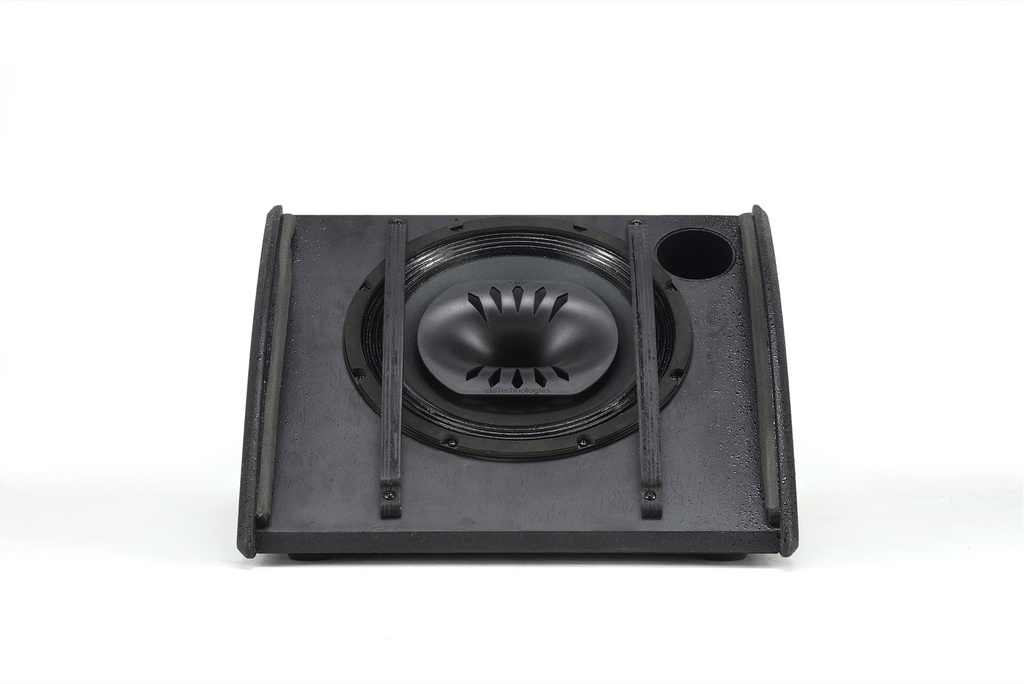

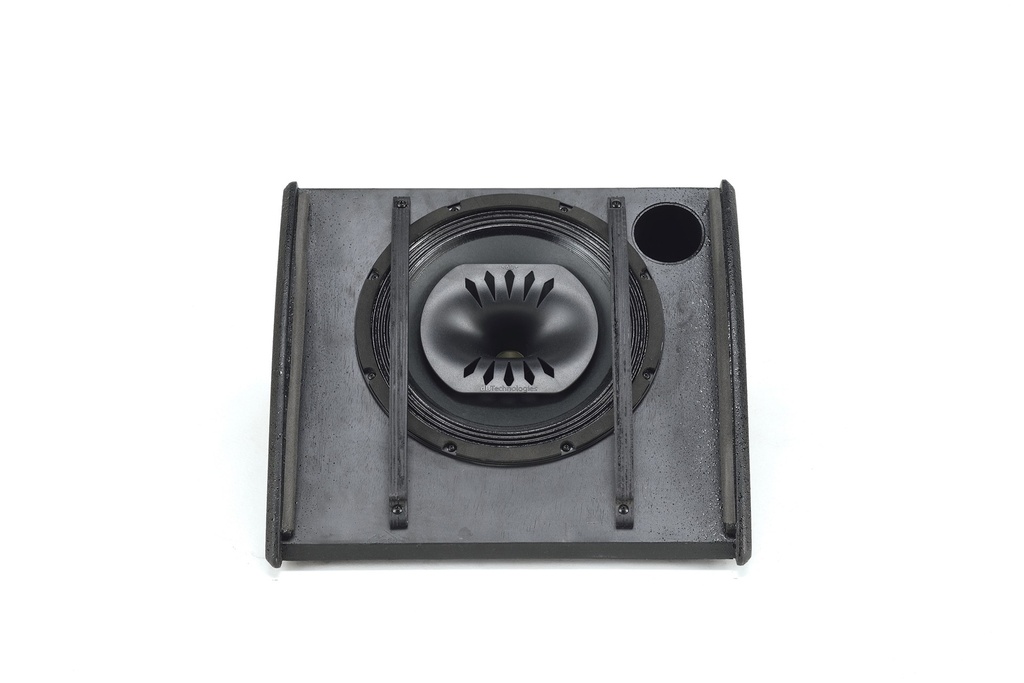

The wedge’s coaxial acoustic design, together with its custom horn design and its advanced DSP featuring linear phase FIR filters, provides an even, highly-intelligible sound.

In facts, FMX’s horn design allows a very precise dispersion pattern (60° horizontal and 90° vertical) which can be easily reversed (90° horizontal and 60° vertical) by rotating the horn, adapting the wedge to the habits of the user.

Moreover, 8 on-board presets optimize EQ for different needs making FMX a skilful yet easy-to-use tool for performers of every kind.

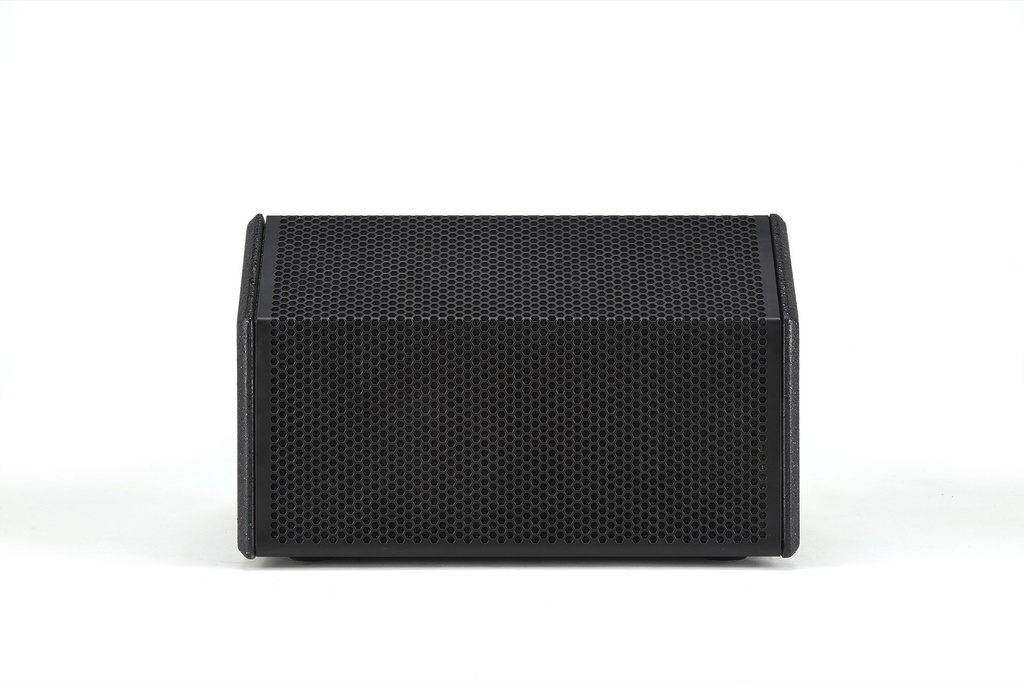

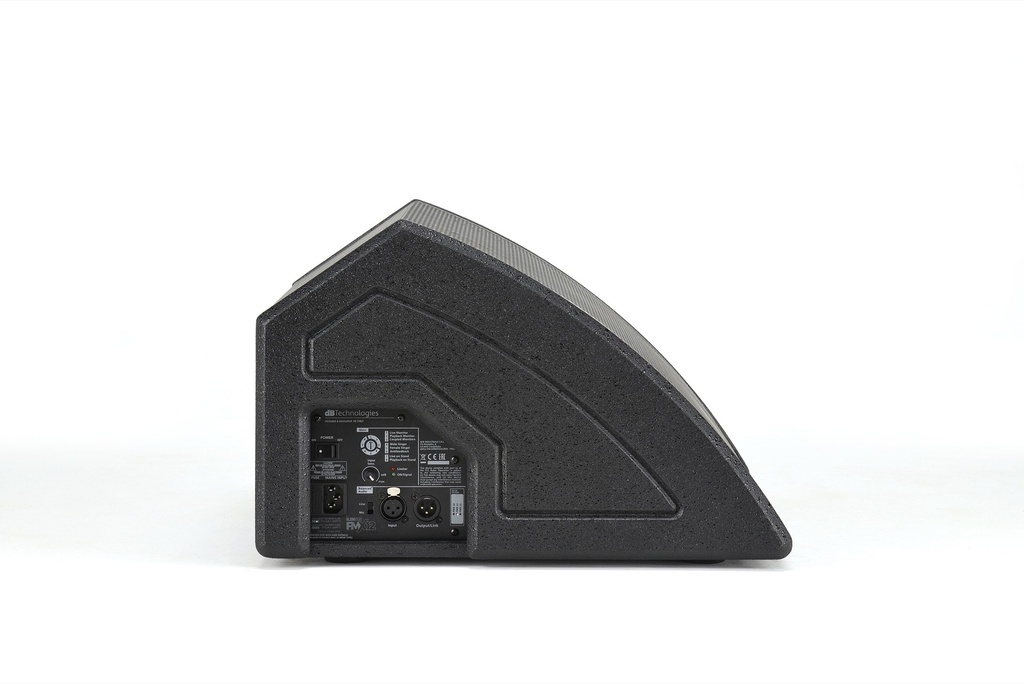

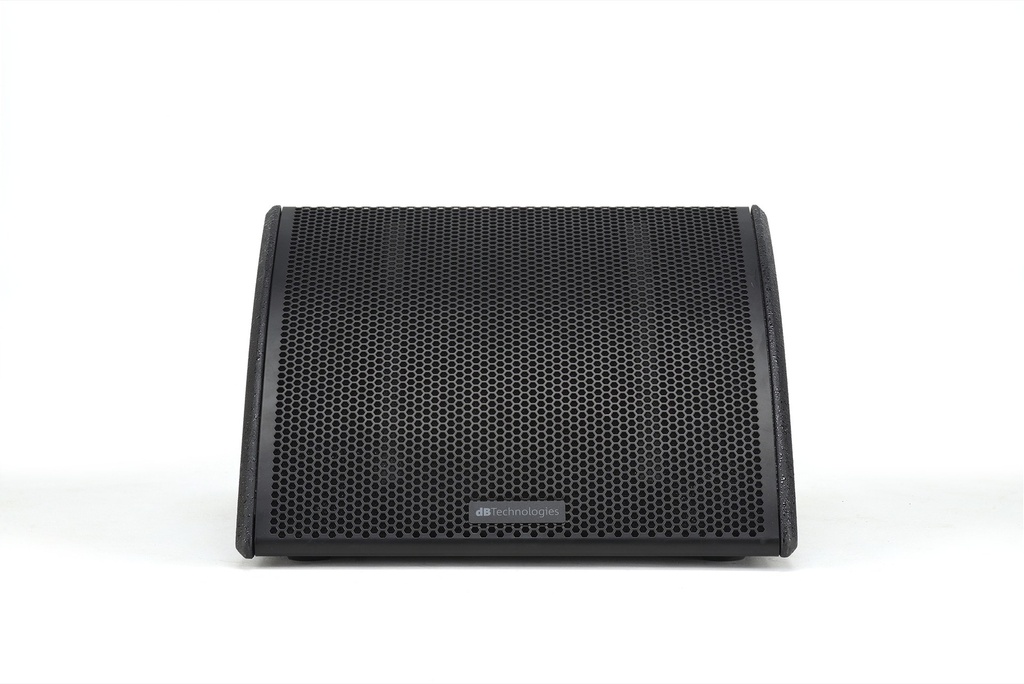

All wedges of the series feature a peculiar front-rear grille design, a single handle integrated on the bottom side of the plywood cabinet and a 36mm pole mount on side panel which further enhance FMX versatility.

Technical Data
Speaker Type 2-Way Active Coaxial Stage Monitor
Acoustical data
Frequency Response [- 10 dB] 52 - 19.000 Hz
Max SPL 128 dB
HF 1", 1.3" v.c.
Directivity 60°X90°
Horn Rotatable
LF 12", 2" v.c.
Amplifier
Amp Class Class D
Peak Power 1200 W
Processor
Controller DSP 28/56 bit
AD/DA Converter 24 bit/48 kHz
System Presets 8 presets
Limiter Peak, RMS, Thermal
Advanced DSP Function FIR Filters
Crossover Frequency 1740 Hz
Slope LF/HF 24 dB/oct
Mechanics
Housing Plywood
Housing Design Multifunctional
Handles 1 integrated on bottom side

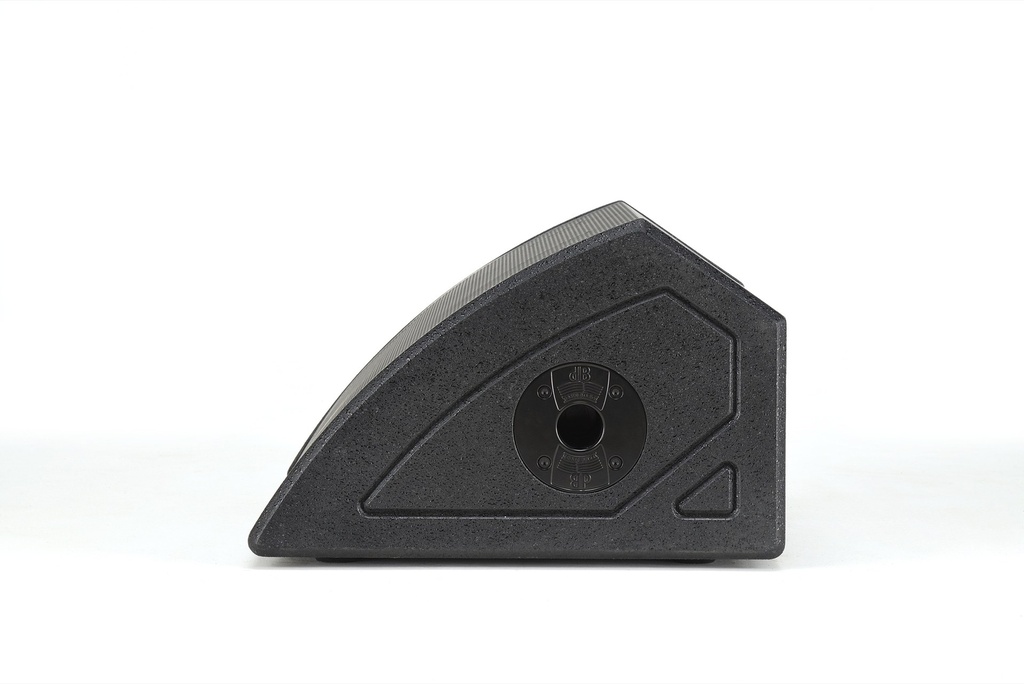

Pole mount 36 mm
Width 465 mm (18.30 in)
Height 297 mm (11.69 in)
Depth 444 mm (17.48 in)
Weight 13.9 kg (30.6 lbs)
