dB Technologies

DVA-MINI G2

https://www.mgmaudio.ch/web/image/product.template/2575/image_1920?unique=885830b

Active 2- Way 2x6½/2x1"/passive 2x6½/2x1"/400W RMS

CHF 1'660.50 1660.5 CHF CHF 1'660.50 Inklusive MwSt.

CHF 1'660.50 Inklusive MwSt.

Preis auf Anfrage

Wird für Sie bestellt

Diese Kombination existiert nicht.

Geschäftsbedingungen
Versand: 2-3 Arbeitstage

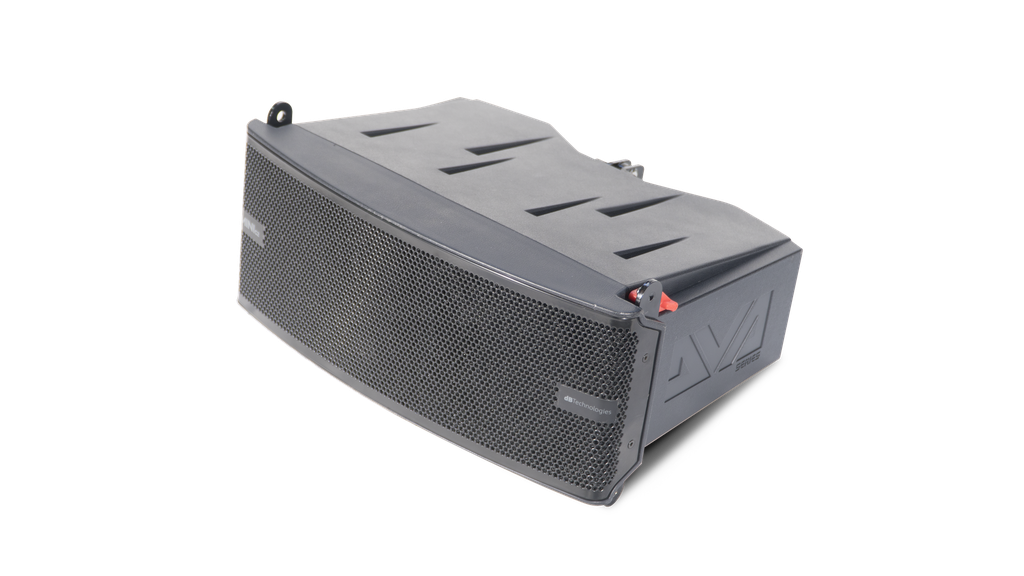

dBTechnologies introduces the new generation of its flagship small format 2-way active line array DVA MINI: an incredibly versatile system for both portable and permanent installation solutions.
Technical Data
Speaker Type 2-Way Active Line Array Module
Acoustical data
Usable Bandwidth [-10 dB] 75 - 20.000 Hz
Frequency Response [-6 dB] 80 - 19.000 Hz
Max SPL 131 dB per unit
HF 2x 0.75"
Type HF Neodymium
Voice Coil HF 1"
LF 2x 6.5"
Type LF Neodymium
Voice Coil LF 1.75"
Directivity (HxV) 15° x 100°
Amplifier
Amp Technology Digipro® G3
Amp Class Class D
RMS Power Amp 400 W
Cooling Convection
Processor
Controller DSP 56 bit
AD/DA Converter 24 bit/48 kHz
Controls 1x Rotary Encoder (8 presets)
Limiter Multiband, RMS/Peak, Thermal
Crossover Frequency LF-HF 1900 Hz
Slope LF-HF 24 dB/Octave
Advanced DSP functions Linear Phase FIR Filters
Input
Signal Input 1x XLR fem, Bal.
Signal Output 1x XLR male, Bal.
Power Supply 400W SMPS with PSU Auto-range (110V~ and 220V~)
Power Socket 1x PowerConTRUE1 In 1x PowerConTRUE1 Out
Mechanics
Housing Polypropylen PP
Handles 2x back side
Fittings Integrated hardware with fast lock mechanics
Width 460 mm (18.1 in)
Height 190 mm (7.5 in)
Depth 345 mm (13.6 in)
Weight 8.4 kg (18.5 lbs)
