Void Acoustics

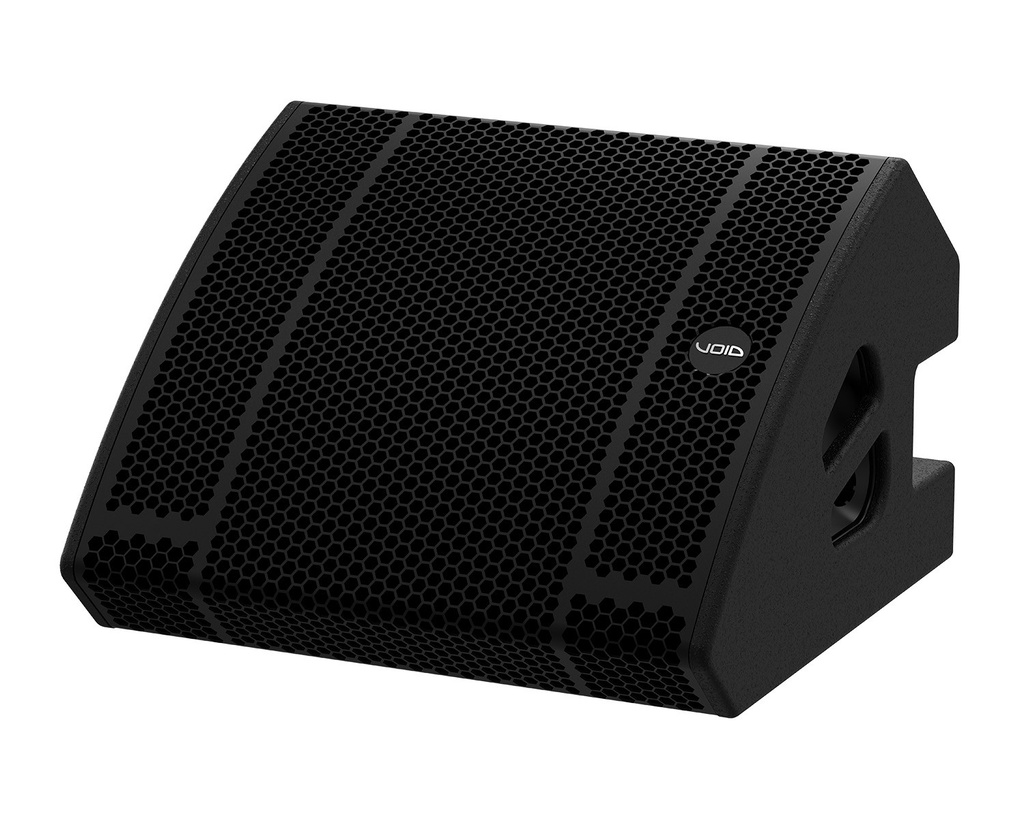

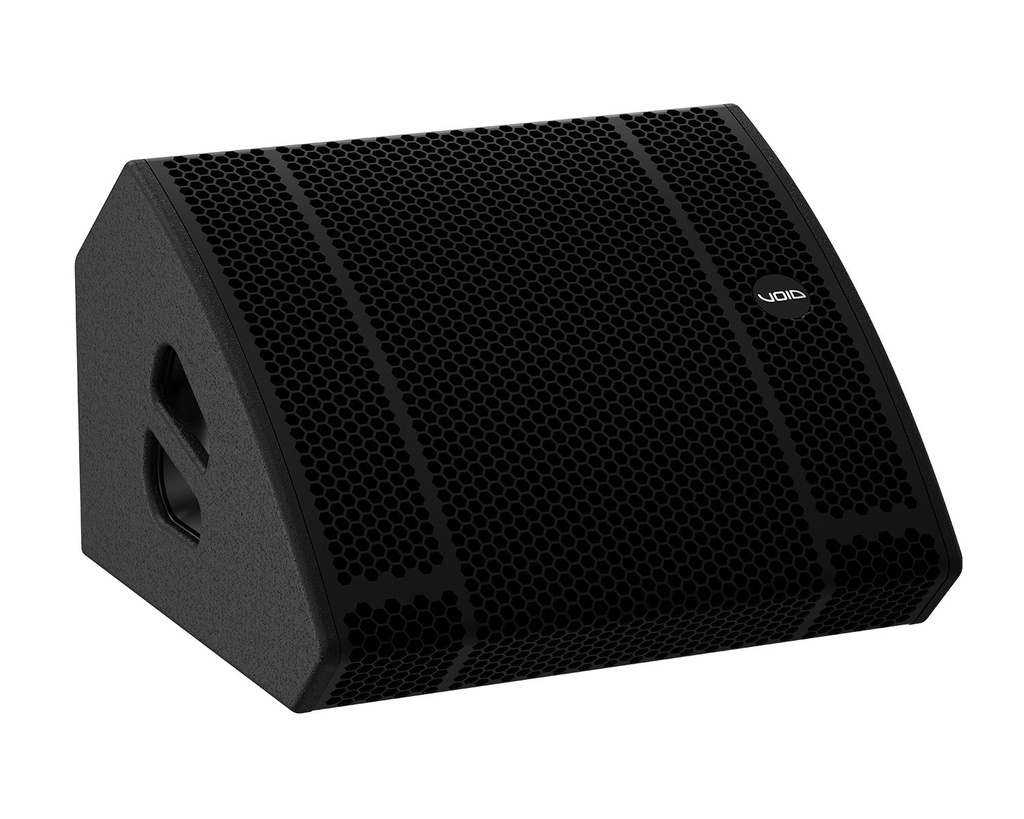

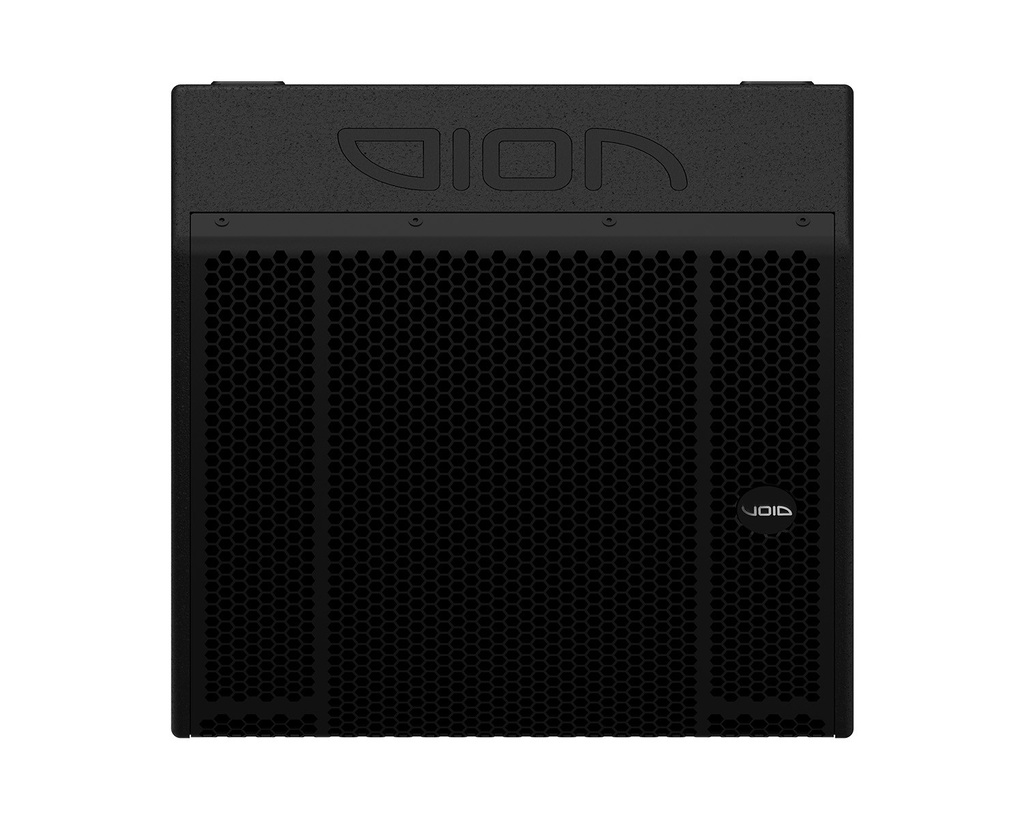

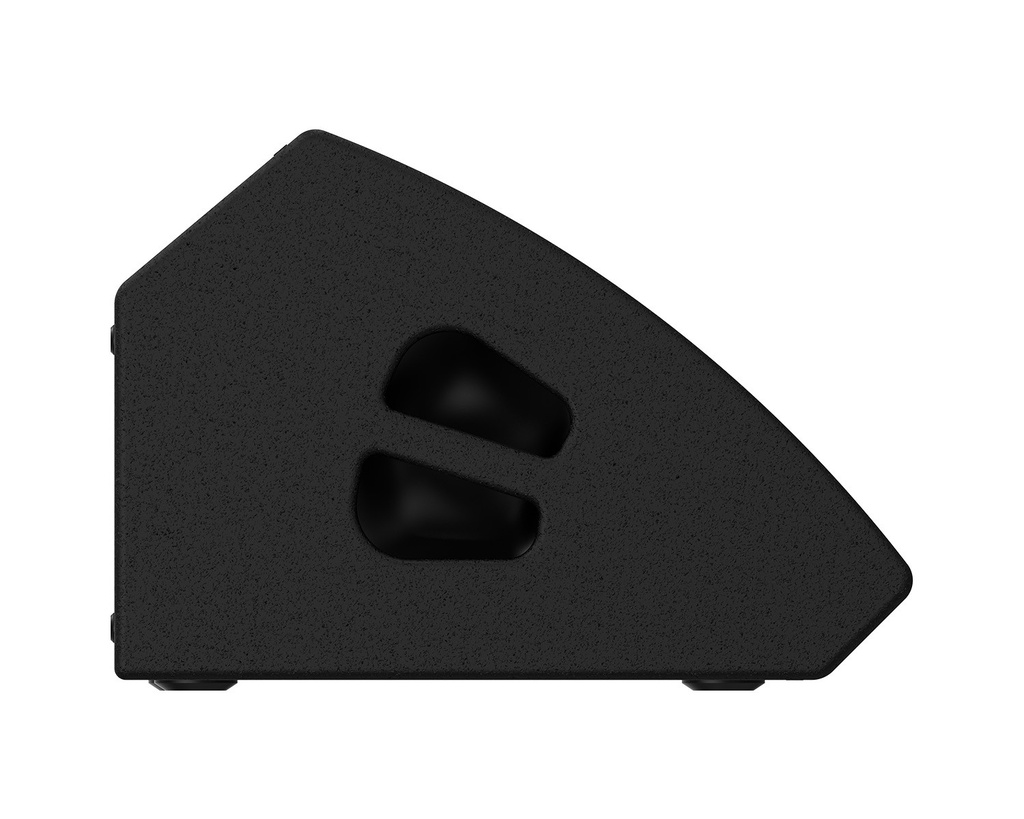

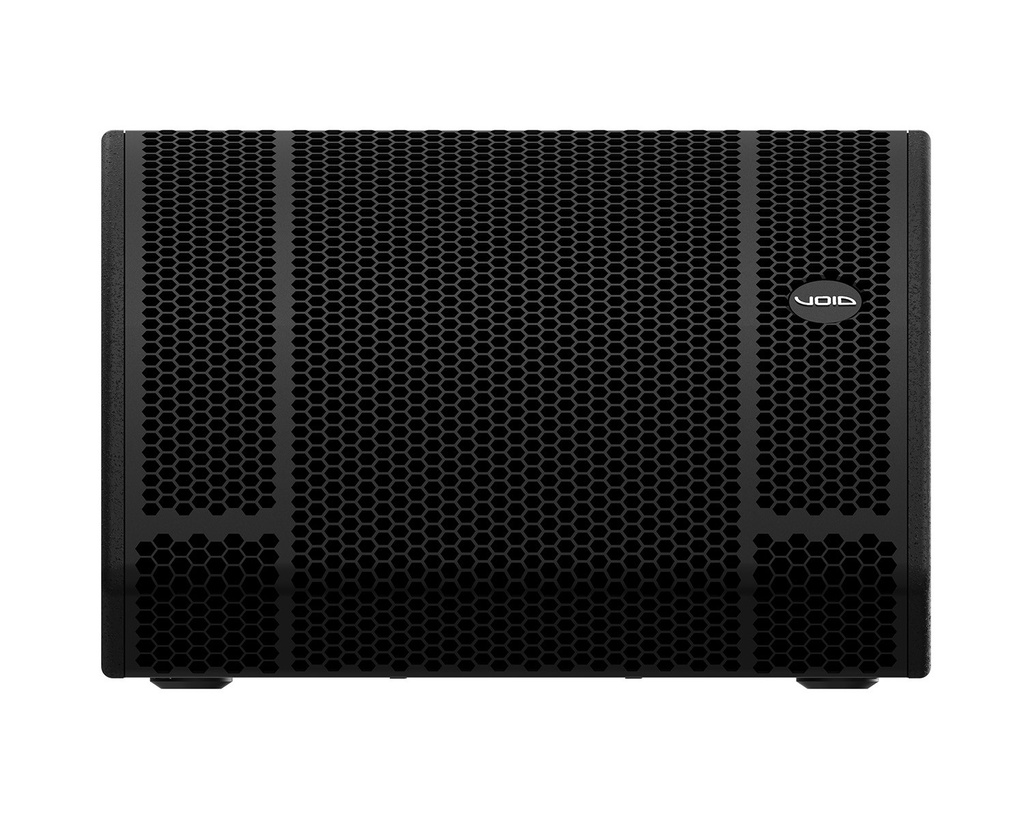

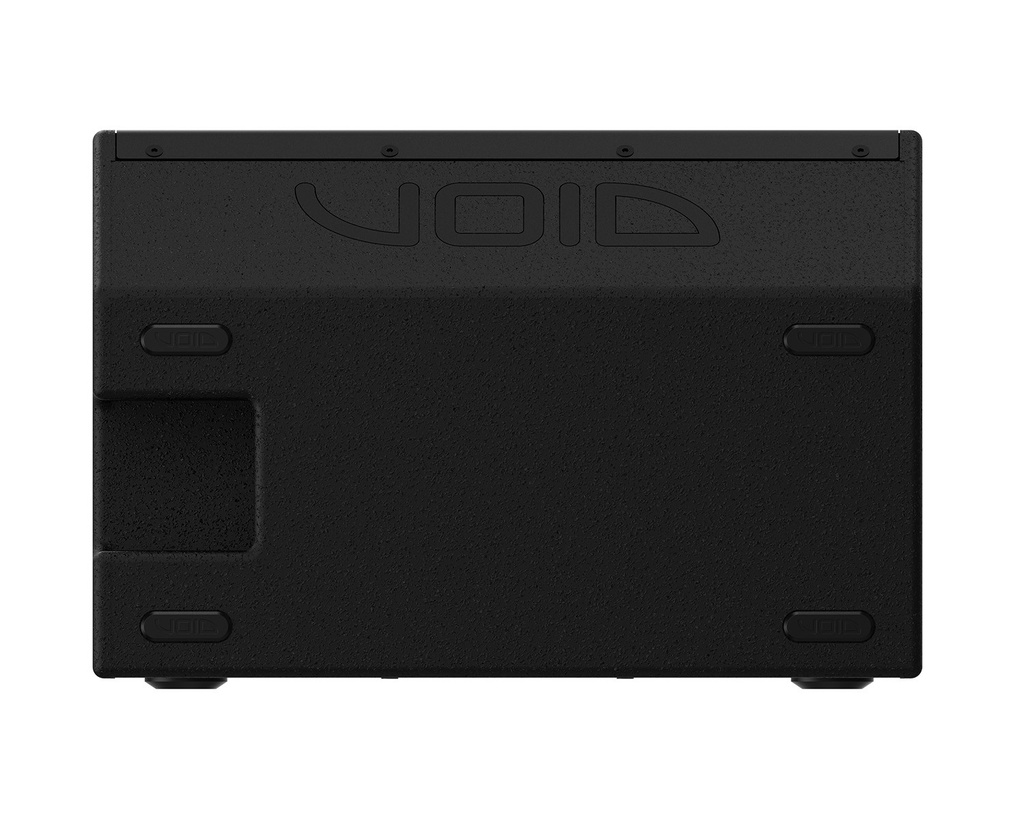

ArcM-15

https://www.mgmaudio.ch/web/image/product.template/1716/image_1920?unique=cff2c3e

Passive 2-way Wedge, 1x15"/1x1.4", 1x8ohm, 500W AES, 80x80°

CHF 0.00 0.0 CHF CHF 0.00 Inklusive MwSt.

CHF 0.00 Inklusive MwSt.

Preis auf Anfrage

Wird für Sie bestellt

Diese Kombination existiert nicht.

Geschäftsbedingungen
Versand: 2-3 Arbeitstage

Quick and Easy Rigging

The ArcM 15 is a versatile piece of equipment which utilises ergonomic designs, without sacrifice to the cosmetic shape. To allow for integration with existing infrastructure of rental partners and installers the ArcM 15 is unpowered

Enhanced Mobility and Manual Handling Features

Several steps have been taken to enhance the mobility and manual handling requirements, including ergonomically designed handles and truck-friendly packing dimensions. ArcM 15 is well-suited for festivals and events, theatres and live music venues.

Key Features

  • High power 15” + 1.4’’ coaxial neodymium transducer
  • Two wedge operating modes (stage and nearfield monitoring)
  • Integral pole mount for 35 mm diameter poles
  • Low profile design for cleaner stage lines
  • Ergonomically designed handles for easy manual handling
  • External dimensions optimised for truck packing
  • Hard-wearing polyurea finish

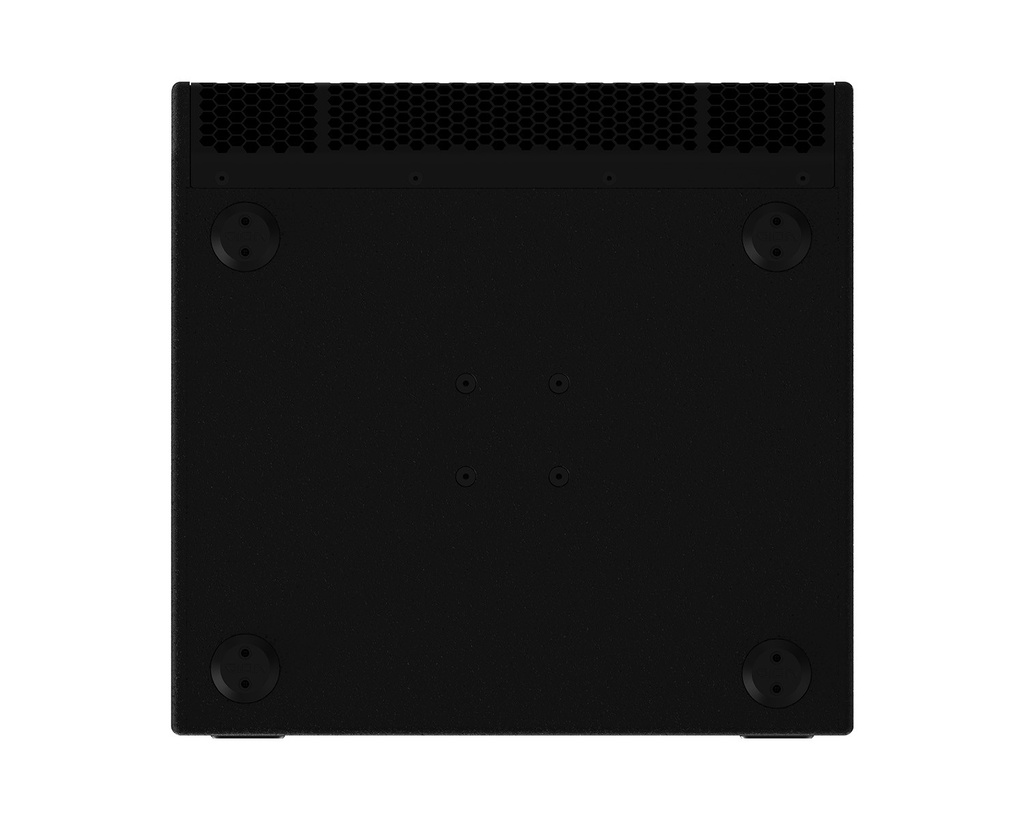

  • Type 80 rear mounting plate for wall/ceiling fixing

Full Specifications

  • Frequency response: 50 Hz - 18 kHz ±3 dB
  • Efficiency1: 100 dB 1W/1m
  • Crossover point: 1.2 kHz (passive)
  • Nominal impedance: 1 x 8 Ω passive, 1 x 8 Ω (LF) and 1 x 16 Ω (HF) active
  • Power handling2500 W AES
  • Maximum output3: 126 dB cont, 132 dB peak
  • Driver configuration: Coaxial 1 x 15” - 1 x 1.4” neodymium
  • Dispersion: 80°H x 80°V

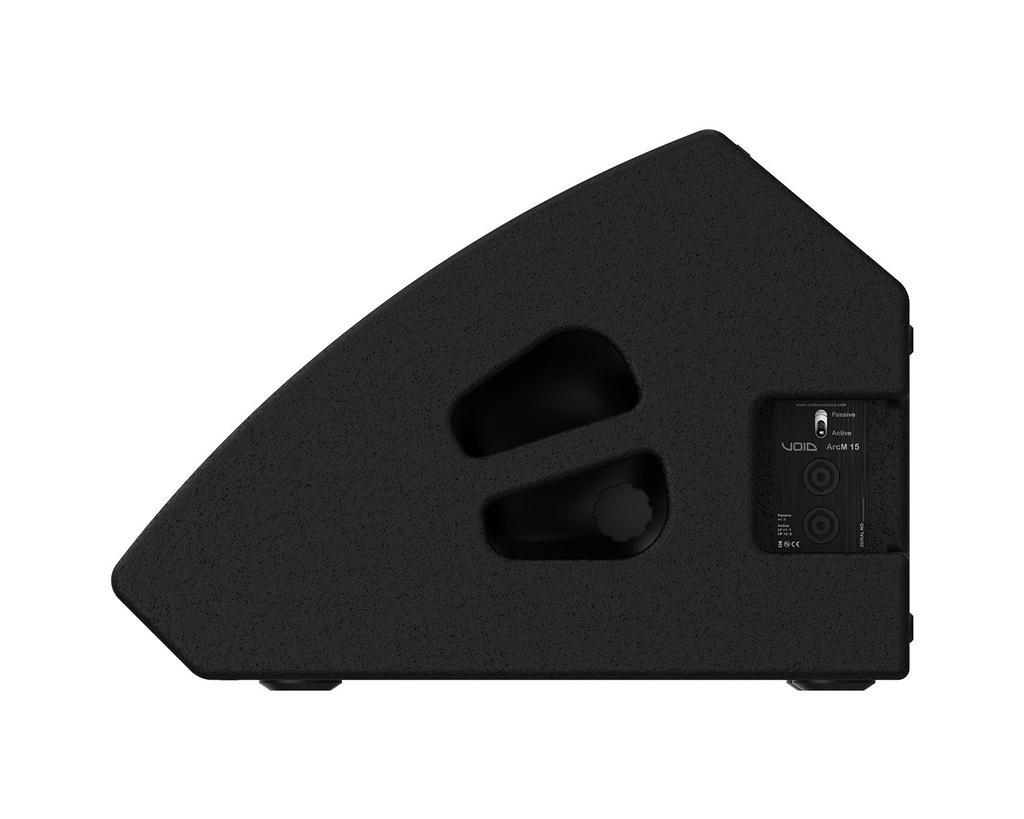

  • Connectors: 2 x 4-pole speakON™ NL4
  • Height: 371 mm (14.6”)
  • Width: 550 mm (21.7”)
  • Depth: 530 mm (20.9”)
  • Weight: 22.5 kg (49.6 lbs)
  • Rigging: Integral top hat, type 80 mounting bracket
  • Finish: Textured polyurea
