Void Acoustics

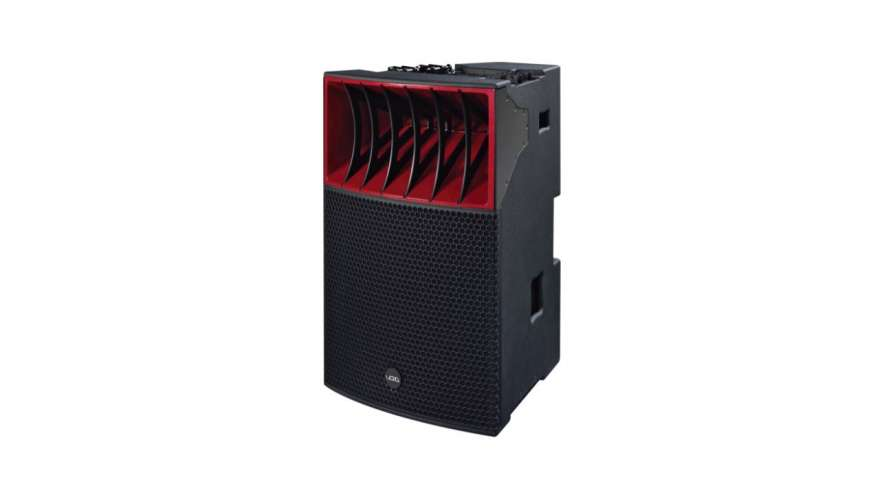

ARCLITE RG

https://www.mgmaudio.ch/web/image/product.template/1718/image_1920?unique=8912695

Passive 3-way, 15/4/2.5", 8/16ohm, 1190W AES, 35x60°, Rigging

CHF 0.00 0.0 CHF CHF 0.00 Inklusive MwSt.

CHF 0.00 Inklusive MwSt.

Preis auf Anfrage

Wird für Sie bestellt

Diese Kombination existiert nicht.

Geschäftsbedingungen
Versand: 2-3 Arbeitstage

Arrayable Point Source

Designed for pairing with Arcline 218 and 118 subwoofers, Arclite operates as a two-way active, three-way arrayable point source loudspeaker. A true point source alternative to the Arcline 8, offering scalability with maximum output and coherence.

Predictable and Reliable Behaviour

Tailored for audio integrators and sound engineers with a focus on touring. Guaranteeing predictable behaviour in the most challenging applications. An arrays dispersion and sound pressure levels can be configured precisely to best serve any demands.

Key Features

  • Two-way active, three-way arrayable point source
  • Ground stack or flying configurations available
  • Asymmetrical combination waveguide and horn optimised with FEA
  • Dual NL4 speakON™ connector with link out for quick and easy set up
  • Arrayable in vertical and horizontal configurations
  • Blanking plate for use without rigging

Full Specifications

  • Frequency response: 45 Hz - 18 kHz ±3 dB
  • Efficiency1: MHF: 113 dB 1 W / 1 m LF: 98 dB 1 W / 1 m
  • Nominal impedance: LF: 8 Ω, MHF: 16 Ω
  • Power handling2: LF: 1000 W, MHF 190 W
  • Maximum output3: 133 dB Cont, 139 Peak
  • Driver configuration: 1 x 15” LF, 1 x 4” MF, 1 x 2.5” HF
  • Dispersion: 35° H x 60° V (25° up - 35° down)
  • Connectors: 2 x 4-pole speakON™ NL4
  • Weight: 44 kg (97 lbs)
  • Enclosure: 15 mm birch plywood
  • Mounting: Ground stack or suspended
  • Finish: Textured ‘TourCoat’ polyurea
