Void Acoustics

ARCLINE 212

https://www.mgmaudio.ch/web/image/product.template/1722/image_1920?unique=9246498

Passive Sub, 2x12", 2 x 8ohm, 2 x 900W AES, Flyable, Touring

CHF 0.00 0.0 CHF CHF 0.00 Inklusive MwSt.

CHF 0.00 Inklusive MwSt.

Preis auf Anfrage

Wird für Sie bestellt

Diese Kombination existiert nicht.

Geschäftsbedingungen
Versand: 2-3 Arbeitstage

Extended Frequency Ranges From 50 Hz to 200 Hz

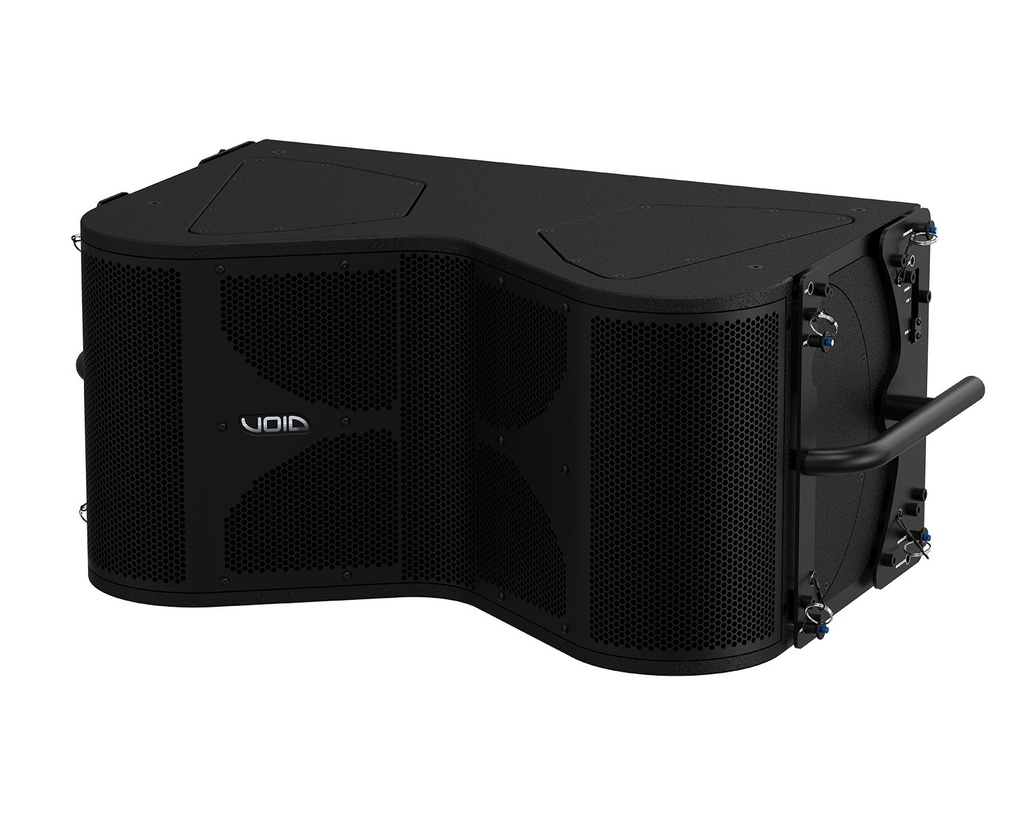

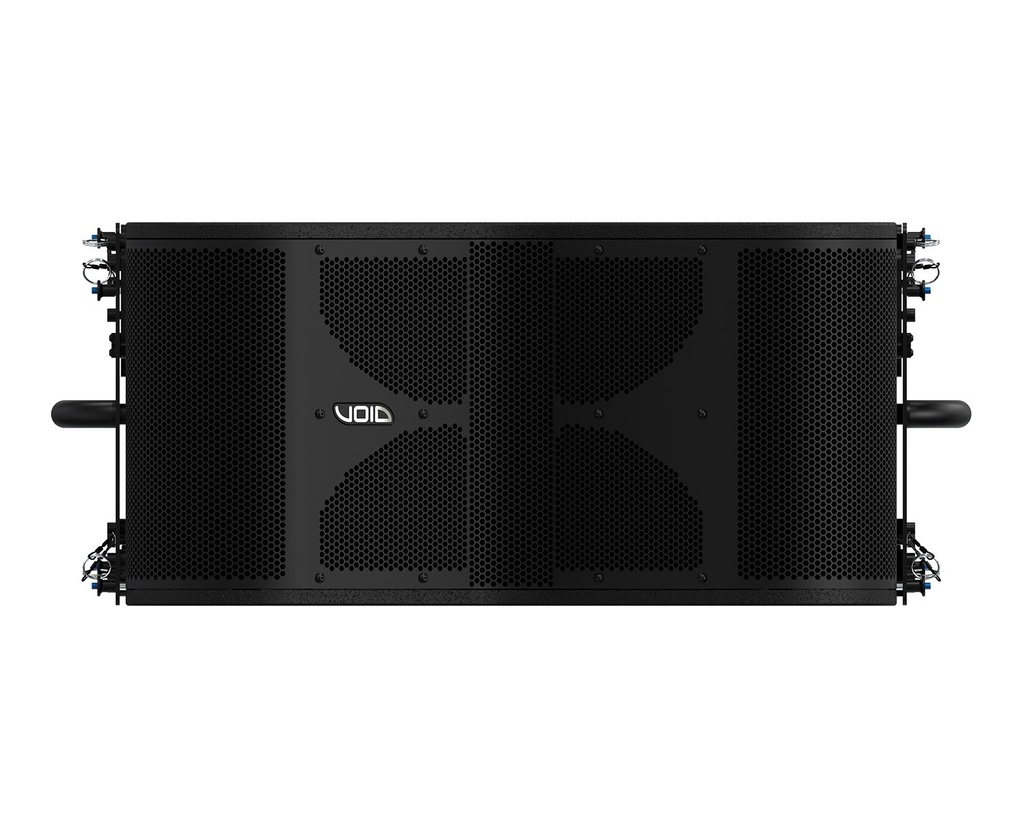

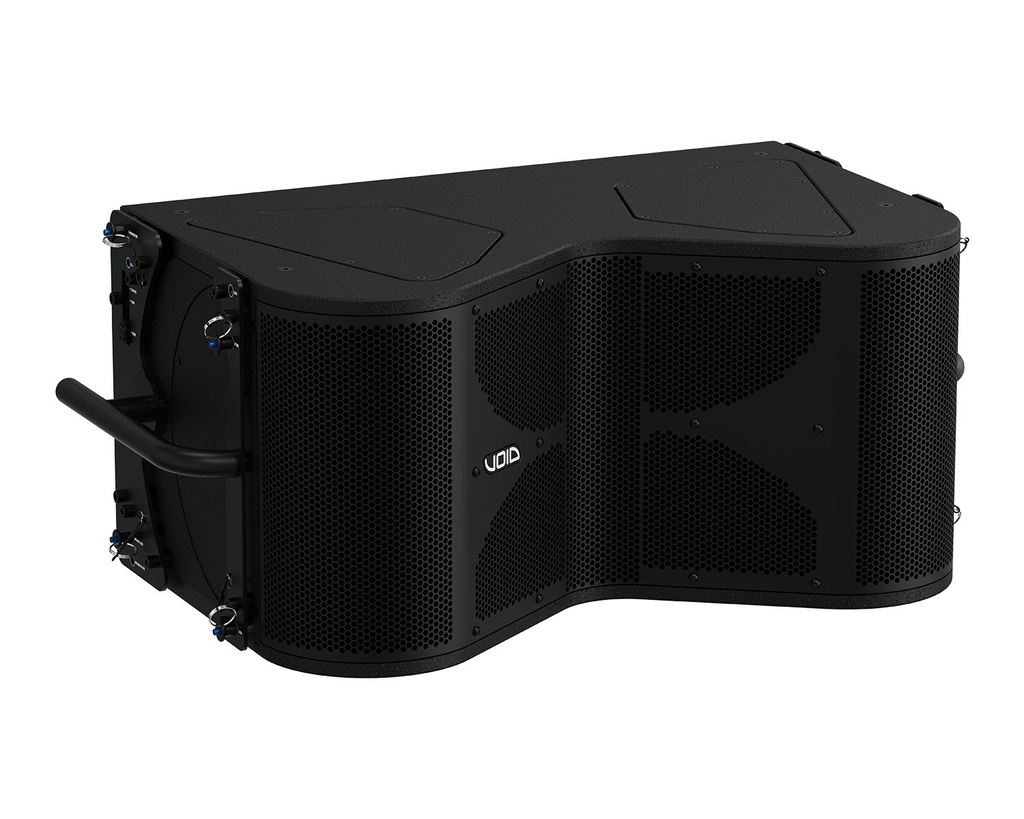

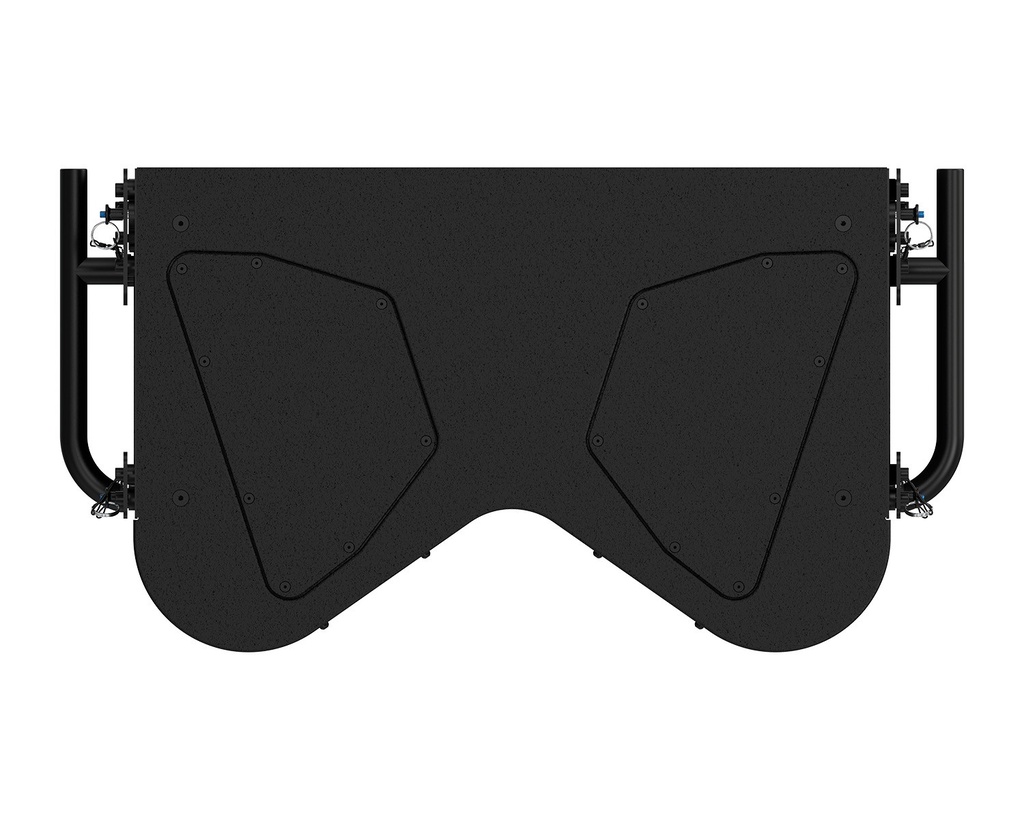

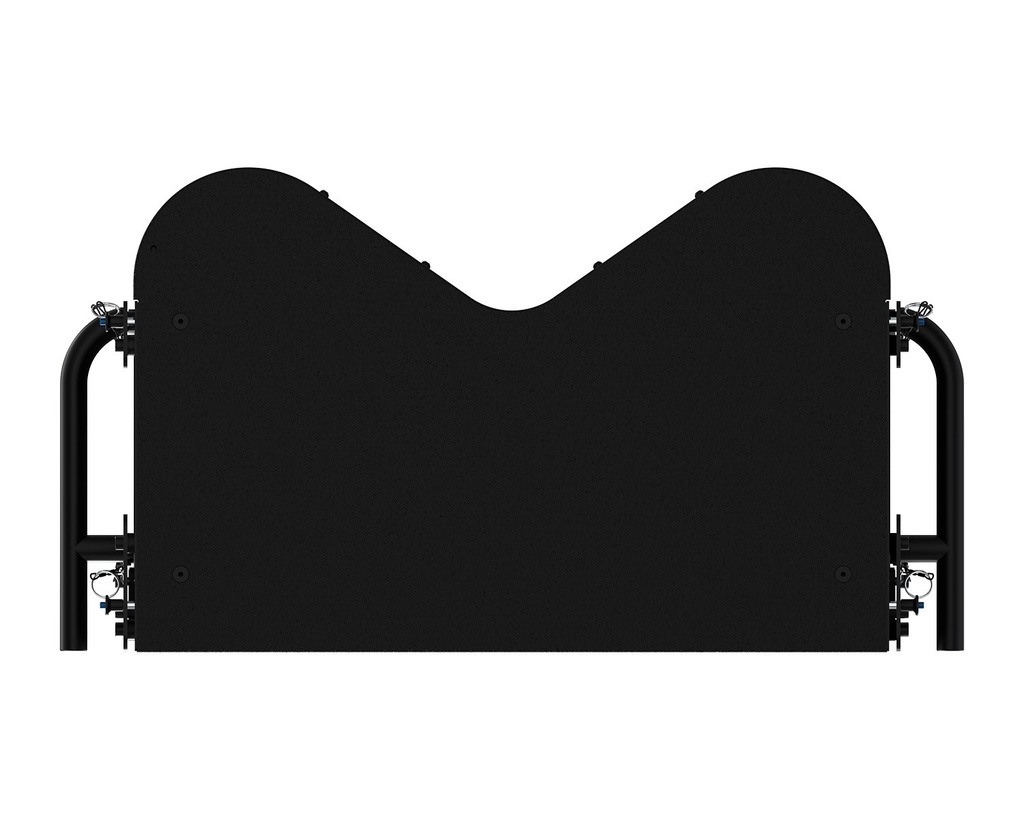

The Arcline 212 is elegantly composed, embracing a modern yet minimalist design. The loudspeaker operates as a compact sub bass system, with a lightweight birchwood enclosure, purposely designed to extend the low frequency range of the Arcline array.

Cardioid Configuration Integrated in the Rigging

Conveniently designed, the Arcline 212 is flyable with the Arcline 8, useful for applications where suspended bass is required. Perfectly suited to large venues, medium to large-scale touring, as well as indoor, outdoor or live music events.

Key Features

  • Extended frequency ranges from 50 Hz to 200 Hz
  • Flyable with Arcline 8
  • Cardioid configuration integrated in the rigging
  • FEA optimised porting

Full Specifications

  • Frequency response: 50 Hz - 200 Hz
  • Efficiency1: 99 dB 1W/1m
  • Nominal impedance: 2 x 8 Ω
  • Power handling22 x 900 W AES
  • Maximum output3: 131 dB cont, 137 dB peak
  • Driver configuration: 2 x 12” low frequency drivers
  • Dispersion: Array dependant

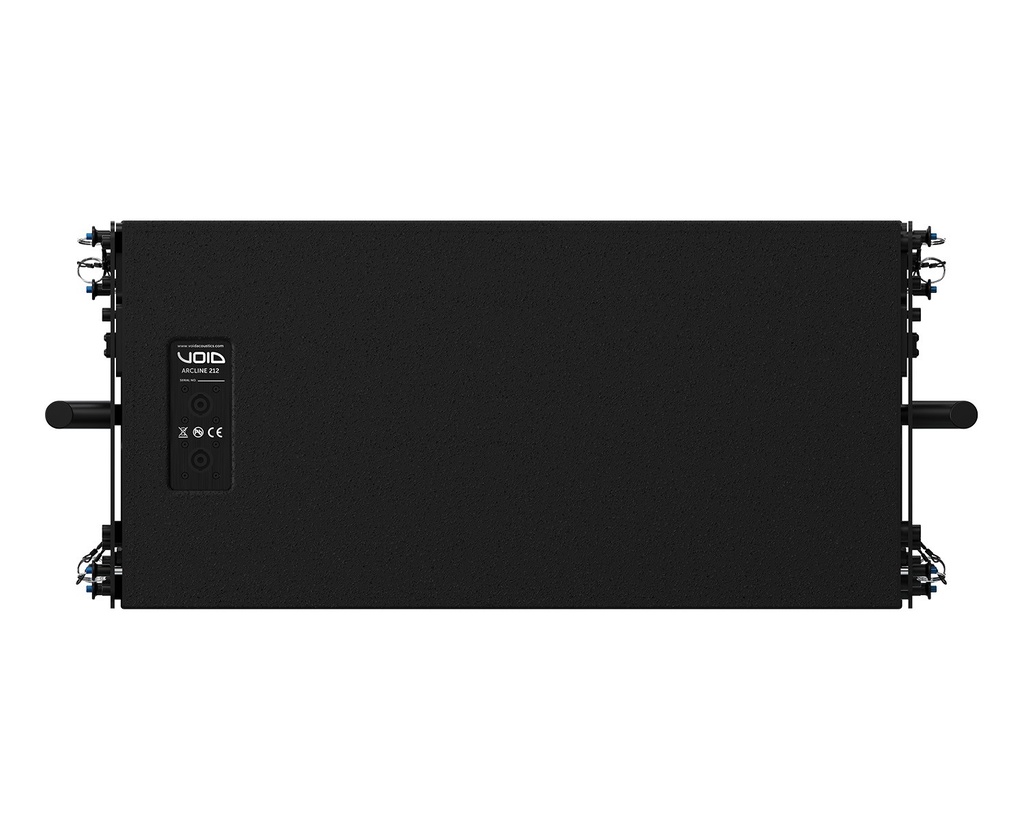

  • Connectors: 2 x 4-pole speakON™ NL4
  • Weight: 42 kg (92.6 lbs)
  • Enclosure: 15 mm multi-laminate plywood

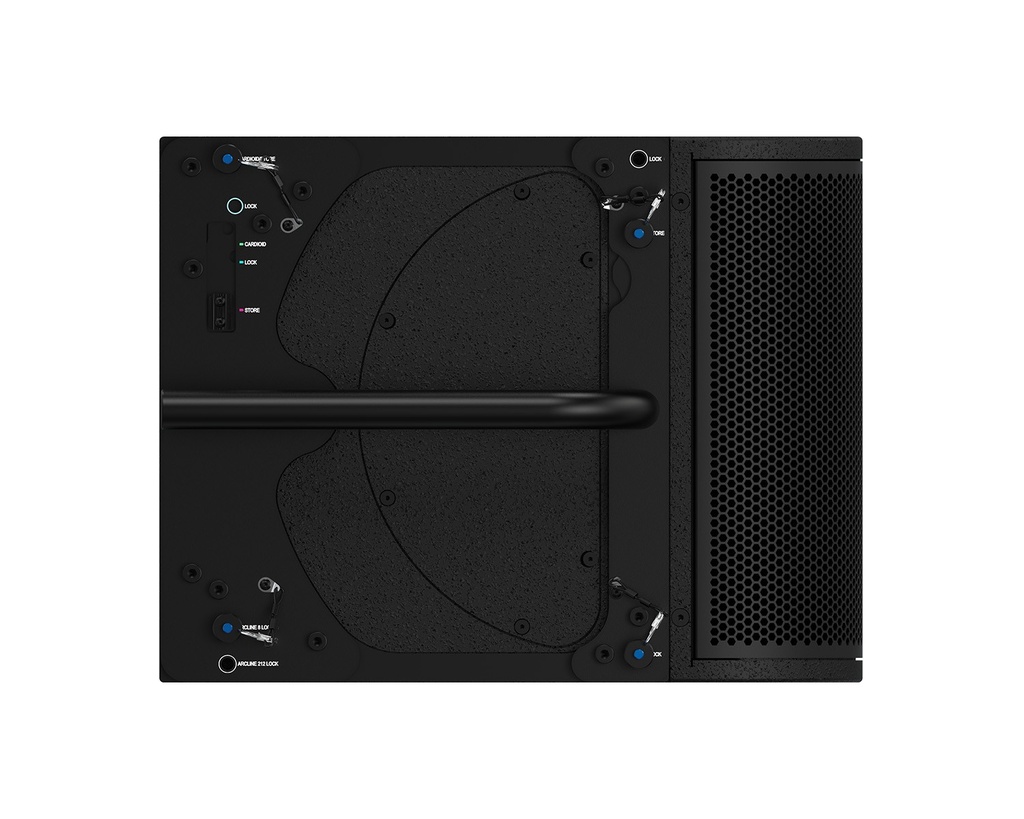

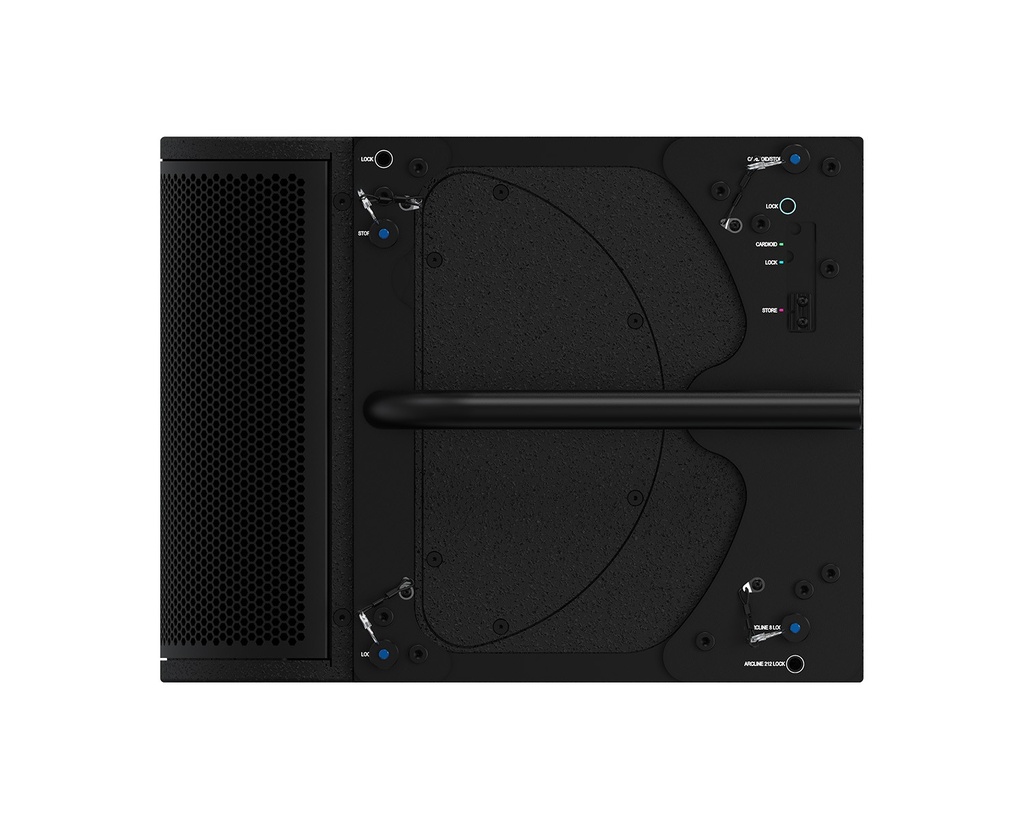

  • Rigging: 304 stainless steel rigging for use with Arcline 8 when flown or ground stacked
  • Finish: Textured TourCoat polyurea
  • Grille: Perforated steel with foam filler
