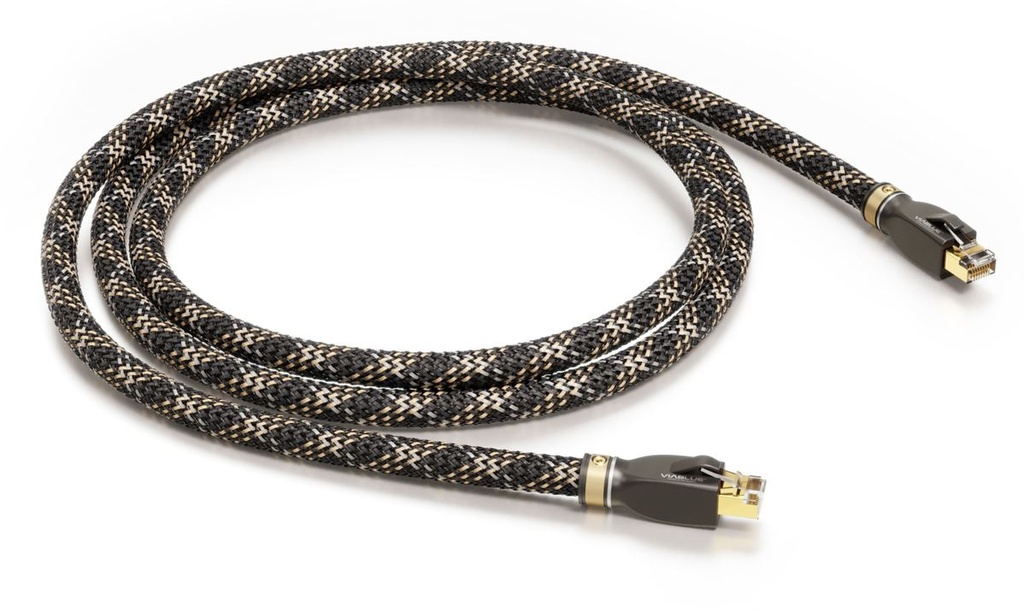

EP-7 SILVER * T6s RJ-45 / 1500 cm/ Cobra

VIABLUE™ EP-7 Silver RJ-45 CAT6A network cables guarantee full protection of sensitive data of external confounding effects and distortion. They provide an optimal gigabit high speed networking, leading to an extremely efficient and complete streaming of HD audio and UHD video formats.

For professional patch-cable applications

• 8 conductors of tinned pure OFC copper strands
• Soft banding
• Satin matt sheath: highly flexible and ultra resistant

100% shield coverage by a total of 5 layers

• Silver-plated OFC braided shield
• 4 aluminum foil shields
• To prevent any distortion such as mobile phone signals
• Jitter-free, no matter which frequency

Customized with VIABLUE™ T6s RJ-45 connectors

• Compact, flame-retardant, break-proof
• Unique VIABLUE™ Ultragrip surface
• 24 carat real gold-plated contacts

Additional features:

• VIABLUE™ Cobra braided cable sleeve

TECHNICAL DETAILS

• Cross section: AWG 26/7
• Bending radius 5 cm
• Inner cores: OFC tinned
• Braided shield: OFC silver-plated
• Operating capacity, nominal 45 nF / km
• Relative propagation velocity, approx. 0.76 C
• Characteristic impedance 1-100 MHz = 100 +/- 15 ohms
• Characteristic impedance = 100-250 MHz = 100 +/- 22 ohms
• Characteristic impedance 250-600 MHz = 100 +/-25 ohms
• Shield attenuation up to 600 MHz > 60 dB
• CAT7-Kabel
• RJ-45 CAT6A connectors
• Outer Ø incl. sleeving: 10.5 mm
