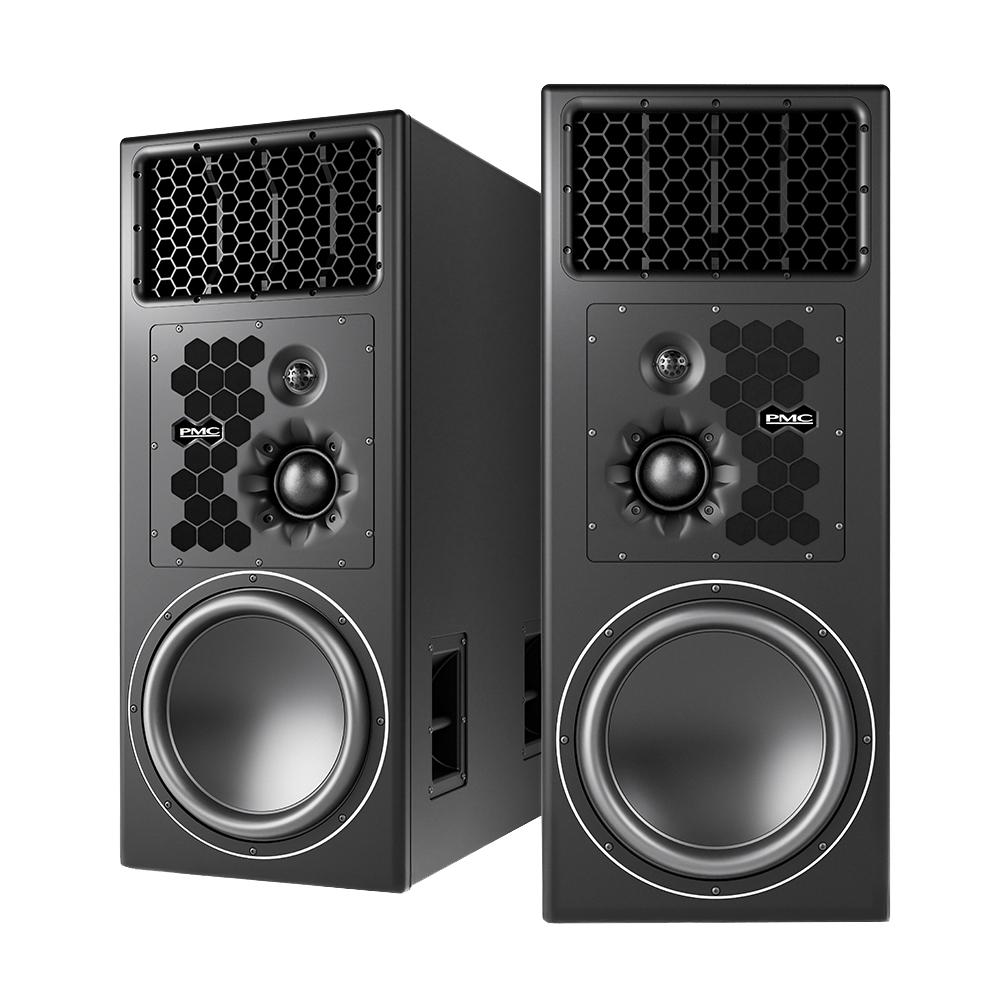

Building on the legendary BB5/6 lineage—an industry reference for more than 35 years in the world’s most demanding recording, mixing, and mastering studios—the all-new PMC15 sets a new benchmark for large-format monitoring. Designed for engineers who demand absolute confidence in every decision, it delivers profound low-frequency extension with effortless authority, vanishingly low distortion, and unwavering transparency.
The PMC15 shares its high- and mid-frequency technology with the acclaimed PMC12 and PMC10, featuring PMC’s hand-built 34mm soft-dome tweeter and the latest PMC75v3 midrange dome. The midrange is further enhanced by PMC’s proprietary n-compass™ dual-profile waveguide, ensuring smooth, wide dispersion through the crossover region and maintaining a stable, precisely focused soundstage across an expansive listening area.
Completing the three-way system is an all-new, in-house developed 15-inch bass driver—the largest ever designed by PMC. With a massive double-stacked magnet assembly and a three-layer, 3-inch voice coil, it delivers immense power handling, ultra-low distortion, and a vast bandwidth.
Powering the PMC15 is PMC’s bespoke Master36 rackmount DPS/Amplifier system, delivering 800W to the tweeter and midrange, and a formidable 2000W to the bass driver. Precision digital crossovers, transparent excursion protection, and comprehensive room EQ are configured via standard LAN using PMC’s SoundAlign2 browser-based interface.
Ideal for stereo and immersive monitoring, the PMC ecosystem scales effortlessly. The PMC15 expands to a twin-cabinet XBD configuration for greater system scale and low-frequency headroom, while the PMC15 delivers ultimate authority where absolute truth is non-negotiable.
- Type: 3-way ATL™ active reference monitor
- Cabinet size: H 1040mm x W 432mm x D 790mm (+20mm LF Driver surround)
- Complete cabinet weight per unit: 97kg
- Analogue & digital (up 192kHz) inputs
- Power per cabinet: 3600W (HF 800W, MF 800W, LF 2000W)
- Effective ATL™ length: 4m(13.1ft)
- Full DSP Room Alignment EQ facilities with SoundAlign2
