Passive Stereo Line Isolator

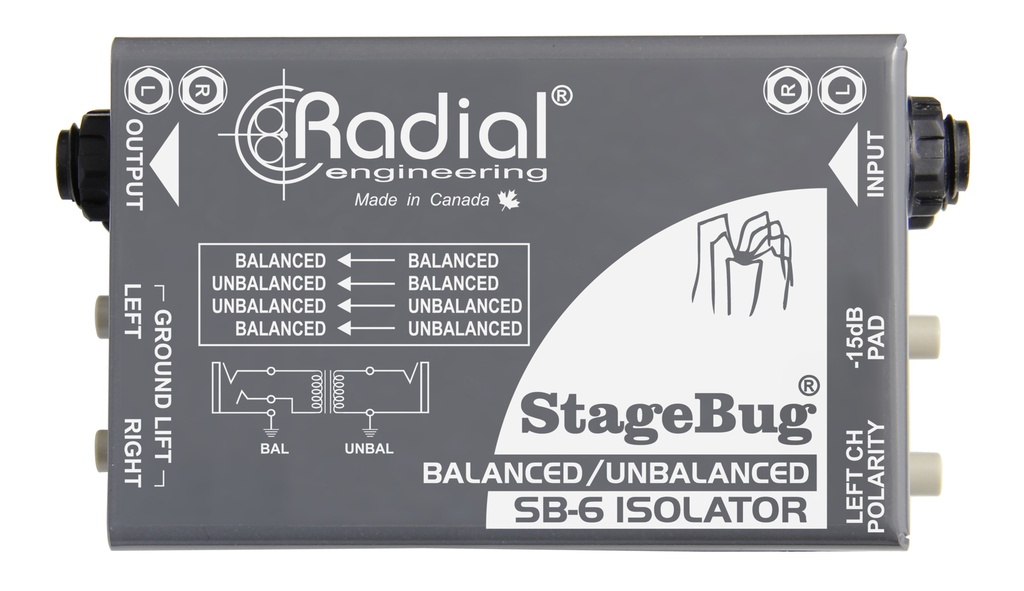

The StageBug SB-6 is a two-channel passive audio isolator designed to accommodate both balanced and unbalanced signals and effectively eliminate noise when used with instruments, consumer electronics, or professional line-level devices.
- Isolator for balanced and unbalanced signals
- Eliminates hum and buzz caused by ground loops
- Exceptionally linear from 20Hz to 20kHz
- Automatically configures for hi-Z or lo-Z signal chains
Problem solver for stereo systems
The SB-6 helps remove noise from two channel audio systems, stereo guitar racks, and pedalboards. Two on-board isolation transformers provide a flat frequency response from 20Hz to 20kHz, while removing hum and buzz from ground loops. Dual ground lift switches help further reduce noise, and a -15dB pad allows you to handle high volume outputs without distortion. When using the SB-6 before a set of powered speakers or guitar amplifiers, a polarity reverse switch corrects frequency cancellation and ensures both speakers play back in phase with one another. The SB-6 is completely passive with no need for power, so it's easy to insert into any system to remove noise quickly.
