Audio-Technica

AT803

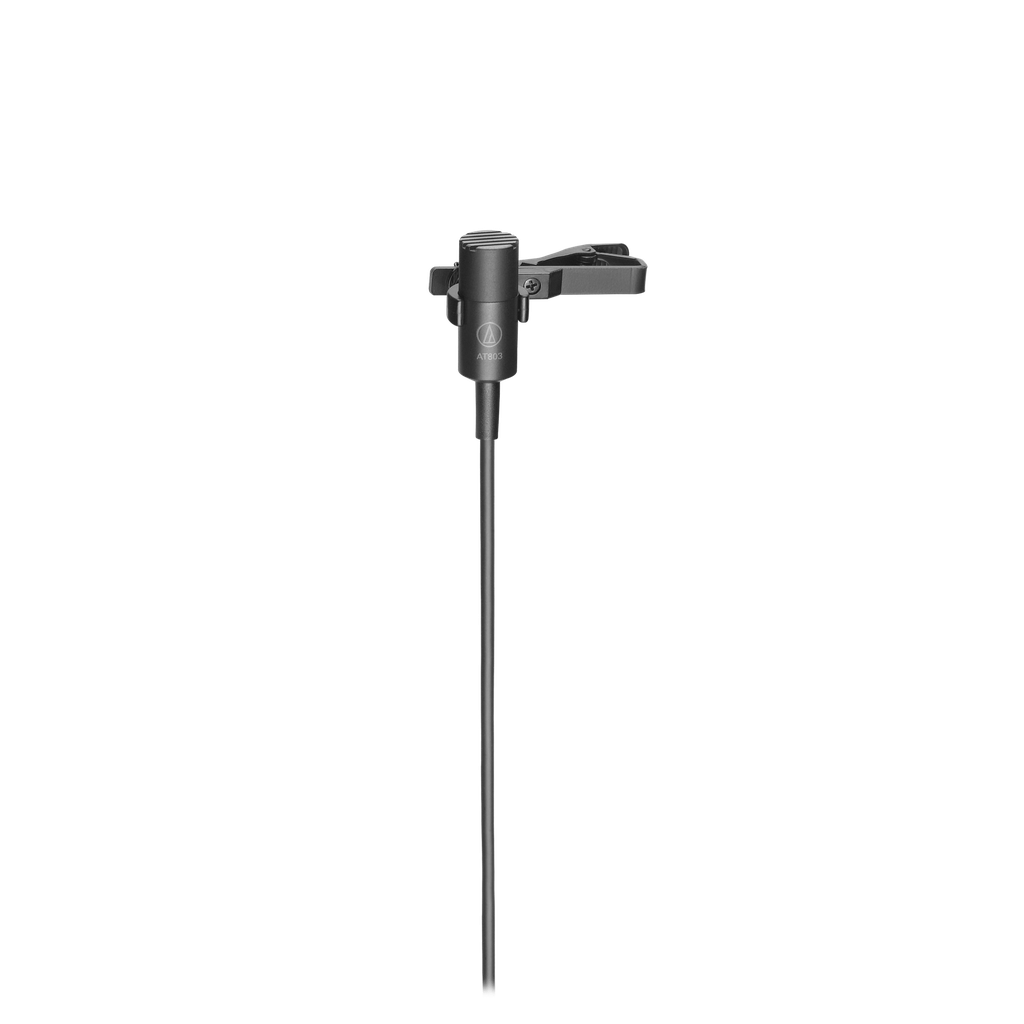

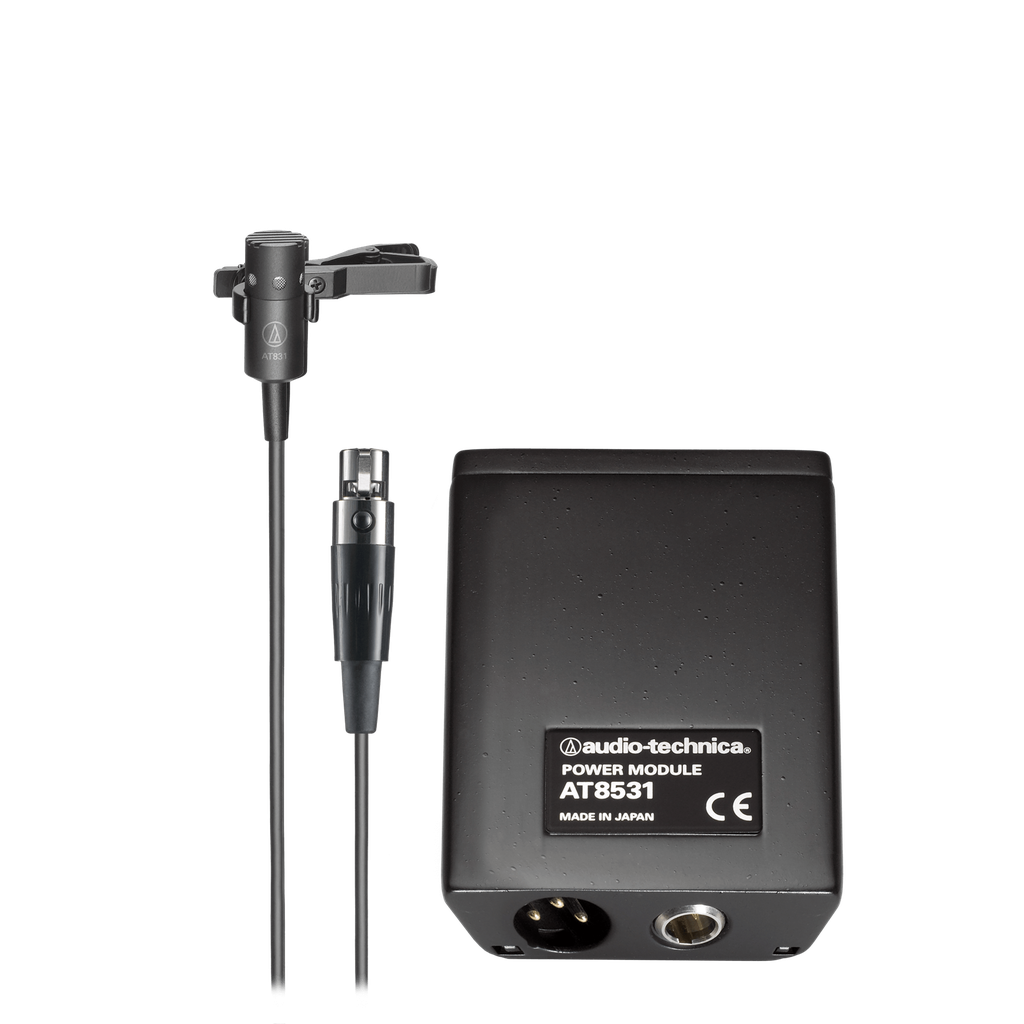

Miniature omnidirectional condenser microphone with power module
CHF 218.01 CHF 218.01 (inkl. Steuern)

Wird für Sie bestellt
In den Warenkorb
Allgemeine Geschäftsbedingungen
Versand: 2-3 Arbeitstage

The AT803 provides excellent yet unobtrusive sound pickup for lecturers and stage/TV performers. Designed for clip-on lavalier and musical instrument use, it features an integral 80 Hz high-pass filter that provides easy switching from a flat frequency response to a low-end roll-off. The microphone operates on battery or phantom power.

  • High intelligibility for lecturers and stage/TV performers
  • Provides excellent yet unobtrusive sound pickup
  • UniSteep® filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
  • Operates on battery or phantom power
  • 6' (1.8 m) cable permanently attached to mic, TA3F connector at power module



Microphones
Element Fixed-charge back plate, permanently polarized condenser
Polar Pattern Omnidirectional
Frequency Response 30 - 20,000 Hz
Low Frequency Roll Off 80 Hz, 18 dB/octave
Open Circuit Sensitivity Phantom: -44 dB (6.3 mV) re 1V at 1 Pa
Battery: -46 dB (5.0 mV) re 1V at 1 Pa
Maximum Input Sound Level Phantom: 135 dB SPL, 1 kHz at 1% T.H.D.
Battery: 121 dB SPL, 1 kHz at 1% T.H.D.
Dynamic Range Phantom: 107 dB, 1 kHz at Max SPL
Battery: 93 dB, 1 kHz at Max SPL
Signal-to-Noise Ratio 66 dB, 1 kHz at 1 Pa
Phantom Power Requirements 11-52V DC, 2 mA typical
Battery Type 1.5V AA/UM3
Battery Current/Life 0.4 mA / 1200 hours typical
(alkaline)
Switches Off, on-flat, on-roll-off
Weight Microphone : 2.8 g (0.1 oz) - Power Module : 139 g (4.9 oz)
Cable 1.8 m (6') long (permanently attached to microphone), 2.6 mm (0.10") diameter, 2-conductor, shielded cable with TA3F-type connector
Dimensions Microphone: 25.0 mm (0.98") long, 10.2 mm (0.40") diameter - Power Module: 84.0 mm (3.31") H x 63.0 mm (2.48") W x 22.0 mm (0.87") D
Output Connector Integral 3-pin XLRM-type (on Power Module)

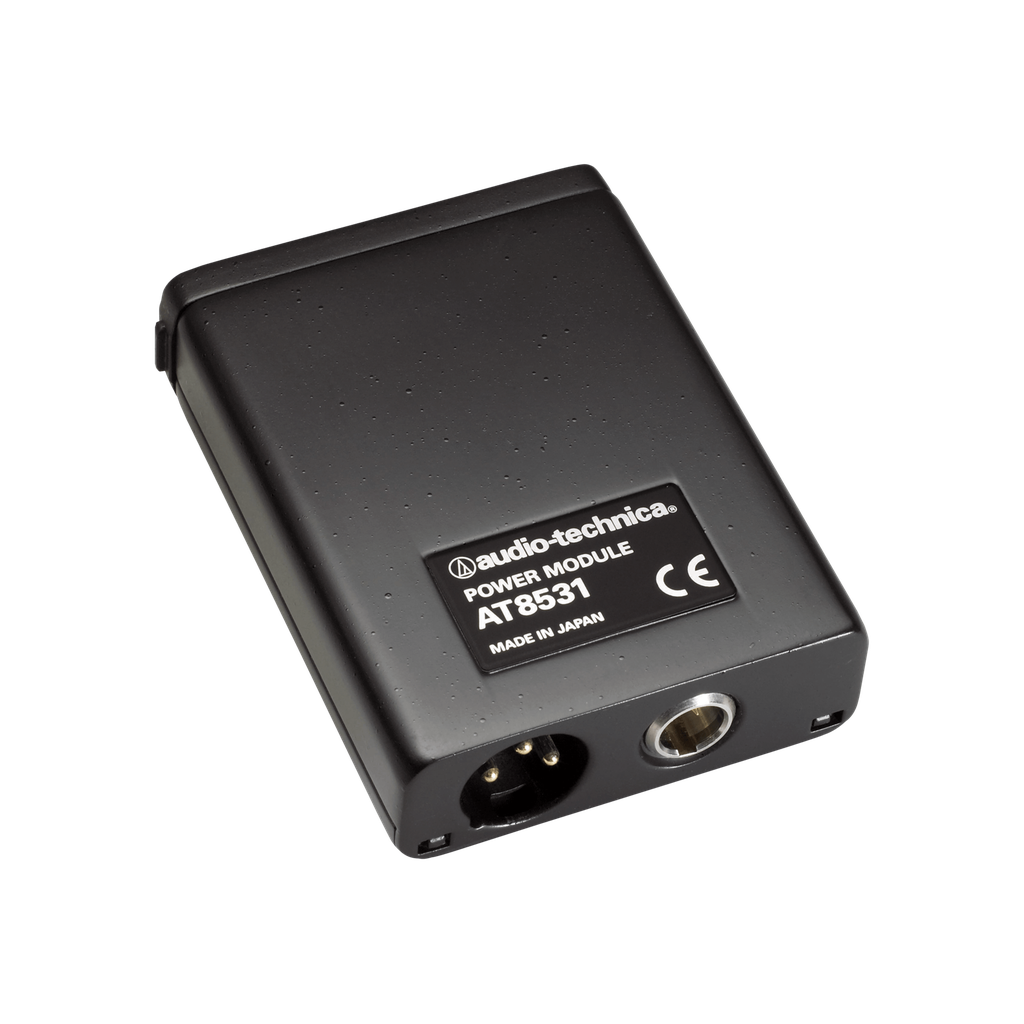

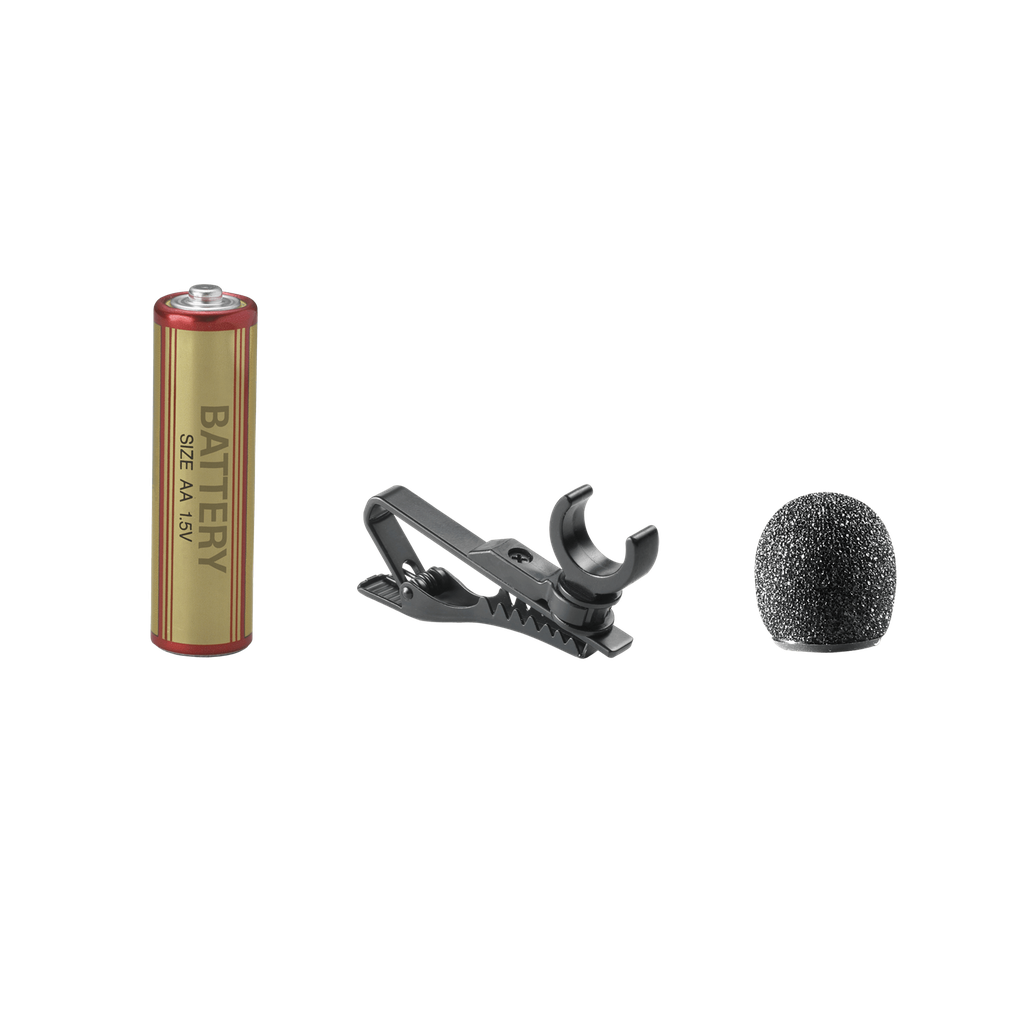

Accessories Included AT8531 power module; AT8419 clothing clip; AT8116 windscreen; battery; protective carrying case
