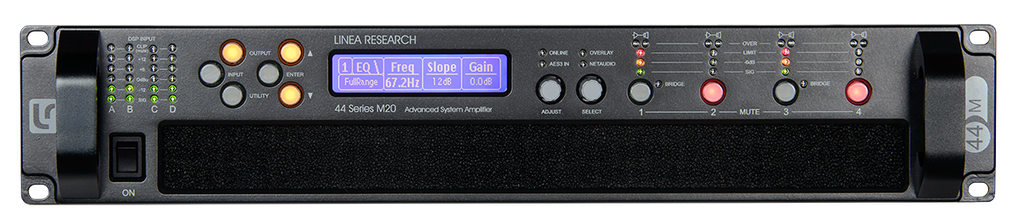

Linea Research

44 M20

https://www.mgmaudio.ch/web/image/product.template/952/image_1920?unique=96f8512

4x 5000W at 2 Ohm nominal load

CHF 6'651.25 6651.25 CHF CHF 6'651.25 Inklusive MwSt.

CHF 6'651.25 Inklusive MwSt.

Preis auf Anfrage

Wird für Sie bestellt

Diese Kombination existiert nicht.

Geschäftsbedingungen
Versand: 2-3 Arbeitstage

44M Series Features

  • Four channels of sonically pure Class D amplification
  • Unique, precise, 96kHz digital signal processing
  • Over-designed switch mode power supply
  • 85V to 240V Auto-sensing PSU
  • 6,000 to 20,000 watts RMS total output
  • Full front panel user interface
  • Ethernet network for system operation and monitoring
  • Analogue, AES3 and optional Dante™ / AES67 digital network audio
  • Powerful grouping & multi-layer EQ
  • Accepts 48kHz and 96kHz FIR files via System Engineer (certain models)
  • Fully designed and engineered in house by Linea Research
  • Manufactured in the UK





RMS per channel, all 4 channels driven
Model 2 Ohms 4 Ohms 8 Ohms 70/100V
44M20 5000W 3000W 1500W 3500/5000W
44M10 2500W 2500W 1500W 2500/2500W
44M06 1500W 1500W 1500W 1500/1500W





Linea’s 44M Series of four channel amplifiers are optimised for live sound applications. Offering a unique combination of massive power and peerless audio performance integrated with unique DSP, the 44M Series represents an unmatched advancement in amplifier technology.

Sharing the same feature set and form factor as Linea's 48M Series of eight channel amplifiers the 44M Series is available in models that develop between 1,500Watts and 5,000 Watts per channel (up to 10,000 Watts for a bridged pair). Unusually these are not, ‘transient’, ‘burst’ or ‘peak’ power figures, they are the power levels that are delivered by all channels simultaneously even when driven with the same dense program material.

With Linea amplifiers there is no need to ration power between channels, you can use all the power you have paid for all the time. This has been independently verified.

Linea can do this because state of the art components and a finely optimised design results in an amplifier that is between 7% and 10% more efficient than any competitive product. This efficiency gain directly translates into the generation of about half the wasted energy (heat) which is clearly significant. In addition to reducing energy costs high efficiency results in generous power reserves ensuring that pristine sound quality is maintained even under the most extreme conditions.

Uniquely, each channel can be configured to deliver its maximum power into 2, 4 or 8 Ohms (2 or 4 Ohms for the M20 model), nominal loads as well as 25V, 70V & 100V constant Voltage (CV) lines. This offers designers and integrators unparalleled flexibility and cost effectiveness.

Ethernet is used for remote control and monitoring while a front panel, optimised for use in challenging live environments, allows full local control of all features. Control via Linea’s intuitive SE System Engineer PC application provides many convenient and time saving features such as very flexible management of presets, and Overlay grouping of Mutes, Gains, Delays, and EQ across an entire system.

The advanced 96kHz DSP is fully integrated into the product and provides an array of unique and genuinely useful features. Because all aspects of the DSP algorithms are designed and hand crafted in house by Linea, they are not available on products from any other manufacturer. For example, LIR linear phase crossover filters which are as easy to use as more conventional filter shapes, and have less latency than FIR filters. Also, the powerful VX Limiter suite which sports Peak, RMS, and Excursion limiting, as well as multi-band limiting for passive 2-way enclosures.
