LAKE

LMX88

https://www.mgmaudio.ch/web/image/product.template/2233/image_1920?unique=6b89cb8

Loudspeaker Management System

CHF 5'545.79 5545.79 CHF CHF 5'545.79 Inklusive MwSt.

CHF 5'545.79 Inklusive MwSt.

Preis auf Anfrage

Wird für Sie bestellt

Diese Kombination existiert nicht.

Geschäftsbedingungen
Versand: 2-3 Arbeitstage

  • Up to 48 audio input channels and 48 output channels directly routable. 16 input routers with 4 failover levels each can be matrix mixed into 8 LAKE MESA or 4 LAKE CONTOUR channels with up to 12 processed outputs

  • Console switching/mixing with Input Scenes. Recall Scene through front panel, Lake Controller or a custommade switching device through the internal GPI port

  • High-performance Lake digital audio system processor for unparalleled loudspeaker management and system control

  • Full system control via Lake Controller touch-screenoptimized software application

  • Raised Cosine Equalization plus linear phase, classic, FIR crossover and Lake XP capability including dedicated FIR for array optimization and multiband/limiter compressor for ultimate sound-shaping abilities

  • Configurable Lake groups offers simultaneous non-destructive parameter adjustments across all Lake platforms

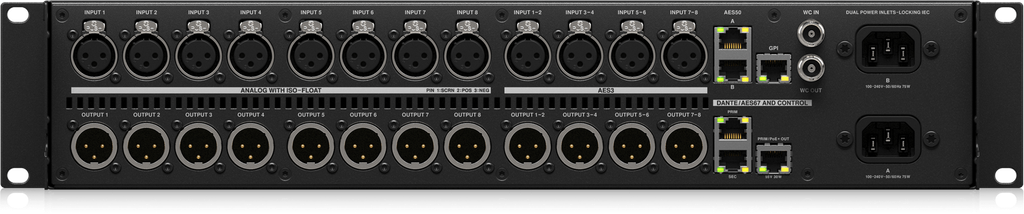

  • 8 x Neutrik XLR providing analog inputs with Iso-Float ground isolation

  • 4 x Neutrik XLR providing AES3 inputs with up to 192 kHz sampling frequency with individual sample rate converter per AES3 input

  • 8 x Neutrik XLR providing 8 analog outputs with Iso-Float ground isolation

  • 4 x Neutrik XLR providing AES3 outputs with up to 192 kHz sampling frequency

  • 5 x RJ45 ports provide 8 x 8 channels of dual redundant Dante/AES67 interfaces and remote configuration via Lake Controller and Dante Controller software. One of the ports has PoE+

  • 2 x RJ45 ports provide 2 x AES50 individual interfaces

  • 1 x RJ45 port providing GPI

  • 2 x BNC providing Wordclock I/O with 75 Ohm selectable termination

  • High-quality A/D and D/A 24-bit conversion and 96 kHz internal sampling frequency

  • 10 different clock sources

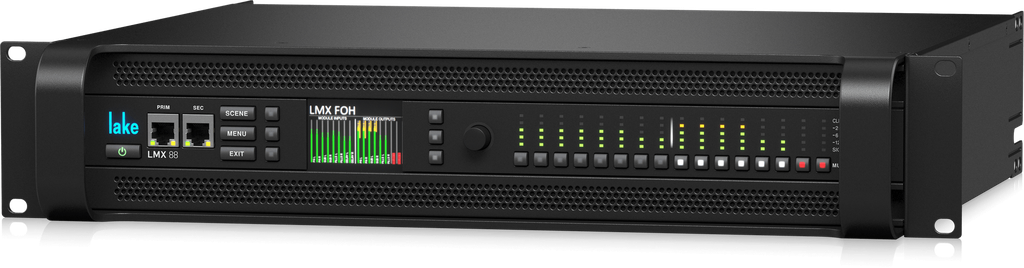

  • High contrast full color IPS display with 6 dynamic buttons and rotary encoder for navigation

  • Dedicated buttons for Menu, Exit and Scene selection activation

  • Front panel accessible dedicated module input and output mute buttons and LED metering

  • Rugged 2U rackmount chassis for touring applications

  • 100 user Frame presets for simple and efficient system configuration and setup

  • Redundant universal 85- 264 V power supply served through locking IEC connectors
