KlarkTeknik

Fibre-150m

https://www.mgmaudio.ch/web/image/product.template/2193/image_1920?unique=3eea8b3

Ruggedised multimode optical fibre cable with Neutrik* opticalCON DUO connectors

CHF 2'284.00 2284.0 CHF CHF 2'284.00 Inklusive MwSt.

CHF 2'284.00 Inklusive MwSt.

Preis auf Anfrage

Auf Lager

Diese Kombination existiert nicht.

Geschäftsbedingungen
Versand: 2-3 Arbeitstage

The FIBRE-150M ruggedised multimode optical fibre cable provides a bidirectional data link in a single 150 metre cable and features Neutrik opticalCON DUO connectors for high reliability, especially desirable in concert touring and festival applications where the optical connection needs to be protected against the ingress of dirt and dust. When used in conjunction with MIDAS and KLARK TEKNIK products equipped with optical snake interfaces, the FIBRE-150M cable can transmit 192 bidirectional channels of 24 bit digital audio at 96 kHz sample rate.

The opticalCON DUO cable connector accommodates a standard optical LC-Duplex connector in a ruggedised and durable all-metal housing with a protective rubber coating. It features a spring loaded push-pull locking mechanism and the optical connection is protected by a lockable metal cap with an integral O-ring seal. FIBRE-150M meets the IP65 standard for environmental protection when fitted to its mating chassis connectors.

The 2M dual fi bre multimode optical cable has a nominal 5.4 mm diameter and features two 900 μm diameter optical fibres with both hard elastomeric and acrylate coatings and a 50 μm core diameter. Aramid yarn is used for internal strain relief and a UL94HB rated flame retardant polyurethane jacket provides overall protection. The FIBRE-150M cable is supplied on a Schill GT310 drum with rubberised frame and integral carrying handle for ease of transport, deployment and respooling.



  • Ruggedised multimode optical fibre cable with Neutrik opticalCON* DUO connectors

  • Length 150 metres

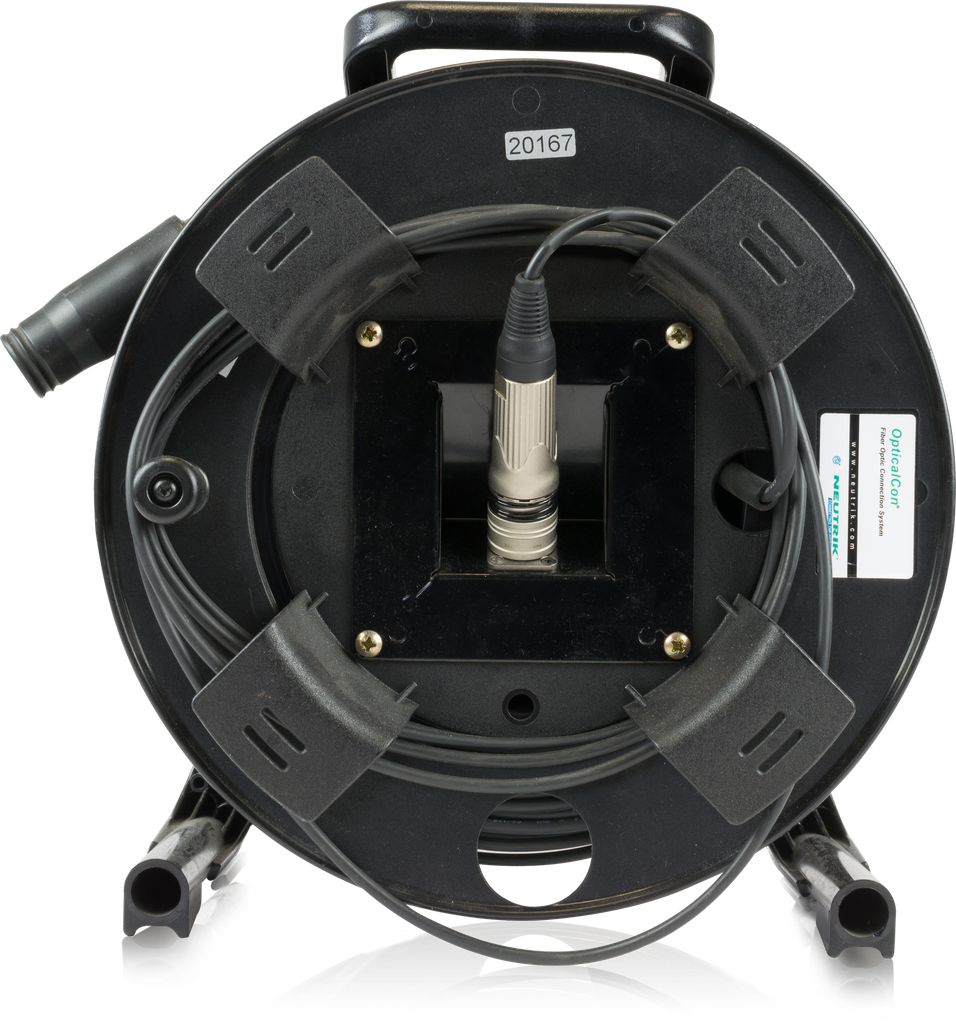

  • Supplied on Schill* GT310 drum with rubberised frame and integral carrying handle

  • Designed and engineered in the U.K.
