Consists of 8 channels

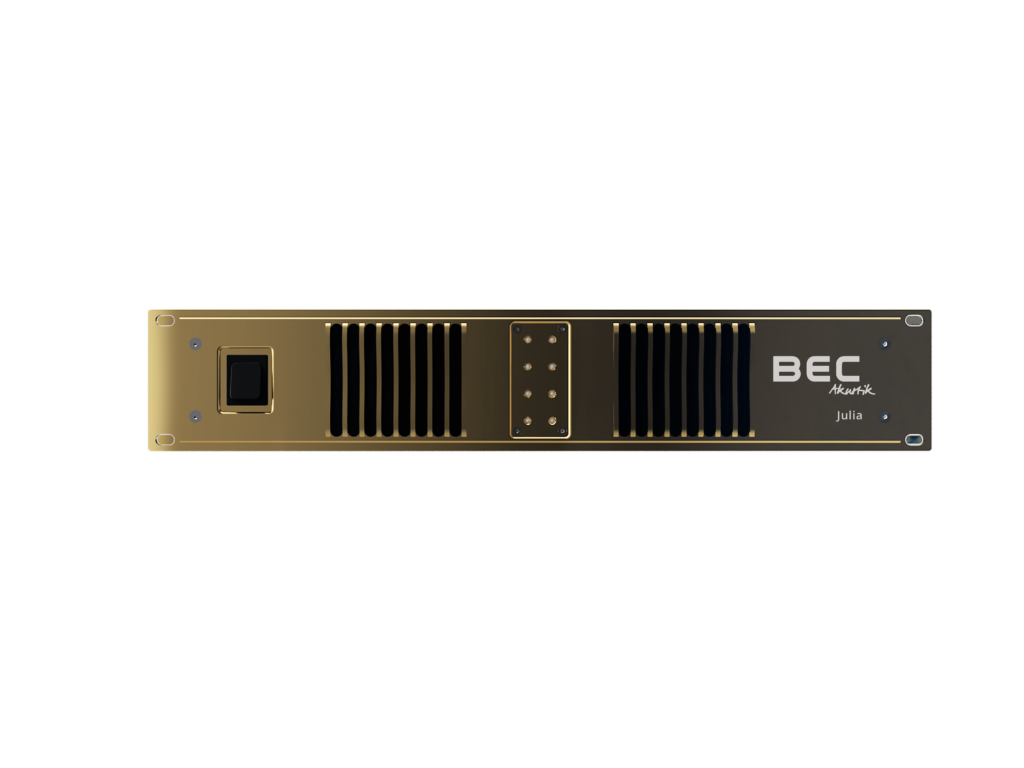

Front panel: anodised gold
Housing: black
Power (sinusoidal) at 8 ohms: 8 x 120 W
Power (sinusoidal) at 4 ohms: 8 x 180 W
Power (sinusoidal) at 4 ohms (bridged): 1 x 540 W
Frequency response: 20 Hz – 35 kHz
THD: 1 kHz, THD < 0.01%
Damping factor at 8 ohms/1 kHz: 400
Input sensitivity: 26 dB/29 dB/32 dB
Input impedance: 100 kOhm balanced
Input connectors: XLR (Neutrik)
Output connectors: SpeakON (Neutrik)
Mains connection: Neutrik Powercon
Rated voltage (±10 %): 200–240 VAC ±10 %, 50–60 Hz
Continuous output power at 4 Ω, 230 V AC/50 Hz: 650 W
Width: 486 mm
Height: 88 mm (2U)
Depth: 410 mm
Weight: 10 kg
Optional:
Subwoofer channels (2 × 400 W, 4 Ω)
Optinal: Dante compatibility
(Additional charge: 149,00 €)
Designed and manufactured in Germa
