Audio Technica

ES945LED

https://www.mgmaudio.ch/web/image/product.template/735/image_1920?unique=fadf41b

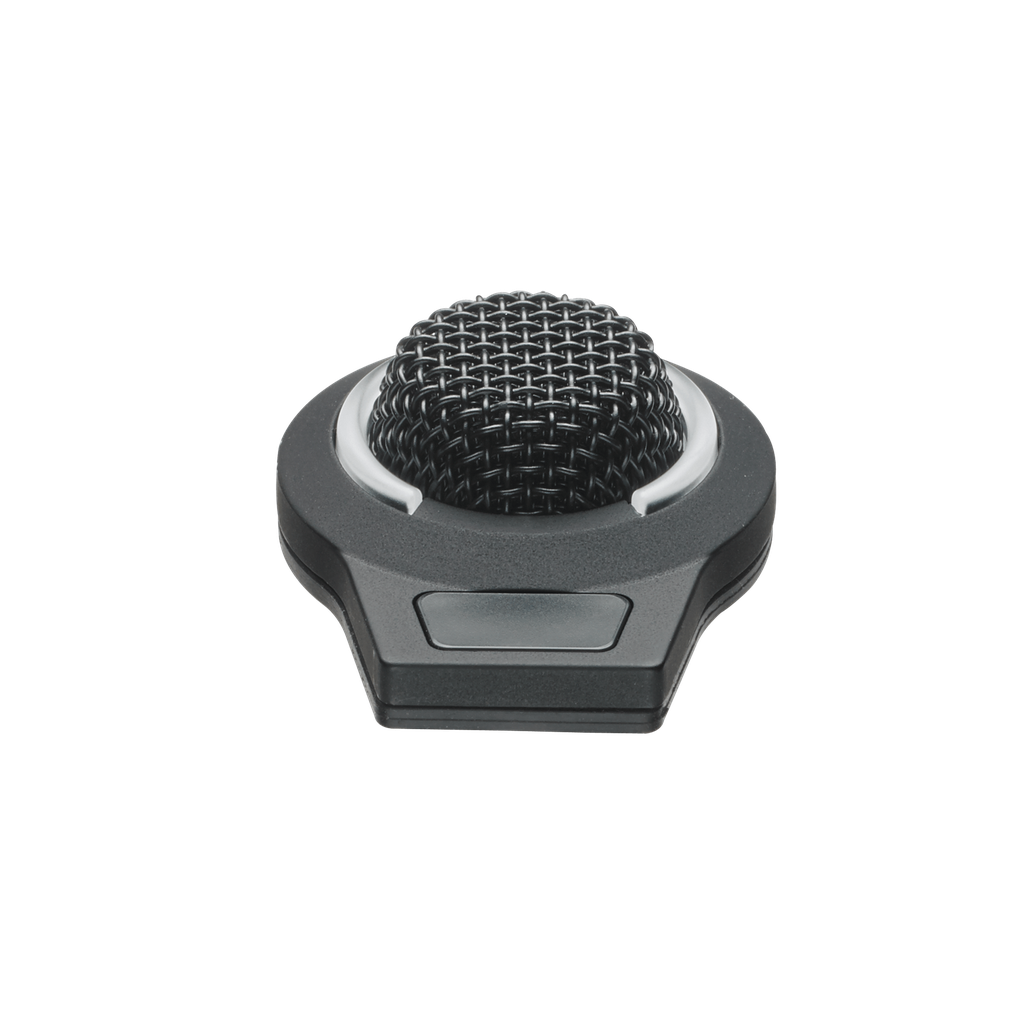

Omnidirectional Condenser Boundary Microphone with LED

CHF 249.77 249.77 CHF CHF 249.77 Inklusive MwSt.

CHF 249.77 Inklusive MwSt.

Preis auf Anfrage

Wird für Sie bestellt

Diese Kombination existiert nicht.

Geschäftsbedingungen
Versand: 2-3 Arbeitstage

Control at your fingertips

With its low-profile design that mounts unobtrusively in tabletops for minimum visibility, the ES945/LED omnidirectional condenser boundary microphone provides clear, highly intelligible audio that is perfect for sound reinforcement, professional recording and teleconferencing, television and other demanding sound pickup applications.

Protected by a rugged all-metal case with a two-layer steel mesh grille, the microphone’s omnidirectional polar pattern affords a 360° pickup angle, while its UniGuard® RFI-shielding technology provides outstanding rejection of radio frequency interference (RFI). Users can easily toggle between mute and live audio thanks to the microphone’s capacitive-type touch-sensitive switch. An integral Red/Green LED ring indicates the mute status, staying green when the microphone is live and turning red when it is muted.

Additionally, the ES945/LED is equipped with a self-contained power module with an XLRM-type output connector, eliminating the need for an external power module.

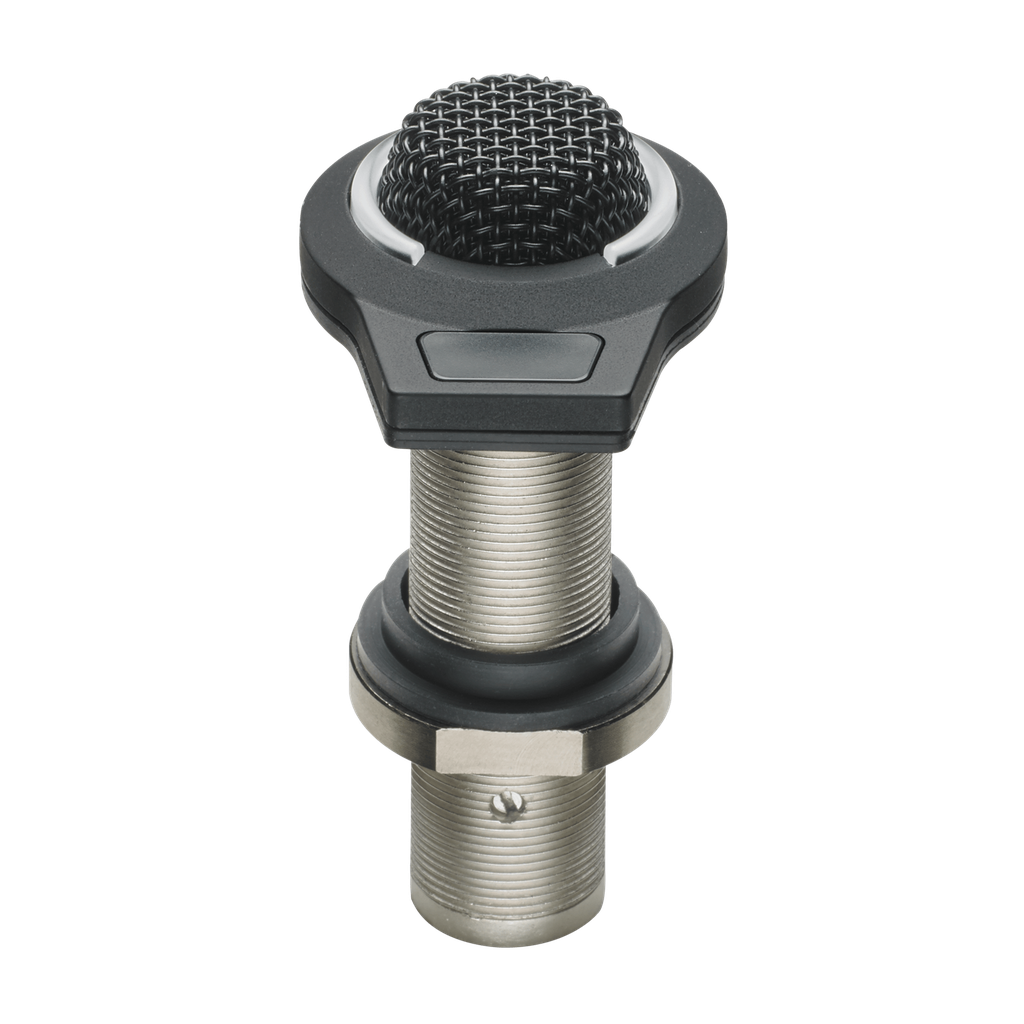

  • Mounts unobtrusively in tabletops, ceilings or walls
  • Low-profile element Provides uniform omnidirectional polar pattern with 360° acceptance angle
  • RFI-shielding technology UniGuard® offers outstanding rejection of radio frequency interference (RFI)
  • Self-contained electronics with XLRM termination eliminate the need for external power module
  • Requires phantom power supply of 11V to 52V
  • Rugged all-metal case with a two-layer steel mesh grille
  • Capacitive touch-sensitive deviation allows users to switch easily mute / un-mute the microphone
  • Integral LED ring indicates mute status-green when mic is live, when muted red
  • A pair of isolators provide mechanical dampening of surface-mounting vibration

PURIFIED DESIGN
With a diameter of 38mm, the ES945/LED is extremely discreet and fits perfectly into a table, ceiling or wall.

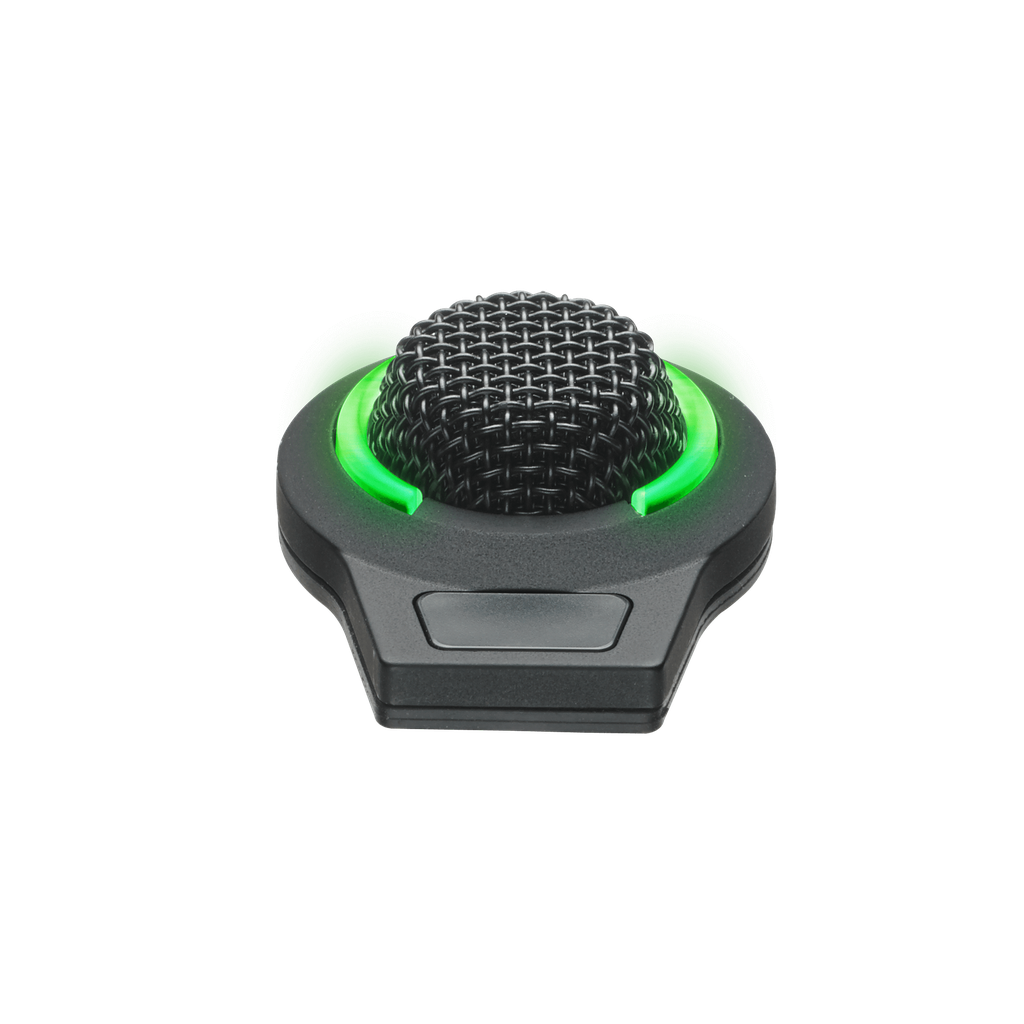

GREEN/RED LED status light
The ES945/LED is equipped with a 360° LED light ring that visually indicatess the status of the integrated microphone (on / off). It works through the microphone's phantom power, without requiring an additional external power supply.

INDEPENDENT POWER MODULE

The ES945/LED is equipped with an autonomous power supply module with an XLRM-type output connector, eliminating the need for an external power module.

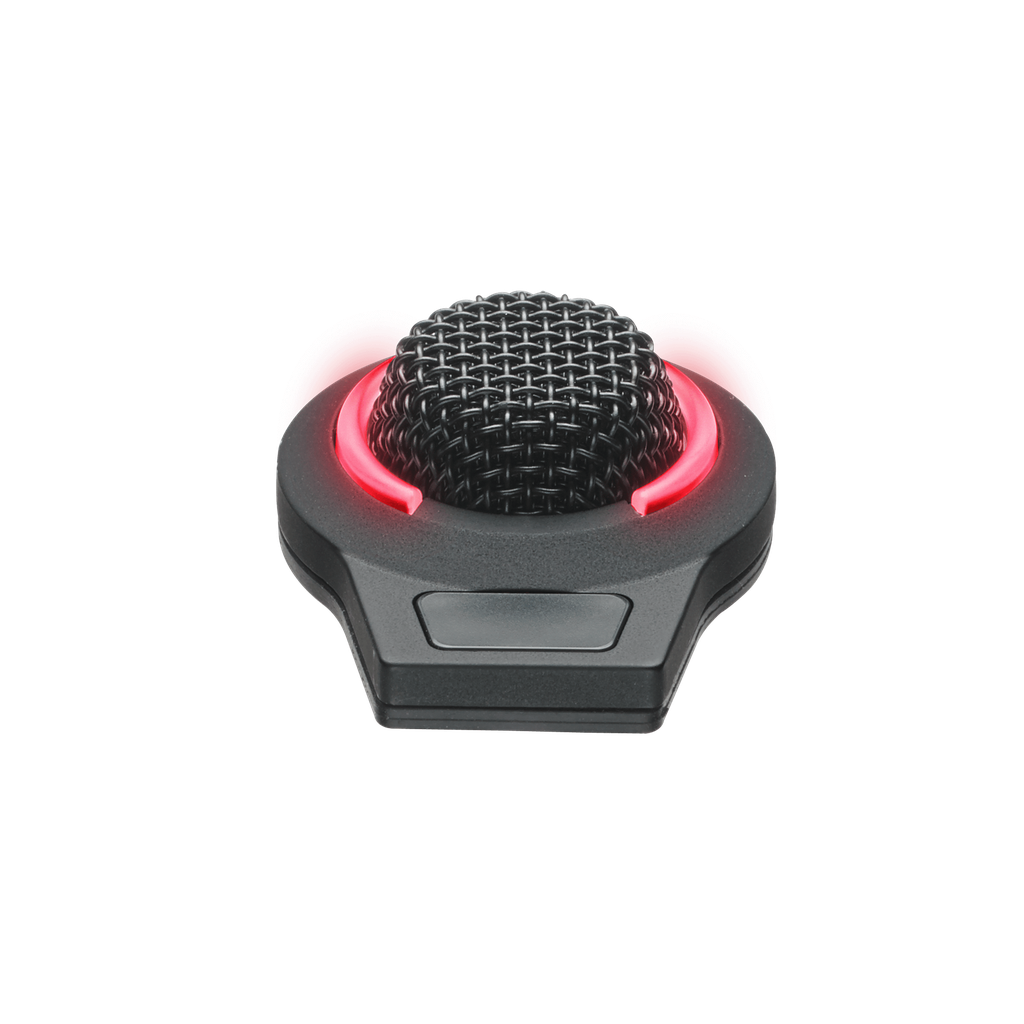

LED STATUS LIGHT

The integrated circular LED light indicates the microphone's status; it stays green when the microphone is on and red when it is off.</p>

TOUCH SWITCH

The touch switch located next to the capsule of the ES945/LED enables users to easily switch the microphone on or off.

uniguard technology

The UniGuard® shielding technology fitted to all microphones in the Engineered Sound series offers outstanding rejection of radio frequency interference (RFI).



Microphones
Element Fixed-charge back plate, permanently polarized condenser
Polar Pattern Omnidirectional
Frequency Response 40-19,000 Hz
Open Circuit Sensitivity -40 dB (10 mV) re 1V at 1 Pa
Maximum Input Sound Level 142 dB SPL, 1 kHz at 1% T.H.D.
Dynamic Range 113 dB, 1 kHz at Max SPL
Signal-to-Noise Ratio 65 dB, 1 kHz at 1 Pa
Phantom Power Requirements 11-52V DC, 5.7 mA typical
Switches Touch-sensitive control: on/mute
Weight 65 g (2.3 oz)
Dimensions 84.8 mm (3.33") long,
38.0 mm (1.49") diameter
48.0 mm (1.89") maximum width
Output Connector Integral 3-pin XLRM-type
Accessories Included One pair isolators
