Audio Technica

ATW-T5201

https://www.mgmaudio.ch/web/image/product.template/640/image_1920?unique=3290bef

5000-Series - Body-Pack Transmitter

CHF 1'008.33 1008.33 CHF CHF 1'008.33 Inklusive MwSt.

CHF 1'008.33 Inklusive MwSt.

Preis auf Anfrage

Wird für Sie bestellt

Diese Kombination existiert nicht.

Geschäftsbedingungen
Versand: 2-3 Arbeitstage

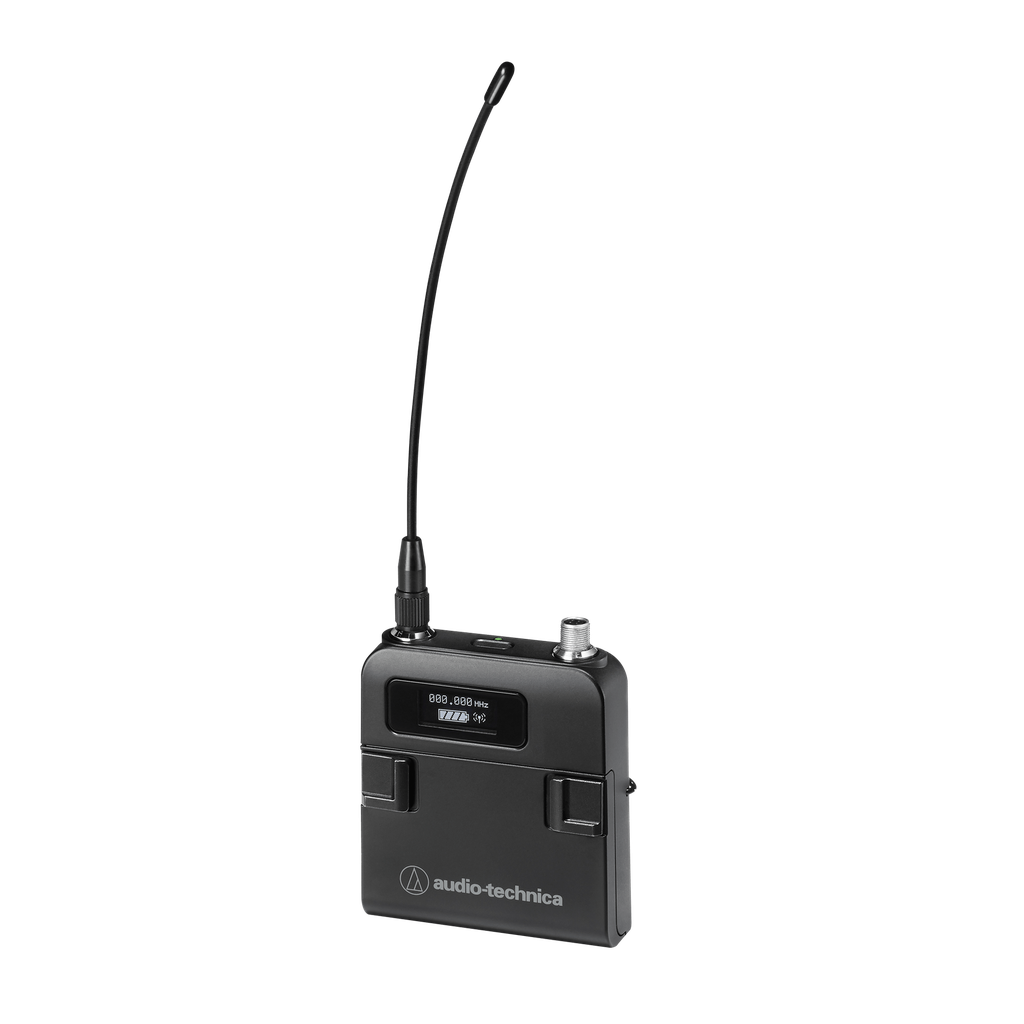

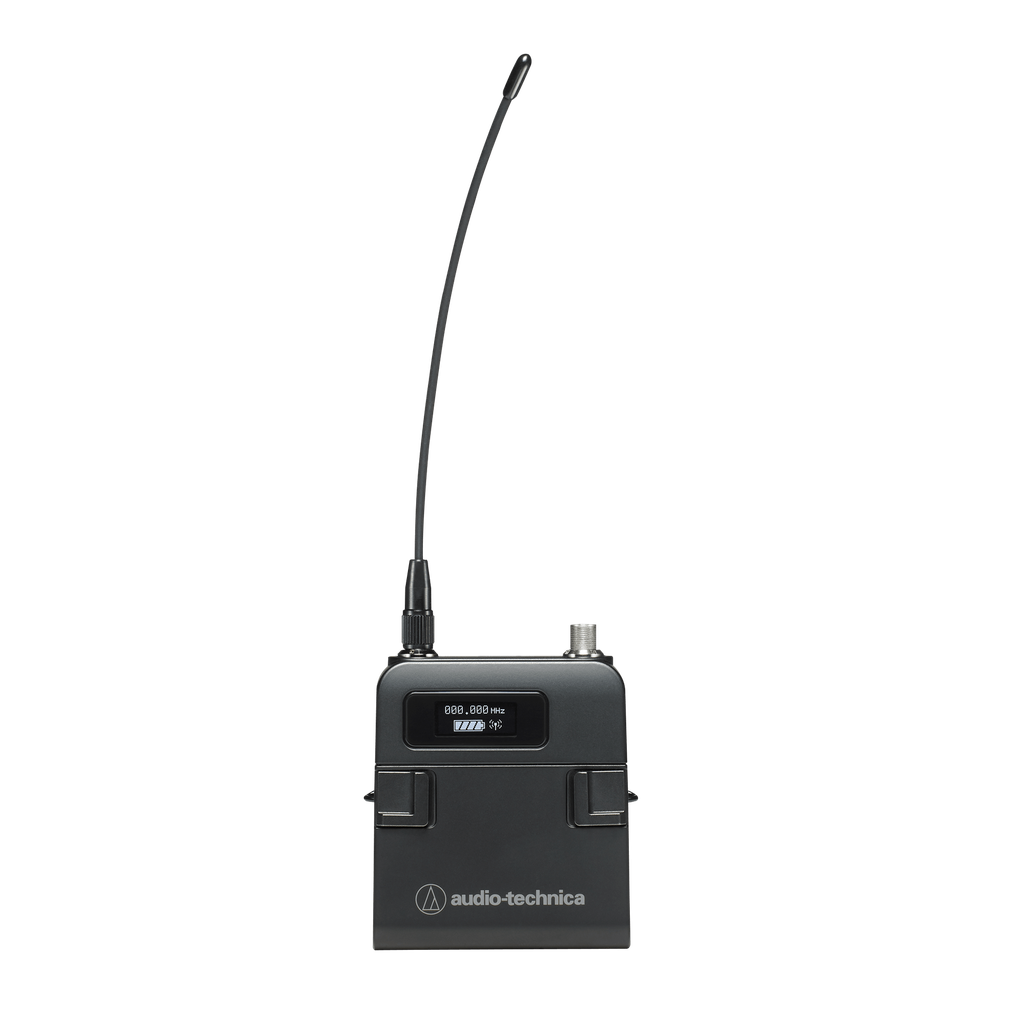

Audio-Technica’s third-generation 5000 Series wireless Body-Pack Transmitter

Designed for use on professional tours, in stadiums, concert halls, festivals, houses of worship and other demanding audio environments, the Audio-Technica 5000 Series provides incredible audio quality and proven, critically acclaimed performance for artists, broadcasters and presenters worldwide.

ATW-T5201 body-pack transmitter for use with the 5000 Series offers the highest-quality wireless live sound, with dual-compander circuitry that processes high and low frequencies separately. The transmitter features rugged, ergonomic metal body, highly visible OLED screen (switchable between standard and performance views to highlight key metering), programmable features, soft-touch controls, and switchable RF power (2 mW/10 mW/50 mW). Available in three different frequency ranges – DE1 (470–590 MHz), EG1 (580–700 MHz) and GH1 (700–820) – to provide complete coverage of the receiver’s bandwidth. The compact ATW-T5201 is equipped with Audio-Technica’s new rugged cH-style screw-down 4-pin connector for secure connection to A-T’s cH-style lavalier and headworn microphones, or cables. More features are the auto squelch function which automatically adjusts the squelch setting to maximize operating range while minimizing potential interference and a backup frequency that can be quickly swapped by pressing the transmitter’s multifunction button in the event of unexpected interference. Software enables remote monitoring and control of the wireless system.

Two receivers are available for use with the 5000 Series: ATW-R5220 with two balanced XLR outputs and ATW-R5220DAN that also includes a Dante output.

5000 Series components and compatible accessories are offered as individual, à la carte products to give you the greatest possible flexibility in constructing a system that fits your needs.

Please note that some frequency bands might not be available in your territory or could come with limited tuning bandwidth / transmitting power due to local regulations. For assistance with frequency coordination, please contact your regional Audio-Technica customer service representative.

- Body-pack transmitter provides 120 MHz UHF tuning bandwidth (DE1: 470–590 MHz, EG1: 580–700 MHz, GH1: 700–820) for maximum versatility in an ever-congested RF environment
- Unique multifunction button can be used to switch to a backup frequency (on both transmitter and receiver) should interference be encountered
- Auto squelch feature automatically adjusts squelch setting to maximize range while minimizing potential interference
- Dual compander circuitry processes high and low frequencies separately for unmatched audio quality
- Highly visible OLED transmitter screen
- Highest possible wearing comfort due to small size - 64 mm × 70 mm × 17 mm (W × D × H)
- Robust, ergonomic full metal body with concealed soft-touch controls and IR sync functionality
- Programmable features and switchable 2/10/50 mW RF power Rugged cH-style connector provides secure connection to lavalier mics, headworn mics, and cables with cH-style screw-down 4-pin connector
- Advanced digital Tone Lock™ squelch effectively blocks stray RF; the digitally encoded tone also communicates transmitter data for receiver display
- Wireless network monitoring and control software
- 5000 Series components are offered individually – not as preconfigured systems – for greater flexibility

“Dual compander for incredible audio quality”
Designed for use on professional tours, in stadiums, concert halls, festivals, houses of worship and other demanding audio environments, the Audio-Technica 5000 Series provides incredible audio quality and proven, critically acclaimed performance for artists, broadcasters and presenters worldwide.

“Comprehensive tuning bandwith”
For maximum versatility in ever-congested RF environment the dual-channel receiver provides a tuning bandwidth of 230 MHz (DG1: 470–700 MHz.). Both transmitters (HH/ATW-T5202 and BP/ATW-T5201) are available in two different frequency ranges – DE1 (470–590 MHz) and EG1 (580–700 MHz) – to provide complete coverage of the receiver’s bandwidth.

“Designed for professionals”
The transmitter provides highest possible wearing comfort due to small size - 64 mm × 70 mm × 17 mm (W × D × H), robust and ergonomic full metal body with concealed soft-touch controls, rugged cH-style connector for secure connection - just to name a few features that meet the needs of professional users.

4-pin connector
The compact ATW-T5201 is equipped with Audio-Technica’s new rugged cH-style screw-down 4-pin connector for secure connection to A-T’s cH-style lavalier and headworn microphones, or cables

Wide Bandwidth
Body-pack transmitter provides 120 MHz UHF tuning bandwidth (DE1: 470–590 MHz, EG1: 580–700 MHz, GH1: 700–820).

Backup Frequency
Unique multifunction button on the handheld and body-pack transmitters can be used to switch to a backup frequency (on both transmitter and receiver) should interference be encountered

Small Size
Highest possible wearing comfort due to small size - 64 mm × 70 mm × 17 mm (W × D × H).
