Audio Technica

AT803

https://www.mgmaudio.ch/web/image/product.template/207/image_1920?unique=ba71df1

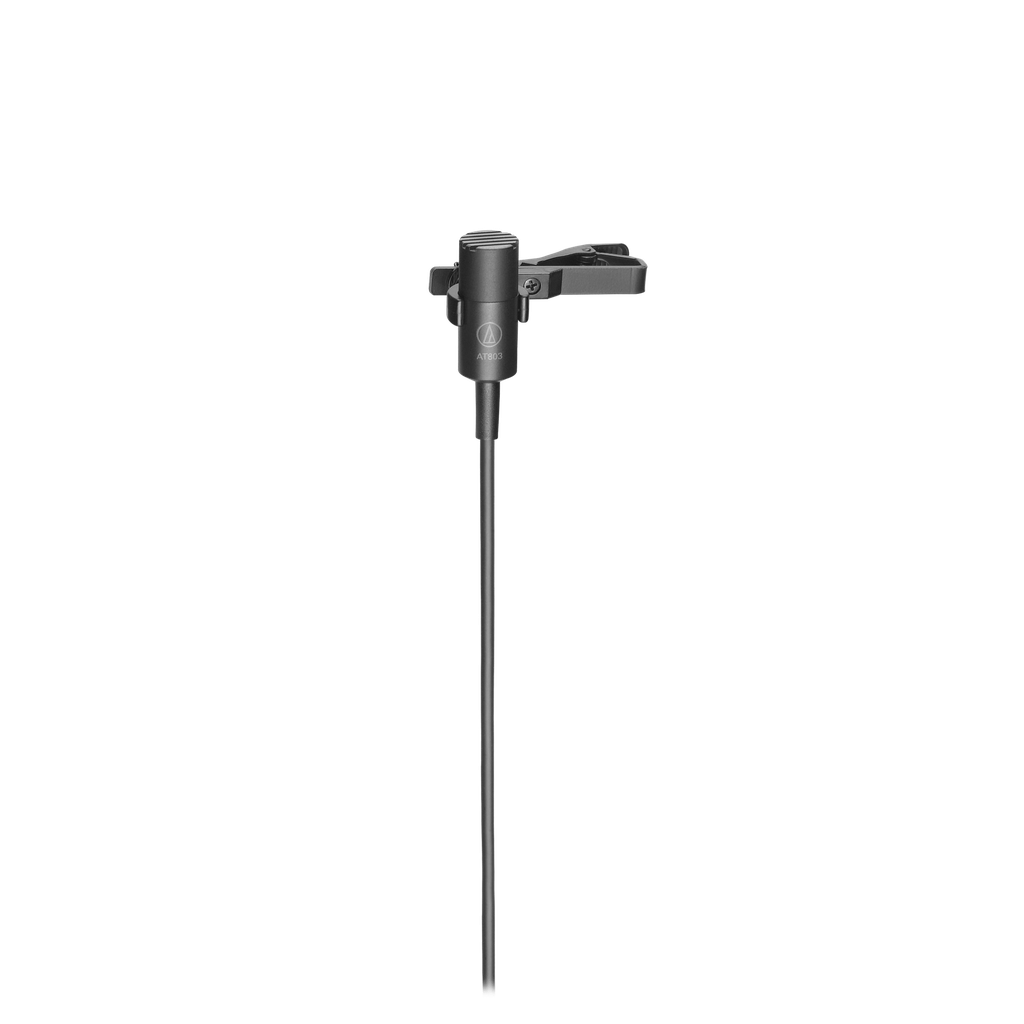

Miniature omnidirectional condenser microphone with power module

CHF 201.67 201.67000000000002 CHF CHF 201.67 Inklusive MwSt.

CHF 201.67 Inklusive MwSt.

Preis auf Anfrage

Wird für Sie bestellt

Diese Kombination existiert nicht.

Geschäftsbedingungen
Versand: 2-3 Arbeitstage

The AT803 provides excellent yet unobtrusive sound pickup for lecturers and stage/TV performers. Designed for clip-on lavalier and musical instrument use, it features an integral 80 Hz high-pass filter that provides easy switching from a flat frequency response to a low-end roll-off. The microphone operates on battery or phantom power.

  • High intelligibility for lecturers and stage/TV performers
  • Provides excellent yet unobtrusive sound pickup
  • UniSteep® filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
  • Operates on battery or phantom power
  • 6' (1.8 m) cable permanently attached to mic, TA3F connector at power module



Microphones
Element Fixed-charge back plate, permanently polarized condenser
Polar Pattern Omnidirectional
Frequency Response 30 - 20,000 Hz
Low Frequency Roll Off 80 Hz, 18 dB/octave
Open Circuit Sensitivity Phantom: -44 dB (6.3 mV) re 1V at 1 Pa
Battery: -46 dB (5.0 mV) re 1V at 1 Pa
Maximum Input Sound Level Phantom: 135 dB SPL, 1 kHz at 1% T.H.D.
Battery: 121 dB SPL, 1 kHz at 1% T.H.D.
Dynamic Range Phantom: 107 dB, 1 kHz at Max SPL
Battery: 93 dB, 1 kHz at Max SPL
Signal-to-Noise Ratio 66 dB, 1 kHz at 1 Pa
Phantom Power Requirements 11-52V DC, 2 mA typical
Battery Type 1.5V AA/UM3
Battery Current/Life 0.4 mA / 1200 hours typical
(alkaline)
Switches Off, on-flat, on-roll-off
Weight Microphone : 2.8 g (0.1 oz) - Power Module : 139 g (4.9 oz)
Cable 1.8 m (6') long (permanently attached to microphone), 2.6 mm (0.10") diameter, 2-conductor, shielded cable with TA3F-type connector
Dimensions Microphone: 25.0 mm (0.98") long, 10.2 mm (0.40") diameter - Power Module: 84.0 mm (3.31") H x 63.0 mm (2.48") W x 22.0 mm (0.87") D
Output Connector Integral 3-pin XLRM-type (on Power Module)

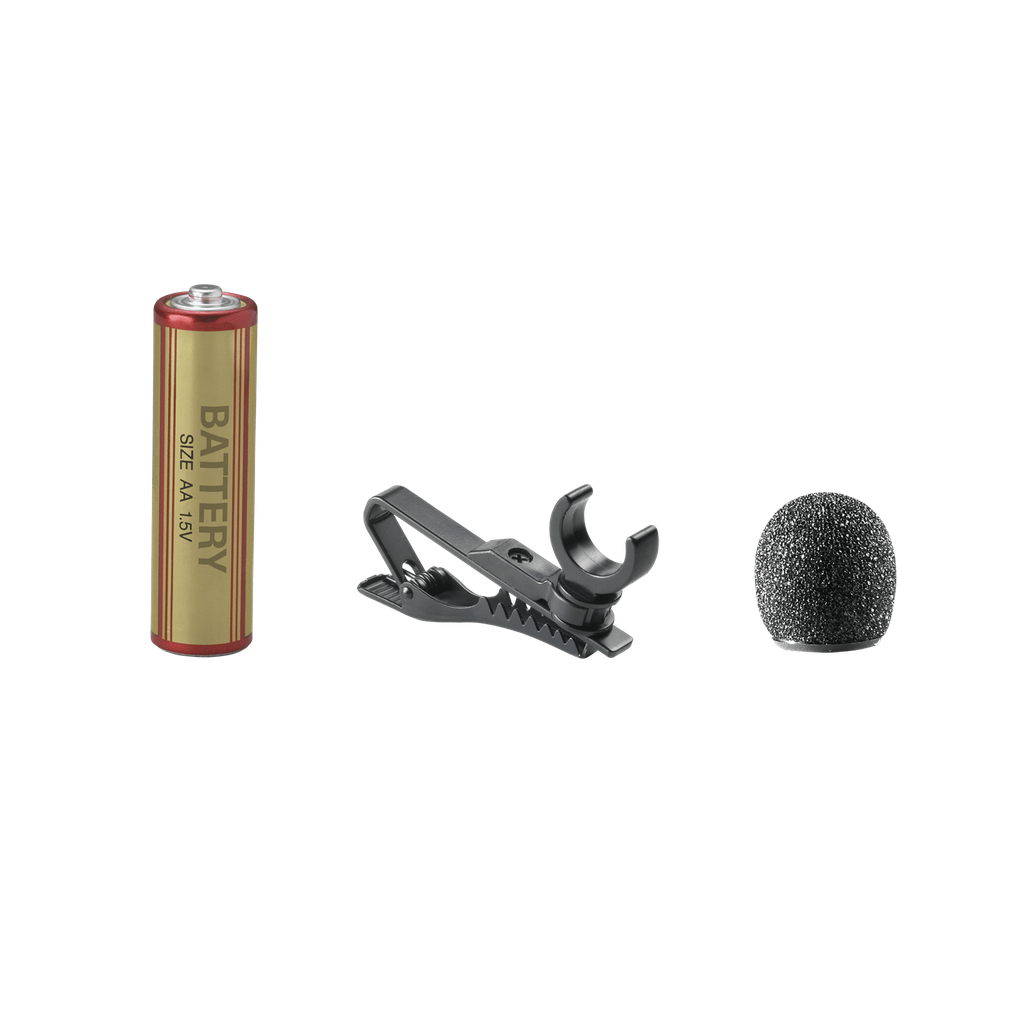

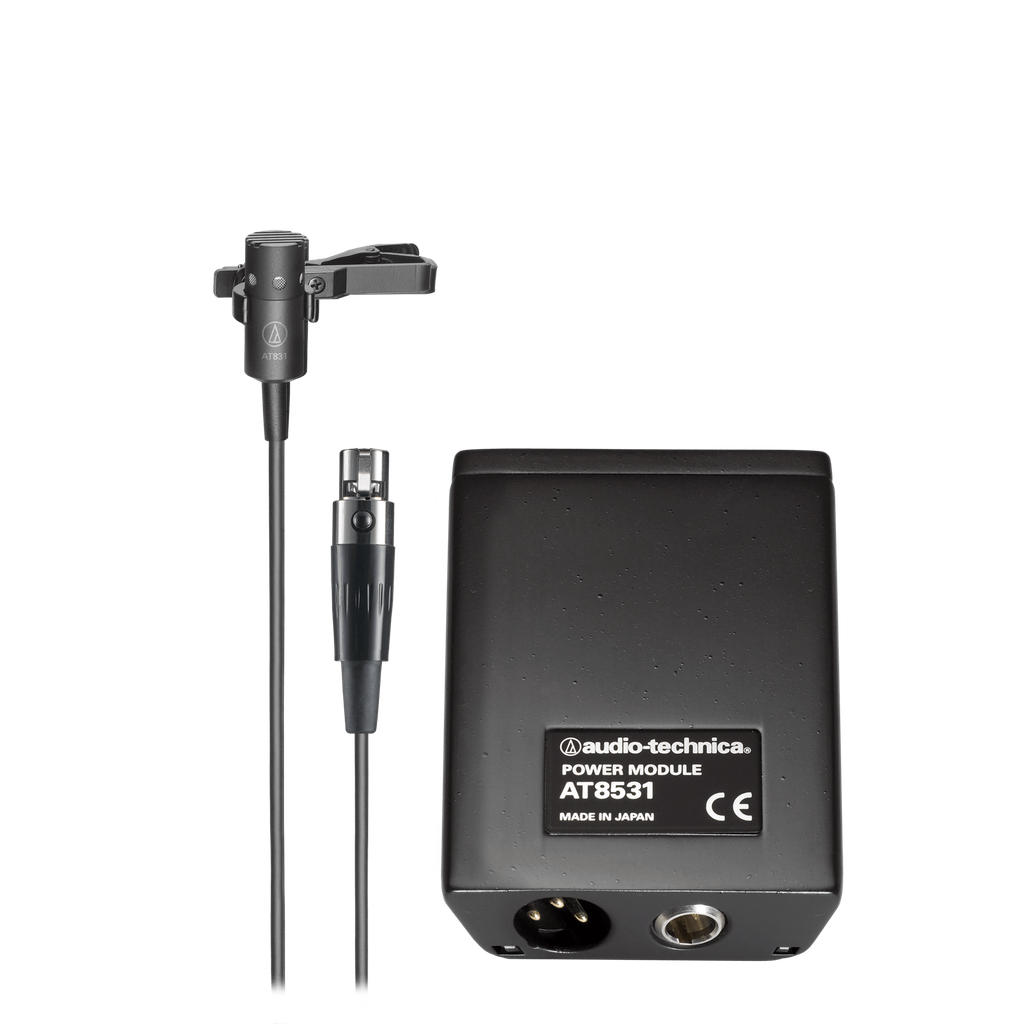

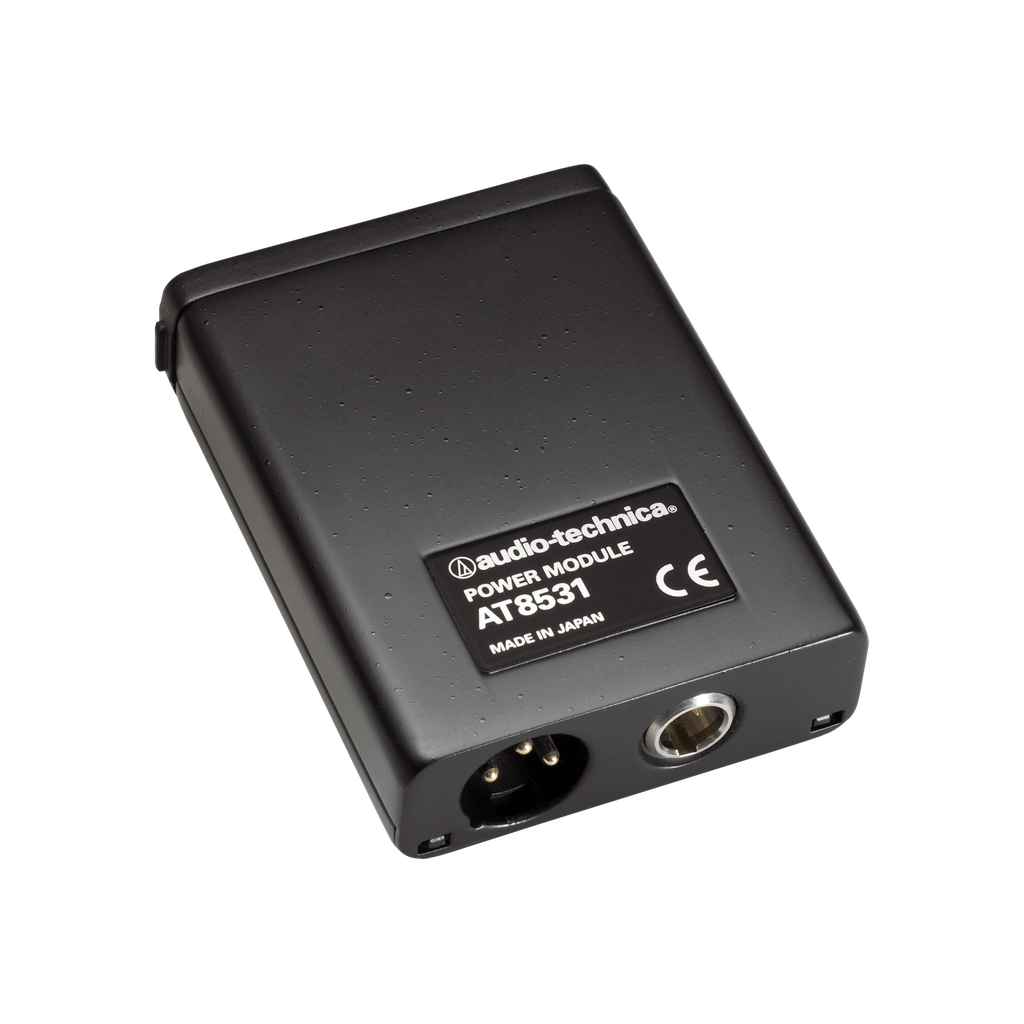

Accessories Included AT8531 power module; AT8419 clothing clip; AT8116 windscreen; battery; protective carrying case
