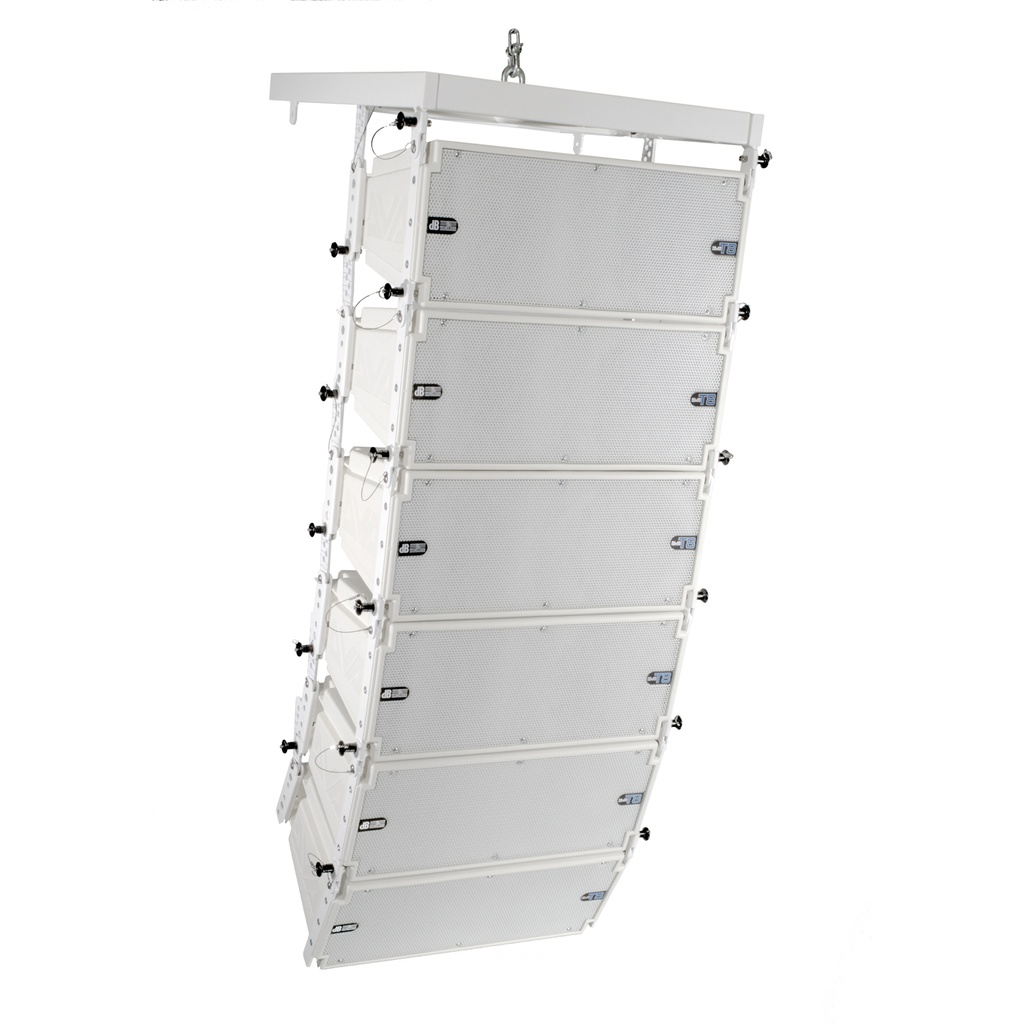

The most advanced incarnation of a string of successful line array systems that started with the DVA T4 and enhanced with DVA T12. Hard to believe that something so petite succeded in packing such a mighty punch.
Technical Data
| Speaker Type | 3-Way Active Line Array Module |
Acoustical data
| Frequency Response [-6dB] | 66 - 18.000 Hz |
| Max SPL | One Unit: 132 dB |
| HF | 2x1 " |
| Voice Coil HF | 1.4 " |
| Directivity | 100x15 ° Single unit |
| MF | 1x 6.5 " |
| Voice Coil MF | 2 " |
| LF | 8 " |
| Voice Coil LF | 2.5 " |
Amplifier
| Amp Technology | Digipro® G2 |
| Amp Class | Class D |
| HF Amp | 175 W RMS |
| MF Amp | 175 W RMS |
| LF Amp | 350 W RMS |
| Cooling | Convection |
Processor
| Controller | DSP 56 bit with double precision filters |
| AD/DA Converter | 24 bit/96 kHz |
| System Presets | 9, (8xHF and Low-mid correction) |
| Limiter | Dual Active LimiterMultiband RMS, Peak, Thermal |
| Crossover Frequency MF-HF | 1900 Hz |
| Slope MF-HF | 24 dB/Octave |
| Crossover Frequency LF-MF | 400 Hz |
| Slope LF-MF | 24 dB/Octave |
Input
| Signal Input | 1x XLR fem, Bal. |
| Signal Output | 1x XLR male, Bal. |
| Network | RDnet remote control RJ45 connector IN/OUT |
| Power Socket | 1x Powercon In1x Powercon Out |
| Voltage Range | 90 - 240 V |
Mechanics
| Housing | Polypropylen PPMetal reinforced |
| Housing Design | Trapezoidal 15° |
| Rain Cover | Included |
| Rigging Points | Integrated rigging hardware |
| Width | 580 mm (23.2 in) |
| Height | 240 mm (9.6 in) |
| Depth | 327 mm (13.08 in) |
| Weight | 14,2 kg (31.3 lbs) |
