Funktionen

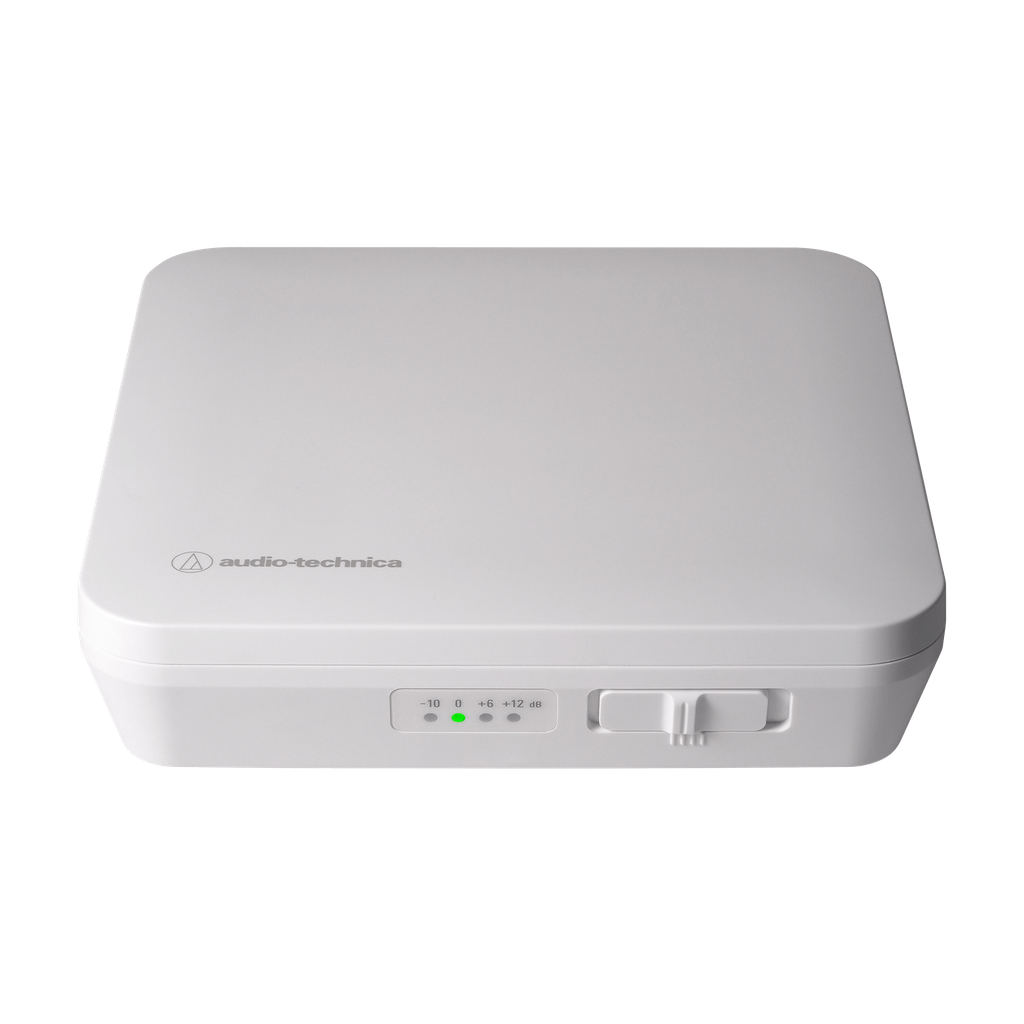

The ATW-A410P is a broadband antenna that can be mounted unobtrusively to almost any room wall or ceiling, thanks to its modern and low-profile design. It features a 4-position switchable amplifier (-10 dB / 0 dB / +6 dB / +12 dB) to compensate for cable loss. The LED indicator allows the user to quickly and easily read the current gain setting
- Enhanced signal pickup for UHF wireless systems (470-990 MHz)
- Four gain level settings (-10 dB / 0 dB / +6 dB / +12 dB)
- LED indicator for gain settings
- Low-profile and modern access point design
- Wall and ceiling mountable
Spezifikationen
| Antenna & Distribution | |
|---|---|
| Impedanz | 50 ohms typical (within specified bandwidth) |
| Verstärkung | -10 dB / 0 dB / +6 dB / +12 dB |
| OIP3 | > 30 dBm typical (within specified bandwidth) |
| Anschluss | BNC-J |
| Bandbreite | 470-990 MHz |
| Betriebstemperatur | -10℃ to 50℃ |
| Abmessungen | 175 x 175 x 50 mm (without bracket) |
| Gewicht | 390 g (without bracket) |
| Zubehör | Mounting bracket, screws |
