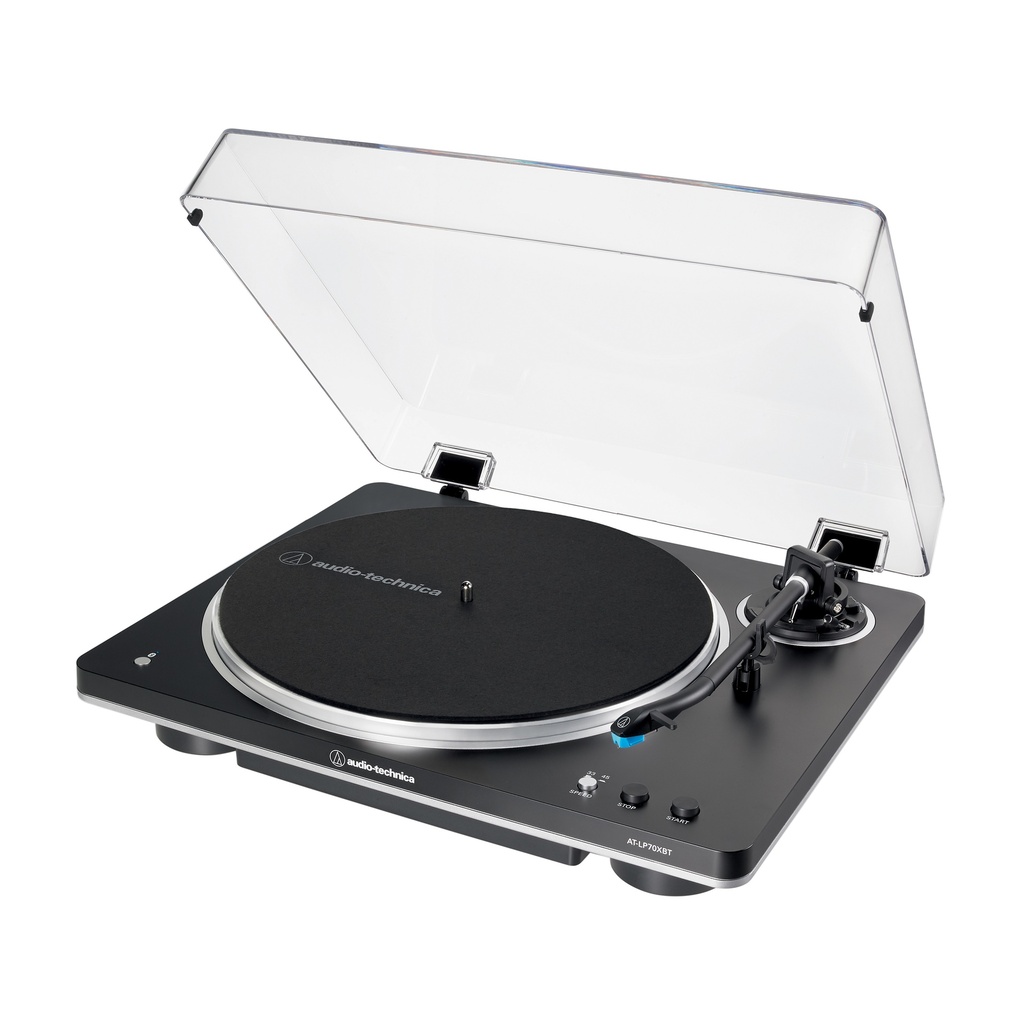

AT-LP70XBT
The AT-LP70XBT Automatic Wireless Turntable is the perfect beginner turntable for those beginning their audiophile journey. Combining the experience of warm, analog audio with the convenience of Bluetooth® technology, you can listen to your vinyl over Bluetooth-enabled speakers, headphones, or other devices, including those that support the high-quality Qualcomm® aptX™ Adaptive audio codec. This user-friendly turntable plays both 33-1/3 and 45 RPM records and, in addition to its Bluetooth wireless technology, has a built-in switchable phono preamp that allows the turntable to connect to a home stereo, powered speakers, or another component, with or without a dedicated phono input.
Easy to use
Equipped with Bluetooth wireless technology for simple connection to powered speakers and headphones, the AT-LP70XBT plays 33⅓ and 45 RPM records automatically at the press of a button. And since the J-shaped tonearm features an integrated AT-VM95C cartridge there’s no installation, balancing or other tonearm setup required
Refine your sound
The turntable’s unique AT-VM95C Integral Dual Moving Magnet™ phono cartridge is compatible with any VM95 Series replacement stylus (see list below on page), making it easy not only to replace the stylus when needed but also upgrade to a higher-quality stylus to enjoy more refined sound.
Features
- Fully automatic belt-drive turntable operation with two speeds: 33-1/3, 45 RPM
- High-fidelity audio with Bluetooth wireless technology
- Connects wirelessly to speakers and other devices equipped with Bluetooth wireless technology or to wired audio systems and powered speakers via included dual RCA output cable
- Compatible with the high-quality Qualcomm® aptX™ Adaptive audio codec
- A fixed-body AT-VM95C Integral Dual Moving Magnet™ phono cartridge is compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application
- Stylish three-piece chassis construction dampens resonance for improved sound quality*
- J-shaped tonearm is engineered to minimize tracking errors
- Tonearm lock reduces risk of stylus damage
- Built-in switchable phono/line pre-amplifier
- Anti-resonance, die-cast aluminium platter with felt mat
- AC adapter handles AC/DC conversion outside of the chassis, reducing noise in the signal chain
- Includes detachable RCA output cable (dual RCA male to dual RCA male with ground), 45 RPM adapter, and removable hinged dust cover
- Available in Black/Silver, Black/Bronze, and White/Silver
*Compared to AT-LP60X.
Specifications
| Turntable | |
|---|---|
| Motor | DC motor |
| Drive Method | Belt-drive |
| Speeds | 33-1/3 RPM, 45 RPM |
| Turntable Platter | Die-cast aluminium |
| Wow and Flutter | < 0.25% (WTD) |
| Signal-to-Noise Ratio | > 55 dB |
| Cartridge Type | This product is equipped with an AT-VM95C Dual Moving Magnet Stereo Cartridge. The cartridge cannot be removed. |
| Output Level | PHONO: 4.0 mV nominal at 1 kHz, 5 cm/sec LINE: 252 mV nominal at 1 kHz, 5 cm/sec |
| Phono Pre-Amp Gain | 36 dB nominal, RIAA equalized |
| Power Consumption | 1.6 W |
| Dimensions | 400 mm (16") × 330 mm (13") × 110 mm (4.3") (W × D × H) |
| Weight | Approx. 2.9 kg (6.4 lbs) |
| Accessories Included | • Dust cover • Felt mat • Platter (with drive belt) • Dust cover hinges • 45 RPM adapter • RCA audio cable (Approx. 1.0 m (3.3')) • AC adapter (Approx. 1.5 m (4.9')) |
| AC Adapter | *Type: FJ-SW1261200500DN Rated Input Voltage: 100 to 240 V AC Rated Input Current: 0.4 A max. Rated Frequency: 50 Hz / 60 Hz Rated Output Voltage: 12 V DC Rated Secondary Current: 0.5 A Cable Length: Approx. 1.5m (4.9') |
| Effective Arm Length | 220 mm (8.7") |
| Overhang | 18 mm (0.71") |
| Tracking Error Angle | Less than 2.0° |
| Replacement Stylus | AT-VMN95C (sold separately) |
| Replacement Belt | AT-LP70X exclusive belt (sold separately) |
| Communication System | Bluetooth version 5.2 |
| Frequency Band | 2.402 GHz to 2.480 GHz |
| Maximum RF Output | 2.5 mW EIRP |
| Maximum Communication Range | Line of sight - approx. 10 m (33') |
| Modulation Method | GFSK, Pi/4DQPSK, 8DPSK |
| Compatible Bluetooth Profile | A2DP |
| Support Codec | Qualcomm® aptX™ Adaptive audio, Qualcomm® aptX™ audio, SBC |
| Notes | *The included AC adapter may differ depending on the country of sale. Check the rating label on the AC adapter. For details, contact your local Audio-Technica dealer. For product improvement, the product is subject to modification without notice. |
