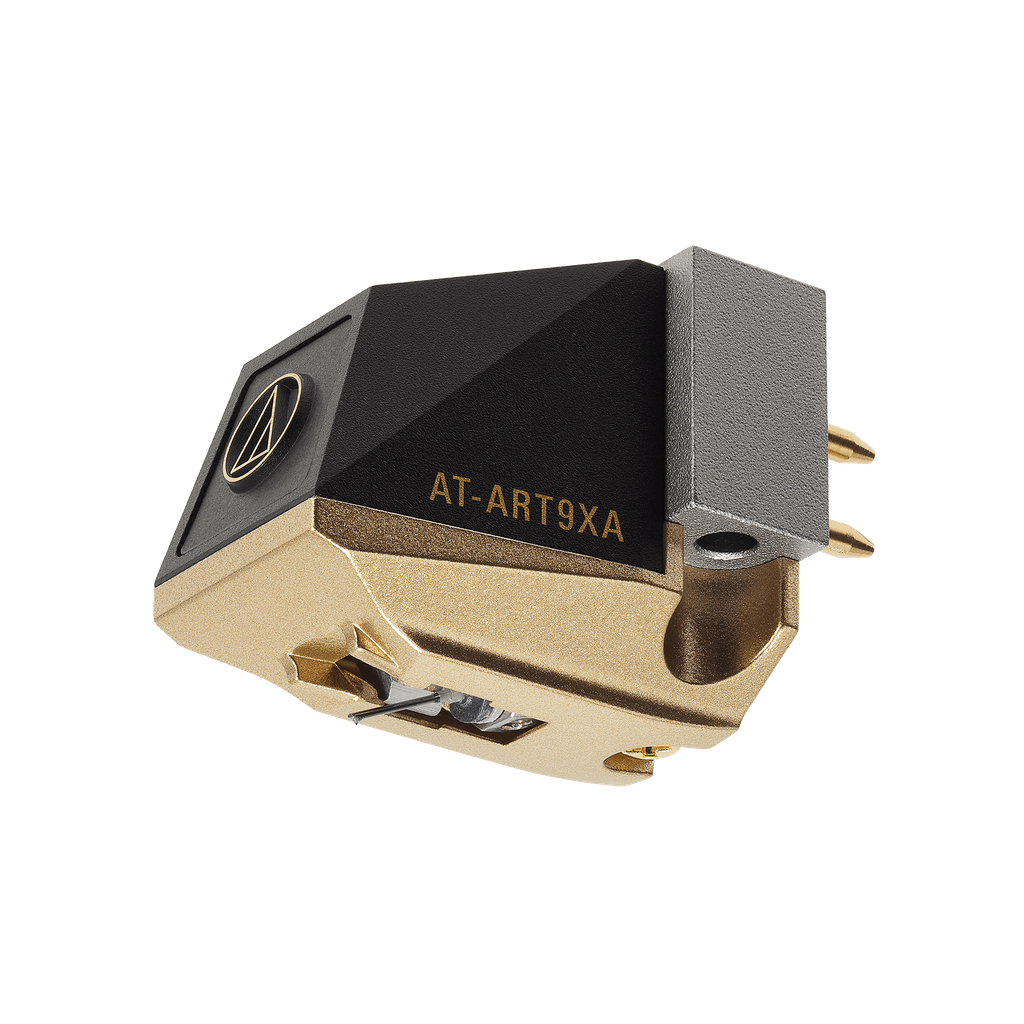

Audio-Technica

AT-ART9XA

Dual Moving Coil Cartridge (Non-Magnetic Core)

Funktionen

Non-magnetic core moving coil cartridge offers superior spatial representation
Dual moving coils are aligned in an inverted V shape, providing high separation and wide response for clear sound localization and minimal distortion
Shibata stylus ensures accurate high and mid-low range reproduction, and the 0.28 mm diameter solid boron cantilever provides excellent response characteristics
Neodymium magnet and permendur yoke significantly increase magnetic energy
Redesigned coil armature provides an output voltage of 0.2 mV (1 kHz, 5 cm/sec)
PCOCC coils ensure high-fidelity transmission
Machined aluminum base supports both the magnetic circuit and the vibration system, ensuring excellent playback stability
Hybrid body of machined aluminum and high-rigidity plastic reduces undesirable parasitic resonance
Threaded cartridge mounting holes allow easy installation to a headshell or integrated tonearm

Cartridge & Stylus
Frequenzbereich	20-50,000 Hz
Kanaltrennung	30 (dB at 1 kHz)
Vertikaler Abtastwinkel	20°
Vertical Tracking Force	1.6-2.0 g (1.8 g standard)
Schaftform der Nadel	Nude
Empfohlene Lastimpedanz	Min. 100 ohms (when head amplifier connected)
Spulenimpedanz	12 ohms (1 kHz)
DC Widerstand	12 ohms
Spuleninduktivität	2.5 µH (1 kHz)
Ausgangsleistung	0.2 mV (1 kHz, 5 cm/sec.)
Kanalbalance am Ausgang	0.5 dB (1 kHz)
Nadelschliff	Shibata
Nadelträger	0.28 mm diameter solid boron
Statische Nadelnachgiebigkeit	20 x 10-6 cm/dyne
Dynamische Nadelnachgiebigkeit	10 x 10-6 cm/dyne (100 Hz)
Befestigung	Half-inch
Gewicht	8.5 g (0.30 oz)
Abmessungen	17.3 mm (0.68") H × 16.8 mm (0.66") W × 25.0 mm (0.98") D
Beiliegendes Zubehör	Non-magnetic screwdriver; 2 washers; cartridge installation screws (M2.6) (5.0 mm × 2, 8.0 mm × 2, 10.0 mm x 2, 12.0 mm x 2); protector; brush
Threaded Hole	M2.6 x 2
Notes	Note: moving coil cartridges require receivers or preamps with compatible inputs; their stylus assemblies are not field-replaceable.
