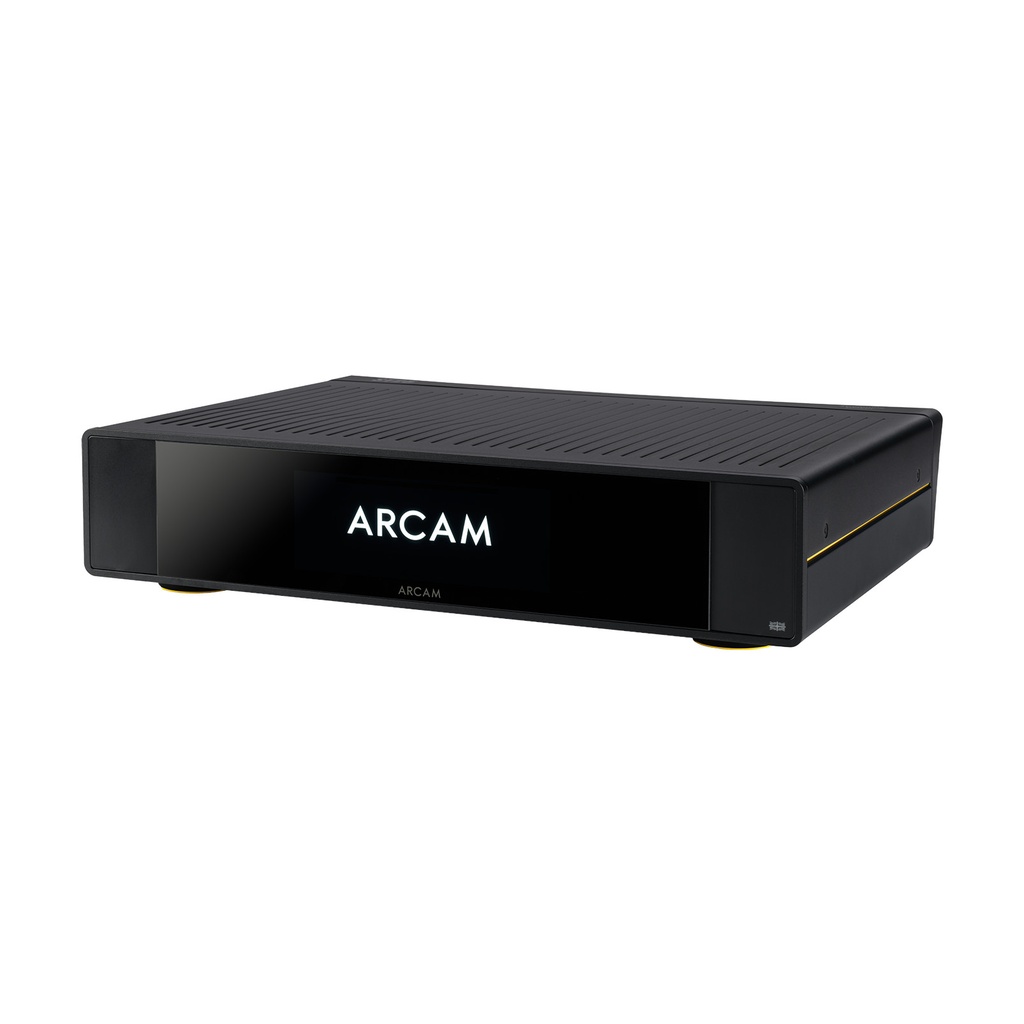

The ST25 is an all-new digital audio player expertly designed in Cambridge, UK, with an all-new digital audio and streaming platform, new linear toroidal power supply design, new user interface and new app.
Exquisite sound quality has been achieved through thoughtful engineering of a new 6-layer digital audio and streaming platform which includes a ground plane through the entire board to keep noise and interference away from the sensitive audio components. These components include the latest Hyperstream iV DAC topology from ESS, in a balanced configuration with advanced Jitter elimination. Sound quality is enhanced further with a new linear toroidal transformer power supply design that drives the entirety of the internal operation with lower noise, and a switching supply that only operates for peak efficiency when in standby.
Up front, the ST25 features a new, bonded 6.5" high-resolution display to show album artwork and metadata which is clearly legible from the comfort of your preferred armchair. For playback, an inclusive feature set supports most smart phones and tablets, as well as popular streaming services. Connecting the ST25 to your home network with Wi-Fi is quick and straightforward with our ARCAM Radia App. Once connected, enjoy instant playback using Apple Airplay, Google Cast, Spotify Connect, Tidal Connect, Qobuz Connect, and Roon.
The ARCAM ST25 is the ultimate high resolution audio upgrade for any Hi-Fi system, especially the ARCAM Radia A25. It includes a control link for ARCAM Radia amplifiers, allowing the 2 components to act as one from your device. Sonically, this combination offers pure audio paradise, thanks to the benefits of isolated components with individual power supplies.
• All new, ultra High-Resolution Streaming Platform to deliver on sound quality and user experience
• New Linear power supply design to deliver peak sound performance
• High-resolution display for clearly visible album artwork and metadata
• Perfect match for the ARCAM A25 integrated amplifier
• Supports up to 32 bit / 384 kHz Hires audio
• Roon Ready
• Works with Spotify Connect, Tidal Connect and Qobuz Connect
• Supports Apple Airplay and Google Cast
• Setup with ARCAM Radia App for presets, Internet Radio and Podcasts
• Plastic free packaging
Services
Works with (apps):
ARCAM Radia
Spotify (Connect)
Tidal (Connect)
Qobuz (Connect)
Roon Ready
Works with (services):
Apple Airplay
Google Cast
ARCAM Radia supported services (Global):
Internet Radio
Podcasts
UPnP
USB Media (using USB-A mass storage input)
Audio Section
Supported media: FLAC, WAV (LPCM), AAC, ALAC, AIFF, DSD (up to 256), MP3, MP4, OGG, WMA
Supported Bit depth: 16, 24, 32
Supported sample rates (kHz): Up to 384 kHz
Gapless Playback: Yes
Digital Audio Outputs 1x Coaxial (RCA), 1x Optical (Toslink)
Analogue Audio Outputs 1x Stereo (RCA) pair
Wireless Specification
Wi-Fi Network: IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
2.4G Wi-Fi Transmitter Frequency Range and Power:
2400-2483.5 MHz (USA 11 Channels, Europe and Others 13 Channels): <20dBm
5G Wi-Fi Transmitter Frequency Range and Power:
5150-5250 MHz <23dBm
5250-5350 MHz <20dBm
5470-5725 MHz <20dBm (Not used in China)
5725-5850 MHz <14dBm for EU, <33dBm for other regions.
General
Mains voltage: 100V or 110–120V or 220–240V, 50–60Hz
Power consumption: 15W
Power consumption (Eco standby): <0.5W
Dimensions W x D x H (including feet):
432 x 329 x 99mm
Weight (net): 5 kg
Weight (packed): 7 kg
Supplied accessories:
Mains lead(s)

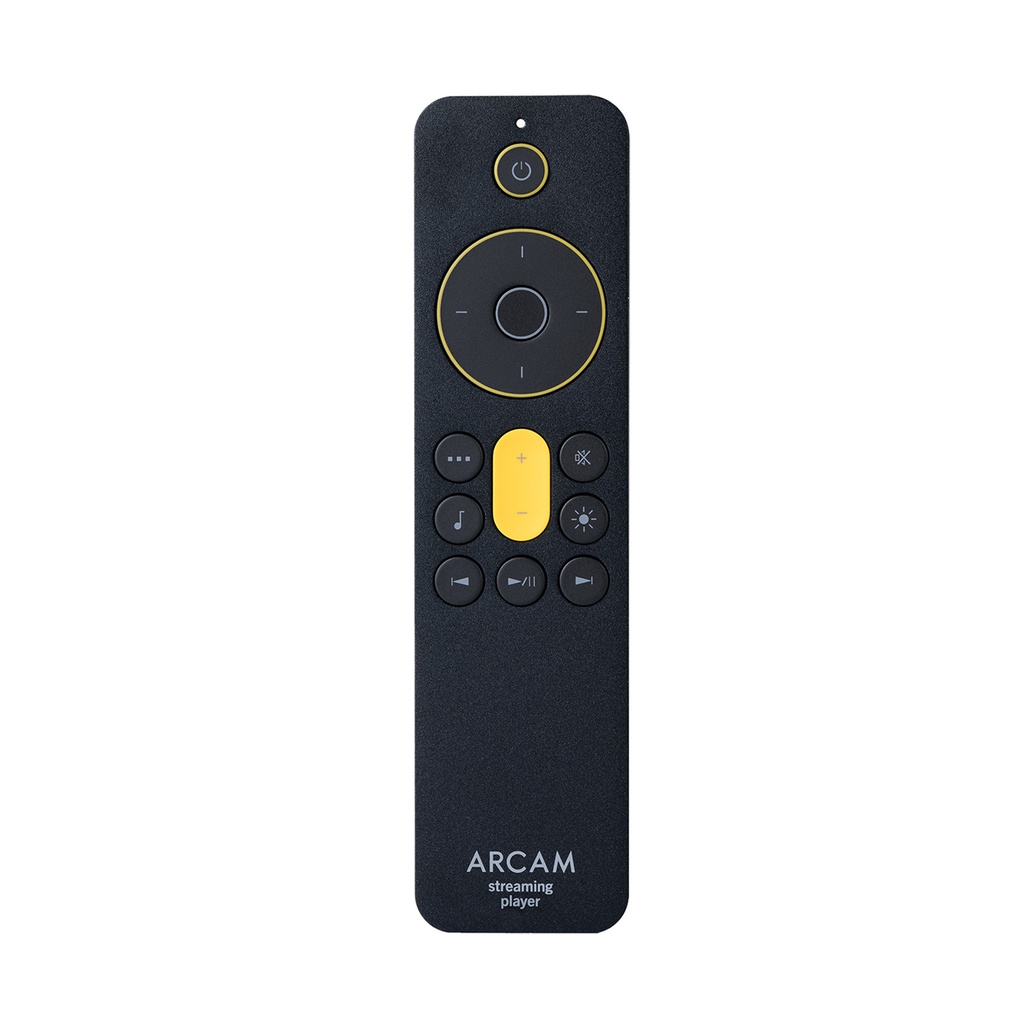

Remote control with 2 x AAA batteries
Control Cable
Quick Start Guide
Important Safety Instructions
