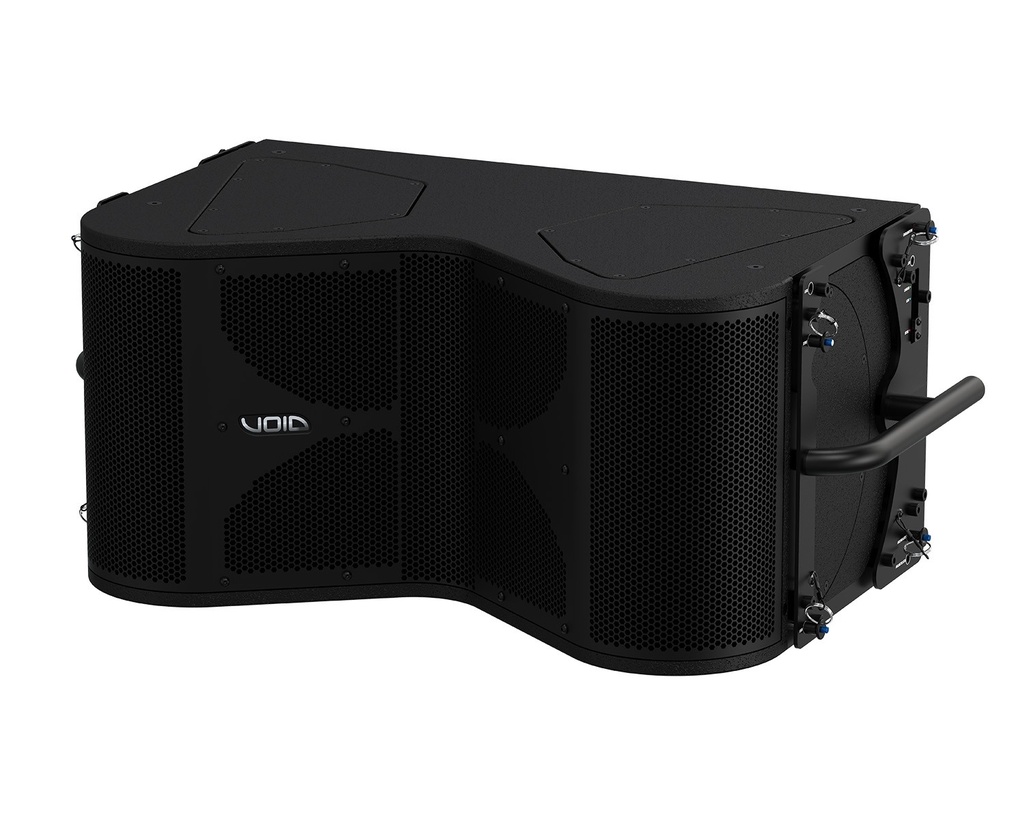

ARCLINE 212

Extended Frequency Ranges From 50 Hz to 200 Hz

The Arcline 212 is elegantly composed, embracing a modern yet minimalist design. The loudspeaker operates as a compact sub bass system, with a lightweight birchwood enclosure, purposely designed to extend the low frequency range of the Arcline array.

Cardioid Configuration Integrated in the Rigging

Conveniently designed, the Arcline 212 is flyable with the Arcline 8, useful for applications where suspended bass is required. Perfectly suited to large venues, medium to large-scale touring, as well as indoor, outdoor or live music events.

Key Features

• Extended frequency ranges from 50 Hz to 200 Hz
• Flyable with Arcline 8
• Cardioid configuration integrated in the rigging
• FEA optimised porting

Full Specifications

• Frequency response: 50 Hz - 200 Hz
• Efficiency¹: 99 dB 1W/1m
• Nominal impedance: 2 x 8 Ω
• Power handling²: 2 x 900 W AES
• Maximum output³: 131 dB cont, 137 dB peak
• Driver configuration: 2 x 12” low frequency drivers
• Dispersion: Array dependant
• Connectors: 2 x 4-pole speakON™ NL4
• Weight: 42 kg (92.6 lbs)
• Enclosure: 15 mm multi-laminate plywood
• Rigging: 304 stainless steel rigging for use with Arcline 8 when flown or ground stacked
• Finish: Textured TourCoat polyurea
• Grille: Perforated steel with foam filler
