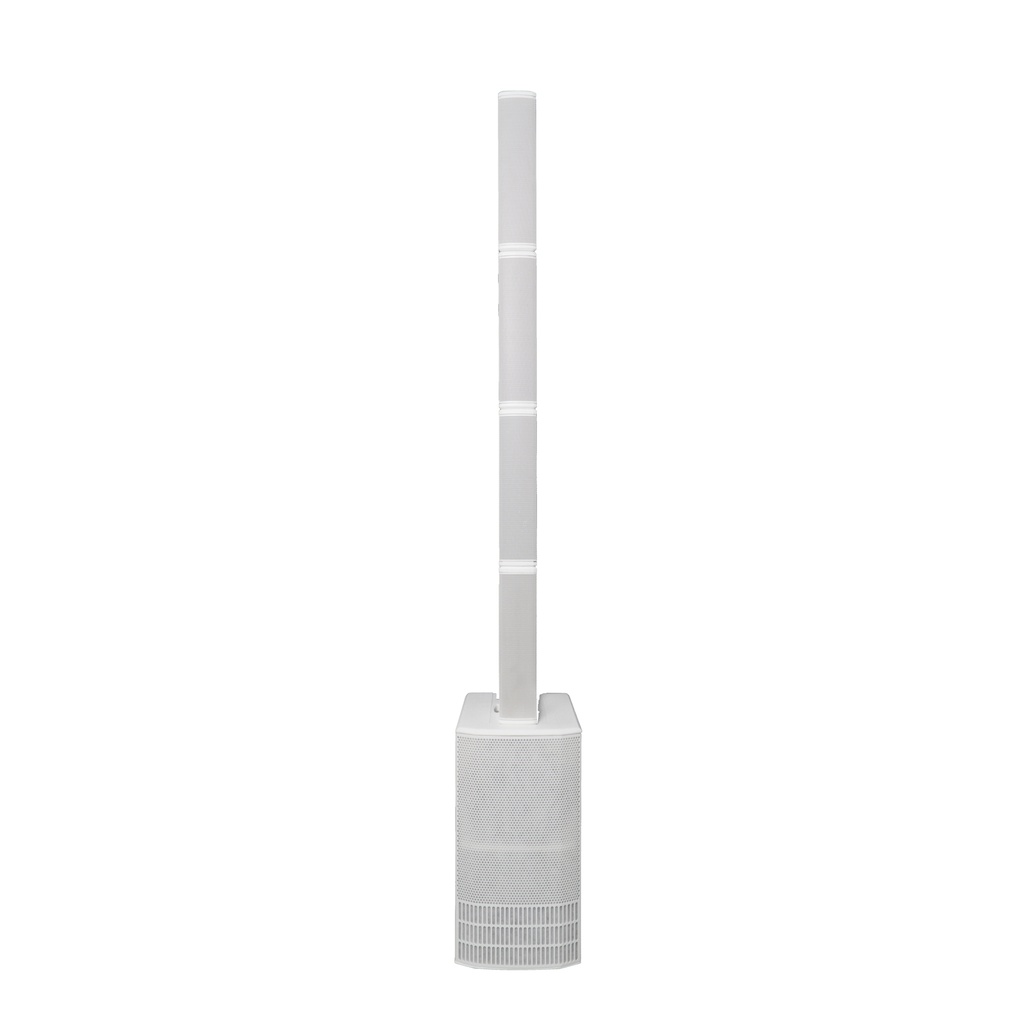

Es1203-Front-White-1

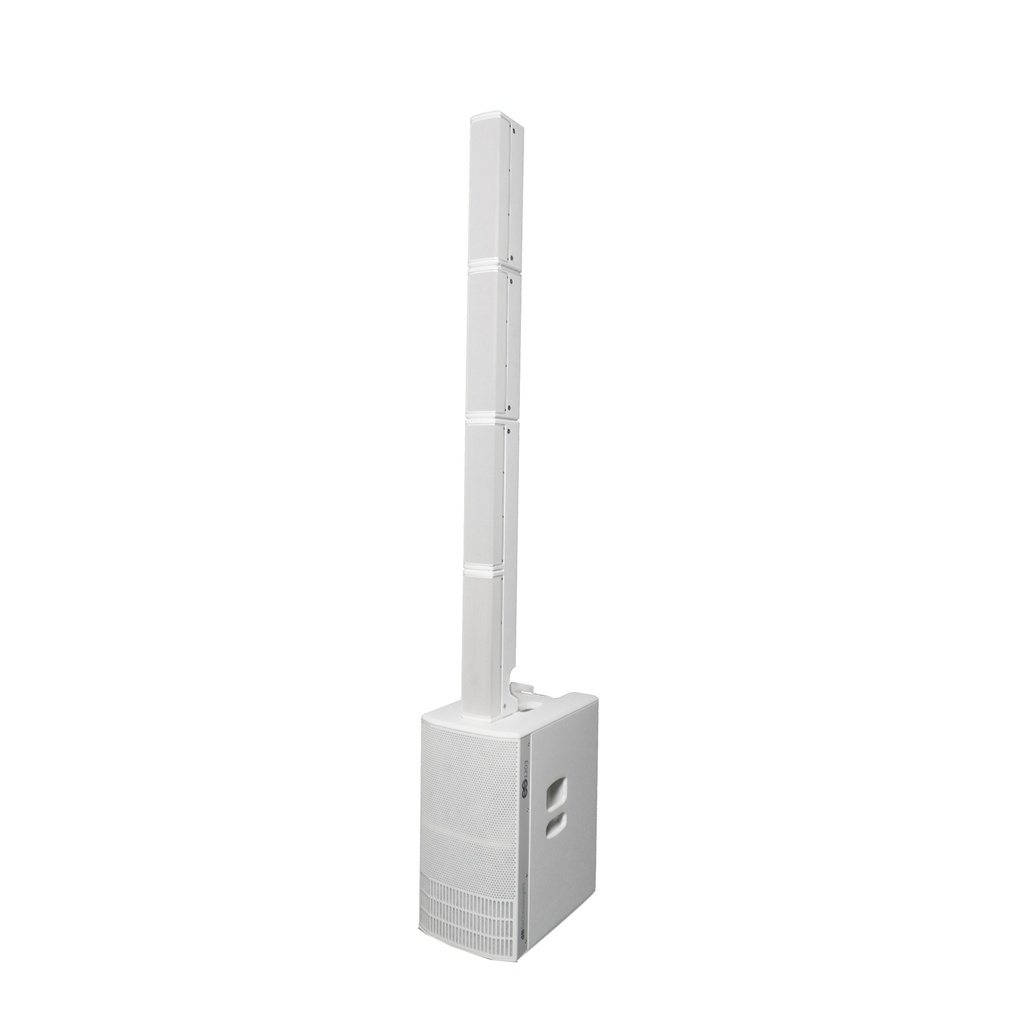

Es1203-Three-fourths-White-1

dB Technologies

ES-1203 WH

Active, 2x12", 8x4", Stereo-Säulensystem, 2400W, white

Dieses Produkt ist nicht länger verfügbar.

Geschäftsbedingungen
Versand: 2-3 Arbeitstage

ES family grows stronger with ES 1203, a complete stereo sound system encompassing its predeccessors’ versatility with striking SPLs (the system features a 2400W last-generation power amp) and an impressively coherent throw pattern.

Technical Data

Speaker Type

3-amped Stereo System withtwo full-range tops and one subwoofer

Acoustical data

Frequency Response [-10dB]	35 - 20.000 Hz
Max SPL	132 dB
MF - HF	8x4", v.c. 1"
Type MF - HF	Neodymium
LF	2X12"
Directivity	97x60°

Amplifier

Amp Technology	Digipro® G4
Amp Class	Class-D
Power Amp Peak	2400 W
Controls	1xOLED Display with rotary encoder w/button 1x Audio signal monitoring LED1XUSB port (service data)
Power Supply	Fullarange with PFC
Power connection	VDE Socket
Cooling	Convection

Processor

Controller	DSP 56 Bit
Converter AD/DA	24 Bit/48 Hz
Limiter	Peak, RMS, Thermal
Crossover Frequency LF-MF	160 Hz
Digital Steering	Up/Down/Far

Input

Input Channels:	1x Mic/Instrument Combo (XLR/Jack)2xMic/Line Combo (XLR/Jack)1XBluetooth built-in receiver
Mix Output	1x XLR balanced output

Mechanics

Housing (Subwoofer)	Plywood with full metal grille
Housing (Tops)	Plywood with full metal grille
Pole Mount	36 mm (M20 Thread)
Handles (subwoofer)	1xtop 1x lateral side
Width (Top)	110 mm (4.33 in)
Height (Top)	460 mm (18.11in)
Depth (Top)	160 mm (6.30 in)
Width (Subwoofer)	360 mm (14.17 in)
Height (Subwoofer)	680 mm (26.77 in)
Depth (Subwoofer)	545 mm (21.46 in)
Weight (Top)	3.3 Kg – 7.27 lbs.
Weight (Subwoofer)	29.3 Kg – 64.59 lbs.
