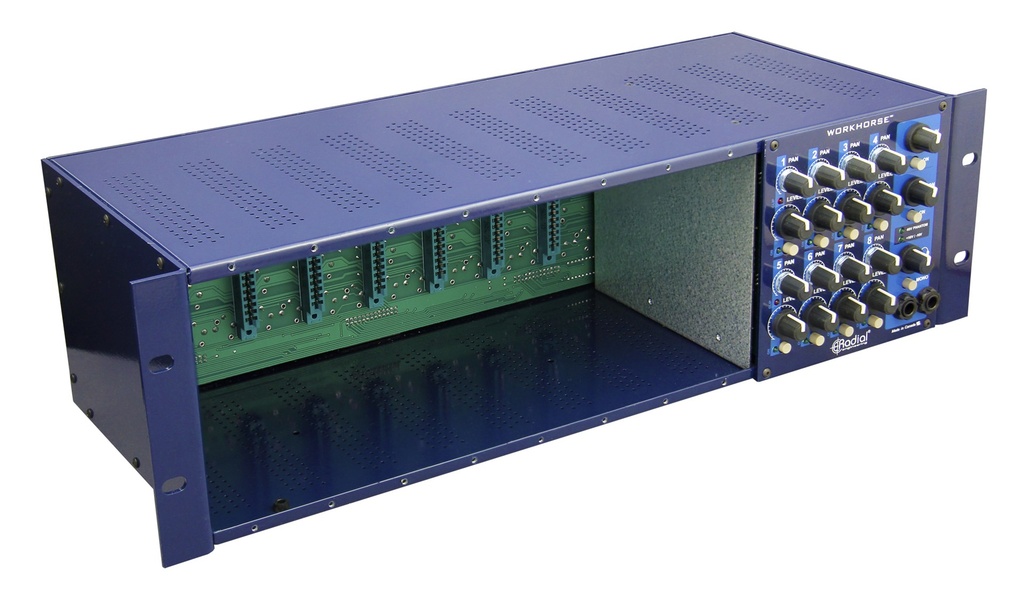

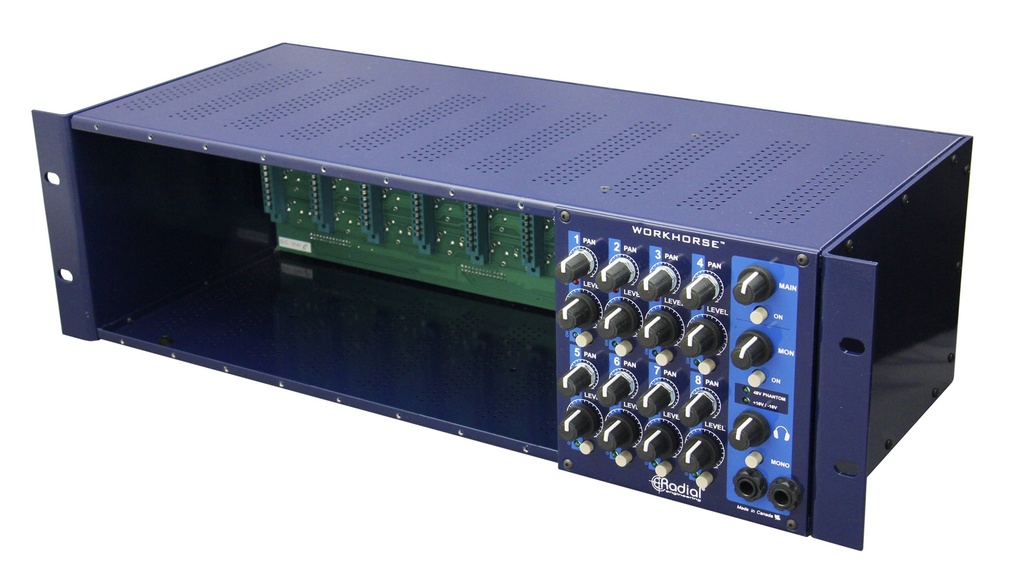

Workhorse 500 Series Rack
The Radial Workhorse is a modular 500-series rack that combines an extensive patching system with an analog summing mixer to create an incredibly flexible studio environment.
- 500 series 8 slot rack with 8×2 summing mixer
- Plenty of current for power hungry modules
- Dual output headphone buss for monitoring
- DB25, TRS & XLR I/O for flexible patching
Create Unique Channel Strips
Compatible with all API 500 series modules, the Workhorse provides more power and easier connectivity than a typical rack. Not only is it equipped with a variety of I/O options, but signal to be routed from one module to the next without cables to easily create channel strips. Compatible EQ and compressor modules can also be stereo linked with the flick of a switch. A special Omniport jack delivers module-specific functionality that can range from an extra output, key input, or effects insert depending on the module. Finally, an external 1600 mA power supply provides enough current to ensure each module is powered correctly.
Mix Outside The Box
Unique to the Workhorse is a built-in summing mixer that allows module outputs to be turned on and off, level matched, and panned to a Jensen transformer coupled stereo output. Multiple Workhorses can be linked in larger mixer setups, and a high-quality headphone output allows for monitoring without latency when tracking.
