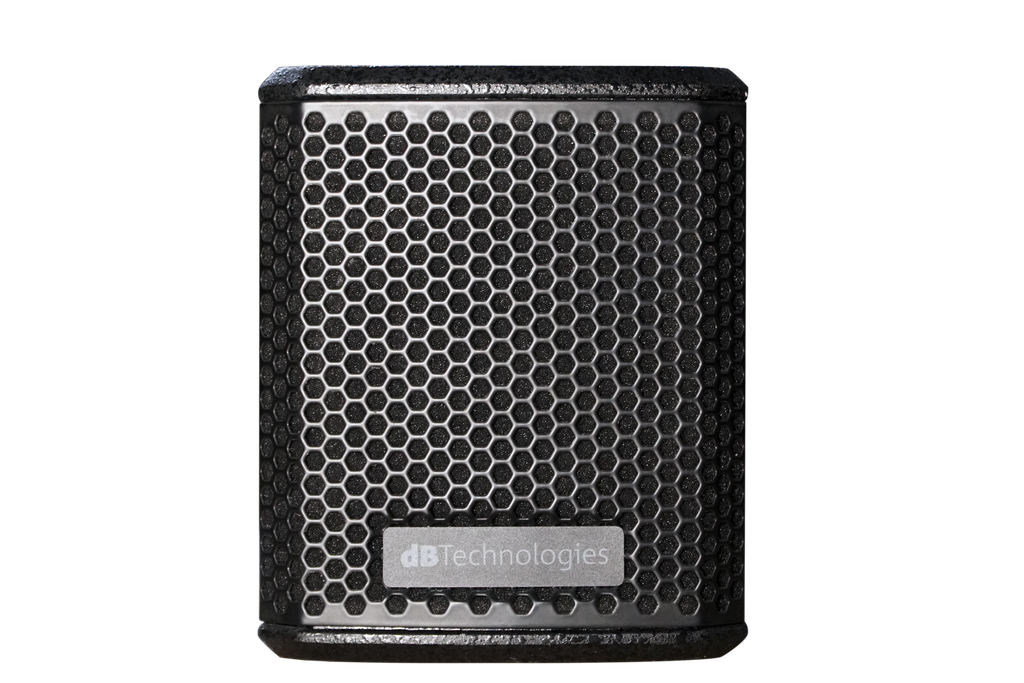

LVX P5 is a passive speaker equipped with a full-range single transducer (5” LF and 1” HF).
The most efficient acoustic design, allowing an extended coverage pattern (135°x135°) and a vigorous SPL up to 115 dB, makes this mini full range system the perfect solution to render speech or background music in small venues.The solid plywood enclosure features a clean, install-friendly design with rigging points on top and side to ease installation on ceiling or wall via the included bracket. LVX P are equipped with Phoenix connectors. 8 or 16 Ohm versions are available for use with dBTechnologies ATI amplifiers. The cabinet comes in black or white, just like all other cabinets in LVX series.
Technical Data
| Speaker Type | Full-range wooden passive loudspeaker |
Acoustical data
| Impedance | 8 Ohms or 16 Ohms |
| Frequency Response [-10 dB] | 100 Hz -20 kHz |
| Max SPL | 115 dB |
| Directivity | 135x135° |
| LF | 5", 1" v.c. |
| Peak Power Handling | 120 W |
Input
| Connector Type | 2-pole Phoenix connector type |
Mechanics
| Housing | Plywood |
| Accessories | Wall/ceiling mounting bracket (included) |
| Width | 165 mm (6.49 in) |
| Height | 198 mm (7.79 in) |
| Depth | 175 mm (6.88 in) |
| Weight | 2.2 kg (4.8 lbs) |
