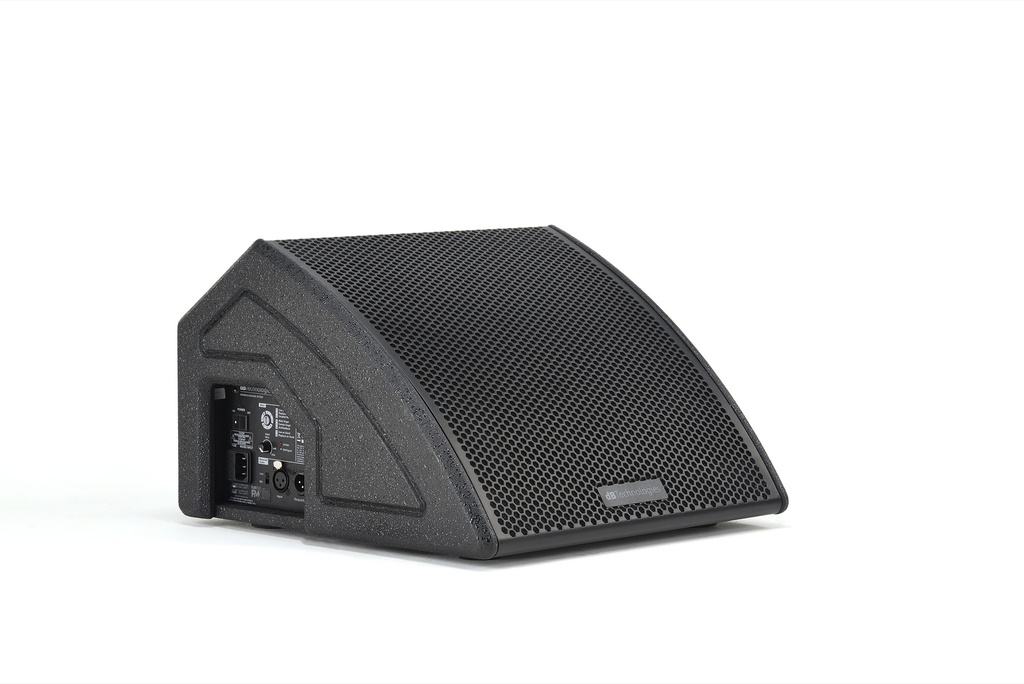

FMX is an active 2-way coaxial stage monitor series encompassing 3 models (10,12 and 15”) equipped with 400 RMS (for FMX 10) or 600 RMS (for FMX 12 and 15) Class D amplifiers.
The wedge’s coaxial acoustic design, together with its custom horn design and its advanced DSP featuring linear phase FIR filters, provides an even, highly-intelligible sound.
In facts, FMX’s horn design allows a very precise dispersion pattern (60° horizontal and 90° vertical) which can be easily reversed (90° horizontal and 60° vertical) by rotating the horn, adapting the wedge to the habits of the user.
Moreover, 8 on-board presets optimize EQ for different needs making FMX a skilful yet easy-to-use tool for performers of every kind.
All wedges of the series feature a peculiar front-rear grille design, a single handle integrated on the bottom side of the plywood cabinet and a 36mm pole mount on side panel which further enhance FMX versatility.
Technical Data
| Speaker Type | 2-Way Active Coaxial Stage Monitor |
Acoustical data
| Frequency Response [- 10 dB] | 57 - 19.000 Hz |
| Max SPL | 125 dB |
| HF | 1", 1" v.c. |
| Directivity | 60°X90° |
| Horn | Rotatable |
| LF | 10", 2" v.c. |
Amplifier
| Amp Class | Class D |
| Peak Power | 800 W |
Processor
| Controller | DSP 28/56 bit |
| AD/DA Converter | 24 bit/48 kHz |
| System Presets | 8 presets |
| Limiter | Peak, RMS, Thermal |
| Advanced DSP Function | FIR Filters |
| Crossover Frequency | 1800 Hz |
| Slope LF/HF | 24 dB/oct |
Mechanics
| Housing | Plywood |
| Housing Design | Multifunctional |
| Handles | 1 integrated on bottom side |
| Pole mount | 36 mm |
| Width | 390 mm (15.35 in) |
| Height | 268 mm (10.55 in) |
| Depth | 411 mm (16.18 in) |
| Weight | 11.3 kg (24.9 lbs) |
