Technical Data

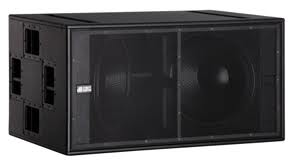

| Speaker Type | Active Bassreflex-Horn Subwoofer |
Acoustical data
| Frequency Response [+/- 3dB] | 30 - 120 Hz |
| Max SPL | 141 dB |
| Directivity | Omnidirectional, Cardiod Option with DSP setup |
| LF | 2x18 " |
| Voice Coil LF | 4 " |
Amplifier
| Amp Technology | Digipro® G2 |
| Amp Class | Class D |
| Power Supply | 3 kW SMPS |
| LF Amp | 3000 W RMS |
| Cooling | Convection |
Processor
| Controller | DSP 56 bit |
| AD/DA Converter | DSP 24 bit/48 kHz |
| System Presets | X-Over,Delay |
| Phase | 0, 180 ° |
| Limiter | RMS, Peak, Thermal |
| Delay Option | 0-4.5 ms internal |
| Crossover Frequency LF-MF | 75-120Hz | steps of 5Hz |
| LF-Xover out slope | 24 dB/Octave |
Mechanics
| Housing | Multiplex plywood |
| Housing Design | Rectangular |
| Handles | 4x Per Side |
| Accessory | Dolly, Wheels 100mm,Dust Cover, Rain Cover |
| Rigging Points | 2xPick Points on top to fixDRK10/20 rigging frames |
| Width | 1100 mm (44 in) |
| Height | 580 mm (23.2 in) |
| Depth | 720 mm (28.8 in) |
| Weight | 83 kg (182.98 lbs) |
