Audio Technica

BP3600

https://www.mgmaudio.ch/web/image/product.template/650/image_1920?unique=61eed19

Immersive Audio Microphone

CHF 4,616.10 4616.1 CHF CHF 4,616.10 VAT Included

CHF 4,616.10 VAT Included

Preis auf Anfrage

Auf Lager

Diese Kombination existiert nicht.

Geschäftsbedingungen
Versand: 2-3 Arbeitstage

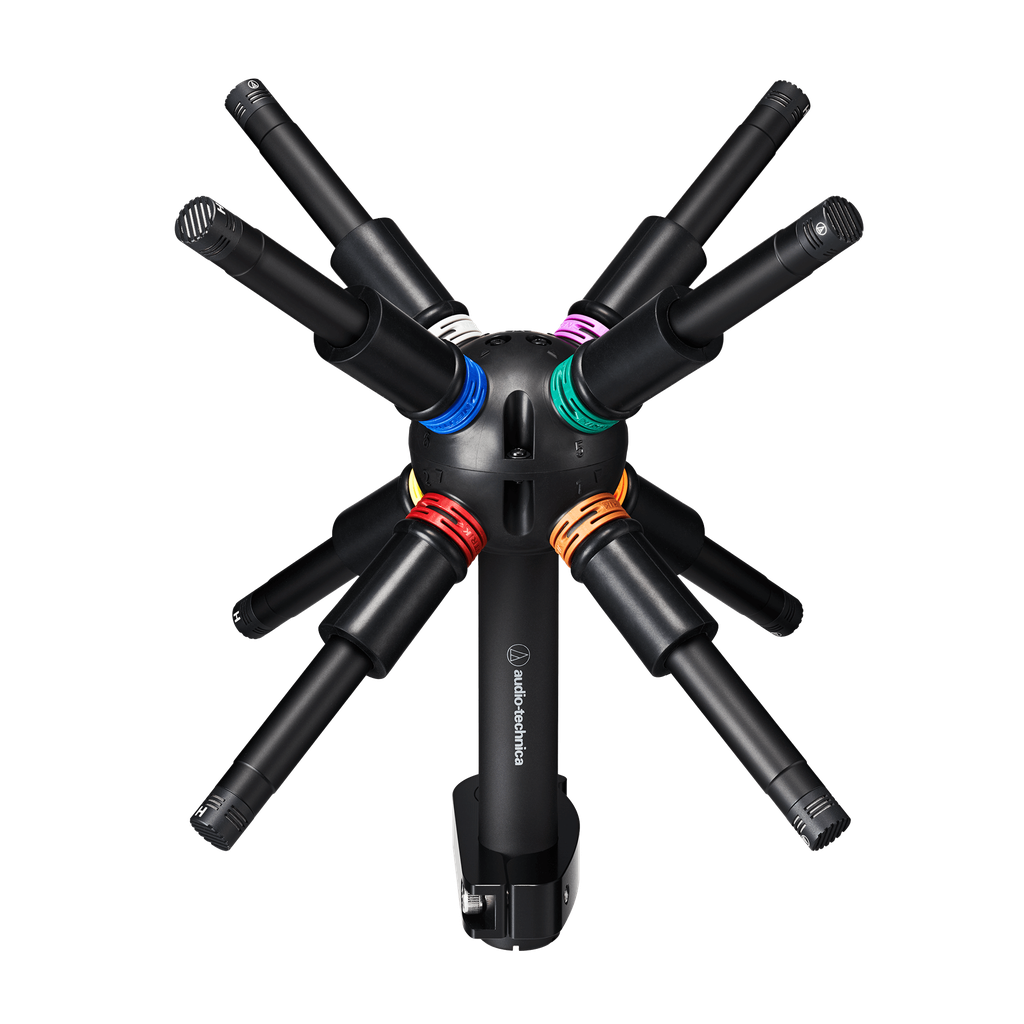

The BP3600 immersive audio microphone is a practical, state-of-the-art broadcast solution for capturing ambient sound beds at sporting events, movie sets, concerts, festivals and more
Captured audio image can be integrated easily as an audio channel bed into immersive audio codecs like MPEG-H 3D Audio without further processing

  • 8 microphone assemblies attach and detach quickly from the main unit for easy setup and teardown
  • 12 mm hypercardioid capsules keep the microphone small for discreet placement, while providing low diffuse-field correlation between signals
  • Color-coded and numbered rings provide easy channel reference for each of the eight microphones
  • Water protection caps guard TA3F microphone connectors against inclement weather
  • A safety ring provides additional security when suspending the microphone above spectators in grandstands, stadiums or auditoriums
  • 16-pin LEMO output connector is situated at the end of the microphone’s grip for easy attachment of the included breakout cable or extension cables (available separately)
  • Includes AT8116 windscreen (x 8), mic isolation stand clamp, 5/8"-27 to 3/8"-16 threaded adapter, 5 m (16.4') LEMO-to-XLRM (x 8) breakout cable, soft carrying case
  • Requires 48V DC phantom power per channel
  • Optional accessories – BP3600/WS Rycote BBG Windshields, BP3600/WJ Rycote BBG Windjammers and BP3600/CABLEEXT 20m LEMO-to-LEMO extension cable – are available separately

Microphones
Element Fixed-charge back plate, permanently polarized condenser
Polar Pattern Hypercardioid
Frequency Response 40 - 20,000 Hz
Open Circuit Sensitivity -41 dB (8.9 mV) (0 dB=1 V/Pa, 1 kHz)
Impedance 70 ohms
Maximum Input Sound Level 144 dB SPL (1 kHz at 1% THD)
Dynamic Range 121 dB (1 kHz at Max SPL)
Signal-to-Noise Ratio 71 dB (1 kHz at 1 Pa, A-weighted)
Phantom Power Requirements 48V DC, 4 mA
Number of Channels 8
Weight 656 g (23 oz)
Dimensions 160.4 mm (6.3”) x 160.4 mm (6.3”) x 217.7 mm (8.6”) (WxDxH)
Output Connector 16-pin LEMO 2B series connector (female)
Accessories Included ・5 m (16.4') LEMO-to-XLRM (x 8) breakout cable
・AT8476 stand clamp for 5/8"-27 threaded stands*
・5/8”-27 to 3/8”-16 threaded adapter
・AT8172 windscreen (x8)
・Case
Audio-Technica Case Style R14
Notes *Mounted on the core body.
1 Pascal = 10 dynes/cm2 = 10 microbars = 94 dB SPL
For product improvement, the product is subject to modification without notice.
