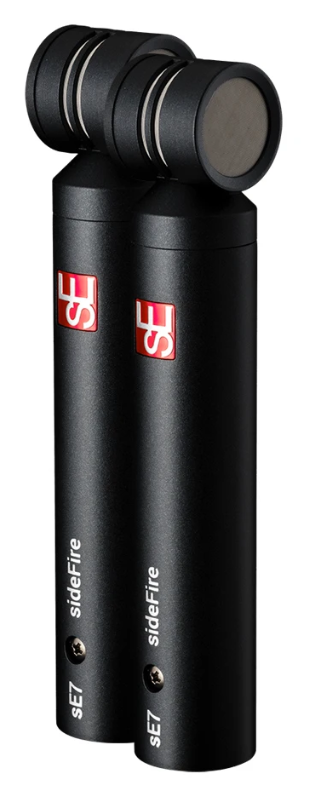

sE-7 Side Fire (Matched Pair)
Small Diaphragm Side Address Cardioid Condenser Microphone with Clip
sE7 sideFire Matched Pair
Convincing stereo recordings require microphones with high consistency and accurate localization from the pair of microphones. Therefore, at sE every pair is selected from hundreds of individual microphones to provide identical performance. The result is the highest possible correlation over the whole frequency range, and virtually identical sensitivity for stunning three-dimensional recordings.
sE7 sideFire
90° Straight Out of the BoxThe sE7 sideFire is a variant of our sE7 high-quality back-electret small-diaphragm condenser microphone intended for a wide range of studio and live sound applications, from acoustic guitars to pianos to drums and beyond, with a rotated capsule to allow for close miking
Specs
Components
Capsule1 / 2" Back-electret condenser capsule
Power
Electrical impedance<200 Ohms
Recommended load impedance>1k Ohms
Connectivity3-pin male XLR connector
Powering48V Phantom Power (P48 according to IEC 61938)
Sound
Polar patternsCardioid
Frequency range20 Hz - 20 kHz
Sensitivity19 mV / Pa (-34.5 dBV)
Max SPL136 / 156 dB (0 / 20 dB attenuation pad)
Equivalent noise level16 dB
Dynamic range120 / 140 dB (0 / 20 dB attenuation pad)
Signal to noise ratio78 dB
Low-cut filter80 Hz, 6 dB / Oct, switchable
Attenuation pad20 dB, switchable
Current consumption3.0 mA
Dimensions
Mic Diameter23 mm (0.91 in.)
Mic length130 mm (5.12 in.)
Mic weight163 g (5.75 oz.)
What's in the box
sE7 sideFire microphone
mic clip (with thread adapter)
wind screen
