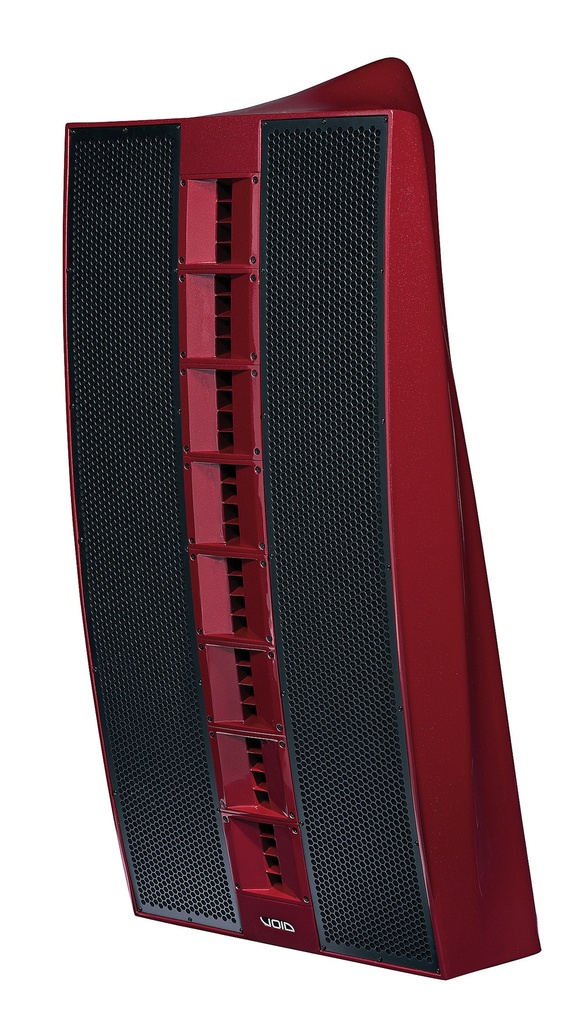

Nexus 6 Red

Captivating efficiency, innovative form

Elegant, sculpted fibreglass enclosure with the latest Virtual Arc technology,

Long Lasting Visual Impact

Create an unforgettable experience with long-lasting visual impact by choosing Nexus 6 as your audio solution. Virtual Arc technology forming a common acoustic centre at the back of the array, combating disadvantages posed by a traditional array.

A Dance Floor Master

Dispersion, phase, coherency and timing are controlled and unified, providing the same audio quality in every corner. Whether stacked on a low frequency enclosure or flown independently the Nexus 6 is perfect for large nightclubs, festivals and bars.

Key Features

• Visually striking appearance for style-led environments
• Virtual Arc technology forms common acoustic centre
• Unified dispersion, phase and timing
• Twenty discrete proprietary drive units
• Stack mounted or proprietary suspension system
• Fibreglass composite construction
• Standard red finish, optional custom colours
• Smooth cellulose finish

Full Specifications

• Frequency Response: 120 Hz - 21 kHz ±3 dB
• Efficiency¹: LF: 105 dB 1W/1m, HF: 110 dB 1W/1m
• Crossover Points: 1.6 kHz active
• Nominal Impedance: LF: 2 x 5.3 Ω, HF: 2 x 4 Ω
• Power Handling²: LF: 2 x 1350 W AES, HF: 2 x 160 W AES
• Maximum Output³: 137 dB cont, 143 dB peak
• Driver Configuration: 12 x 6.5” LF, 8 x 1” HF compression driver
• Dispersion: 110°H x 50°V
• Connectors: 1 x 8-pole speakON™ NL8
• Weight: 75.5 kg (166.5 lbs)
• Enclosure: Fibreglass composite
• Rigging: Stack mounted or proprietary suspension system
• Finish: Smooth cellulose

¹ Measured in half space ² AES2 - 1984 compliant ³ Calculated
