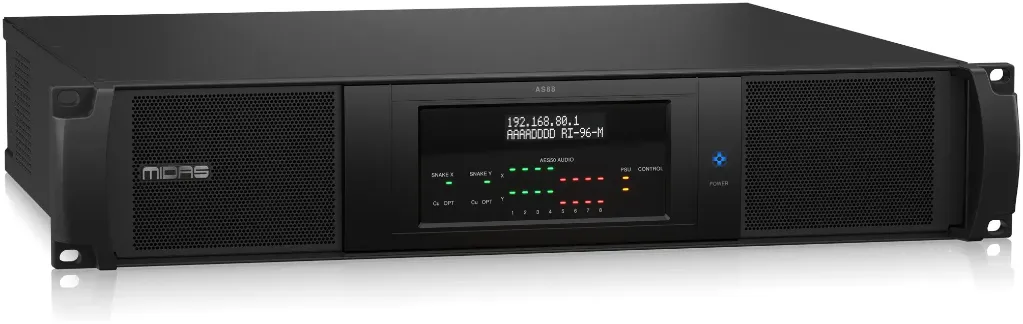

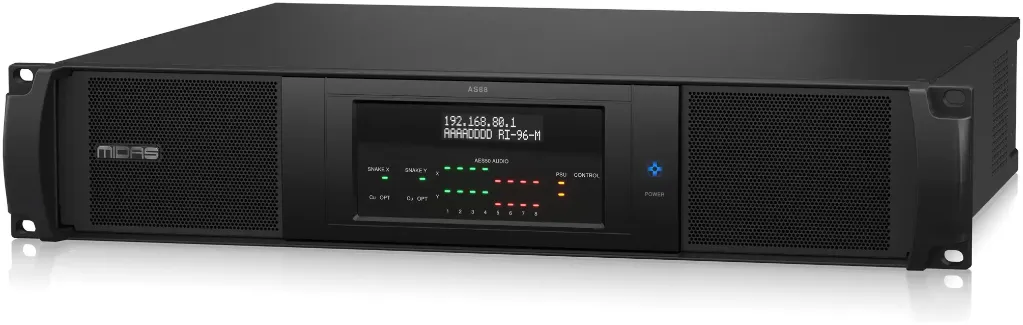

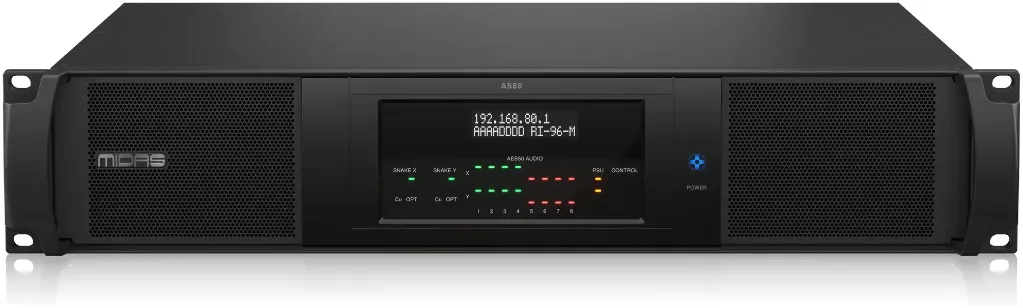

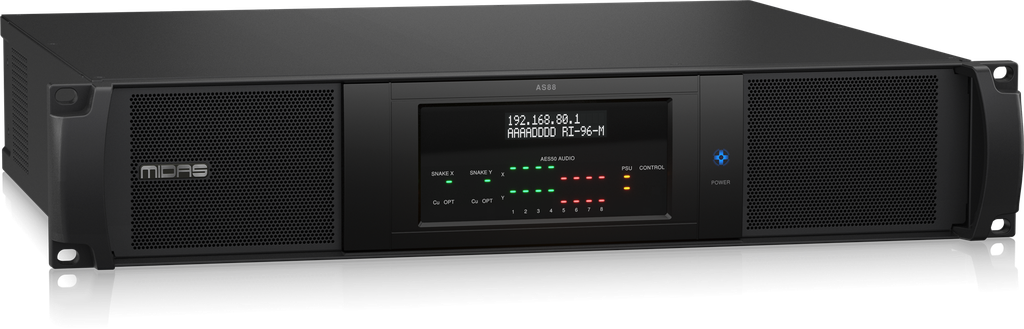

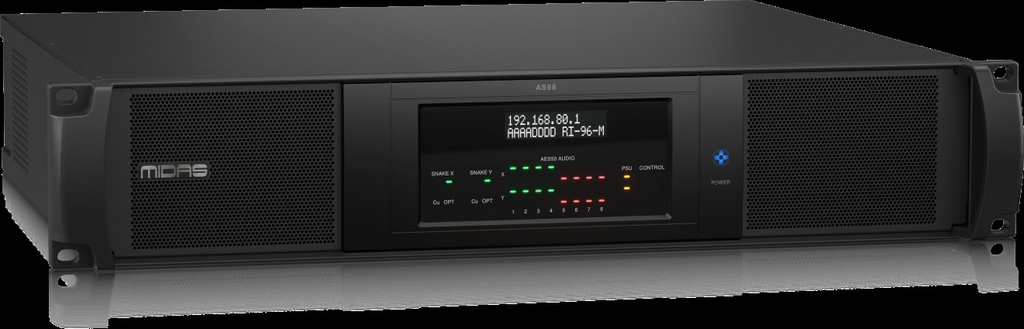

AS88
The Midas AS88 is designed to seamlessly convert a two, high-bitrate HyperMAC connections into eight fully redundant AES50 connections, and vice versa, whilst ensuring ultra-fast audio switching. Built for speed and reliability, AS88 also supports up to 192 bidirectional channels at 96 kHz.
Reliable Redundancy
Using the AS88 with our flagship HD96 console enables full redundancy across both console Snake ports – unlocking greater channel capacity and enhanced system reliability. Furthermore, AS88’s utilisation of advanced FPGA-based switching technology ensures dependable HyperMAC failover to a redundant connection when needed.
Seamless Integration
Equipped with rugged industry standard RJ45 and optical connectors, the AS88 ensures seamless system integration and reliable, high-performance audio transmission over long distances. Engineered for professionals who demand rock-solid stability and uncompromising audio quality, it’s the trusted solution for touring and live sound environments.
Specification
Architecture
| HyperMAC / AES50 Converter |
2 In / 16 Out (Dual redundancy) |
| Channels |
192 at 96 KHz |
Connectivity
| Power switches |
2 x rocker on rear panel |
| Power Inlets |
2 x IEC C13 on rear panel |
| Power indicator |
Blue LED on front panel |

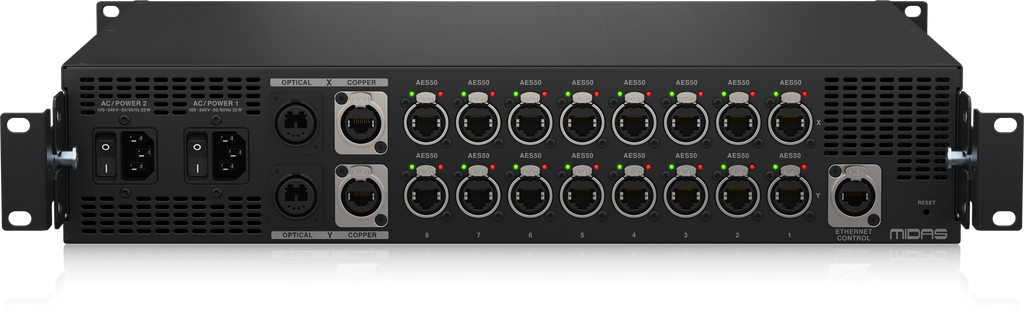

Inputs
| HyperMAC Optical |
2 x standard connector on rear panel |
| HyperMAC Copper |
2 x standard connector on rear panel |
| Ethernet |
RJ45 connector on rear panel |
Outputs
| AES50 |
16 x RJ45 socket on rear panel |
Controls
| Factory Reset |
Pushbutton on rear panel |

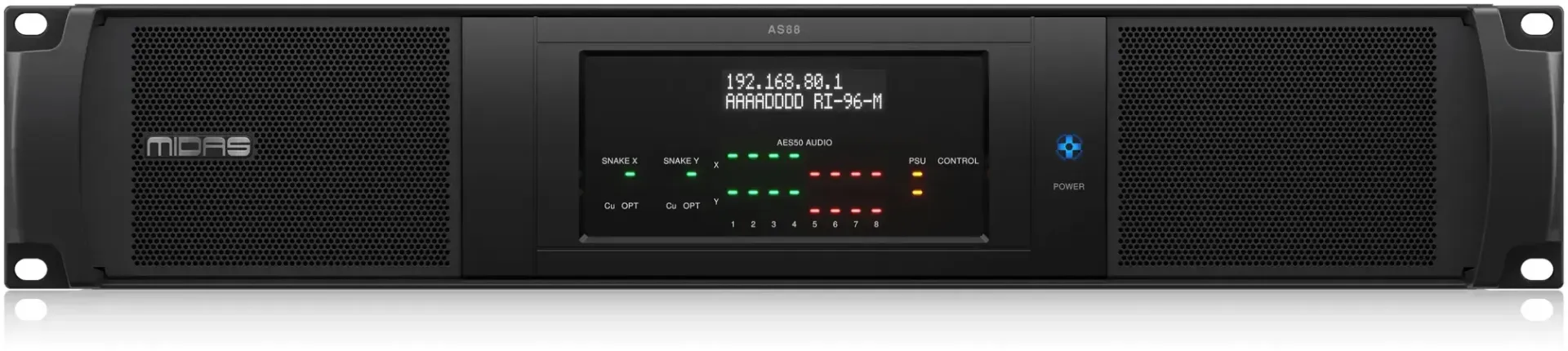

Display
| 2 x 20 character |
LEDs
| Snake X status |
2 x green / 2 x red |
| Snake Y status |
2 x green / 2 x red |
| PSU status |
2 x green / 2 x red |
| AES50 status |
16 x green / 16 x red |
| Ethernet status |
1 x green |
Power Requirements
| Voltage |
100 – 240 V 50 / 60 Hz AC |
| Power consumption |
2 x 25 W maximum draw (Dual redundancy) |
Physical
| Standard Operating Temperature |
5° C - 45° C (41° F - 113° F) |
| Dimensions (H x W x D) |
88 x 440 x 483 mm (3.46 x 17.32 x 19.01") |
| Weight |
6.59 kg (14.53 lbs) |
