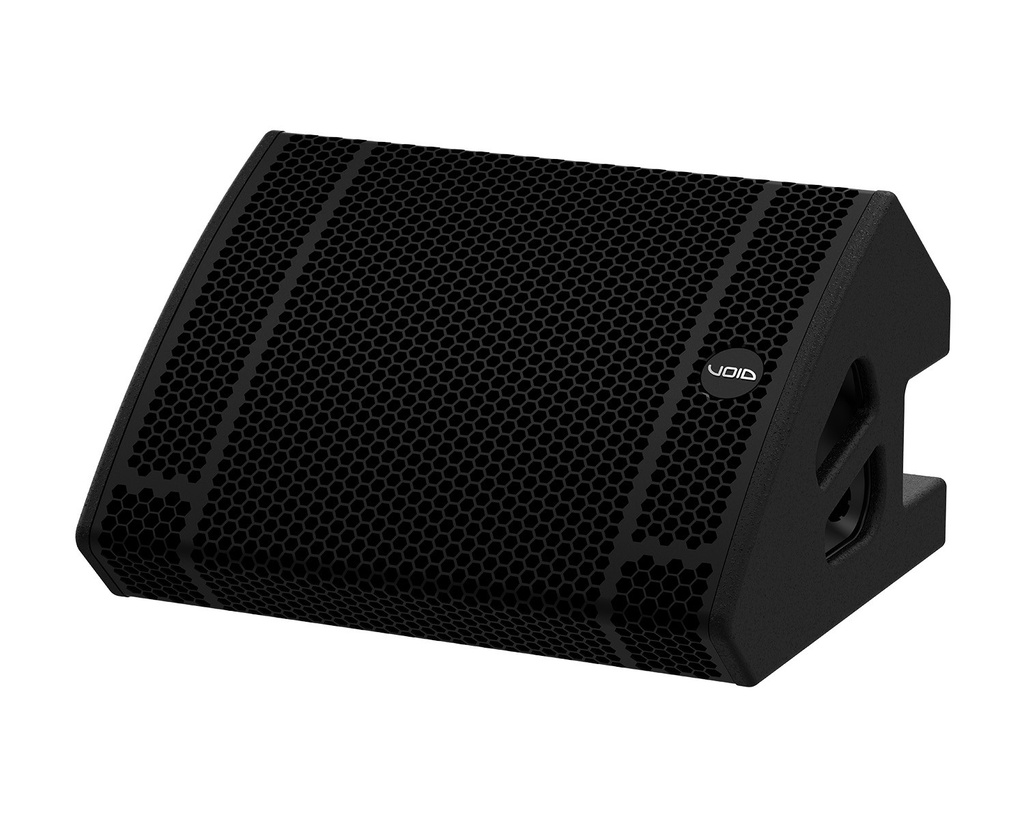

ArcM-12

Ergonomically Considered Designs

The ArcM 12 has been consciously formulated to consider its aesthetic impact when applied in application settings, with low-profile configuration. Featuring extensive FEA analysis, which results in significantly reduced port noise and air distortion.

Hard-Wearing Polyurea Finish

Two wedge operating modes respectively designed for stage and near field monitoring allow for increased application suitability. The ArcM 12 is ideal for use in bars, clubs and lounges; corporate and AV; live music venues or as stage monitoring.

Key Features

• High power 12” + 1.4’’ coaxial neodymium transducer
• Two wedge operating modes (stage and nearfield monitoring)
• Integral pole mount for 35 mm diameter poles
• Low profile design for cleaner stage lines
• Ergonomically designed handles for easy manual handling
• External dimensions optimised for truck packing
• Hard-wearing polyurea finish
• Type 80 rear mounting plate for wall/ceiling fixing

Full Specifications

• Frequency response: 60 Hz - 18 kHz ±3 dB
• Efficiency¹: 100 dB 1W/1m
• Crossover point: 1.2 kHz (passive)
• Nominal impedance: 1 x 8 Ω passive, 1 x 8 Ω (LF) and 1 x 16 Ω (HF) active
• Power handling²: 500 W AES
• Maximum output³: 126 dB cont, 132 dB peak
• Driver configuration: Coaxial 1 x 12” - 1 x 1.4” neodymium
• Dispersion: 80°H x 80°V
• Connectors: 2 x 4-pole speakON™ NL4
• Height: 330 mm (13”)
• Width: 550 mm (21.7”)
• Depth: 463 mm (18.2”)
• Weight: 19 kg (41.9 lbs)
• Mounting: Integral top hat, type 80 mounting bracket
• Finish: Textured polyurea
