3000 Watt 15" Front Loaded Subwoofer with Klark Teknik DSP Technology and ULTRANET Networking
Product Features
Front loaded powered subwoofer for portable PA and installation applications
3,000 Watt power featuring Klark Teknik Class-D technology
Klark Teknik Digital Signal Processing for total system control
ULTRANET digital audio networking connects to mixers and other sources
Double suspension 15" low frequency driver with inside/outside wound coil
Fully featured user interface with LCD display for ease of navigation
PC remote control software downloadable at turbosound.com
Low distortion bass reflex port design
18 mm (3/4") birch plywood enclosure with hard wearing semi matt black paint finish
Integral M10 rigging points for ease of installation
35 mm pole mount to support satellite speaker
Mains input on industry standard twist-lock power connector

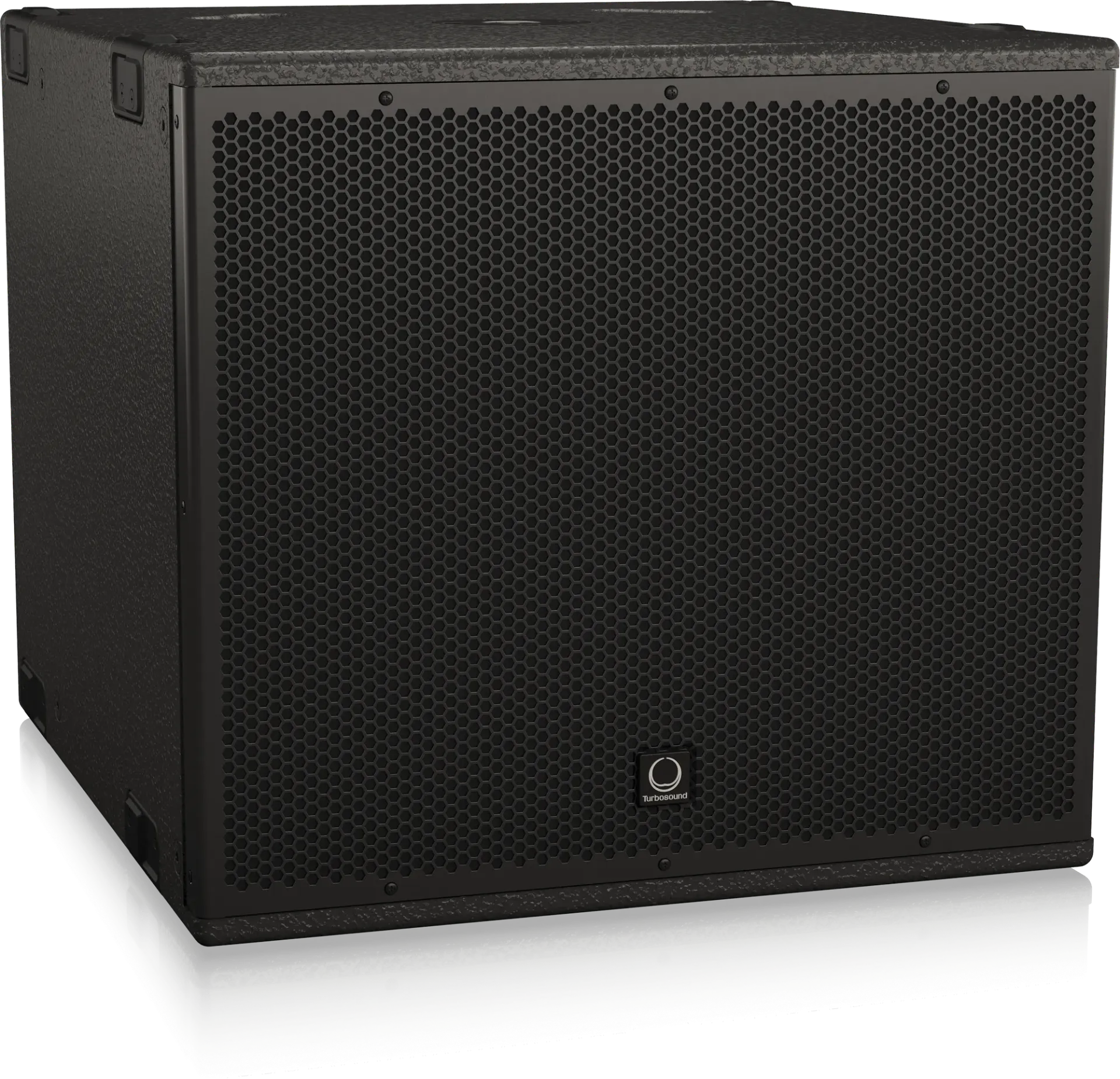

NuQ115B-AN
On the rear panel of the amplifier module, the user interface’s LCD display and single rotary encoder provide intuitive access to: position compensation, user EQ control, crossover alignment and signal routing features. In addition to the balanced XLR input, an XLR output is provided for daisy-chaining more active subwoofers, or for use with active full range satellite speakers. An onboard USB port provides access for remote control of the NuQ115B-AN via PC computer, as well as DSP firmware updates.
ULTRANET connectivity is provided by two locking RJ45 connectors. Up to 16 independent channels of 24-bit digital audio and control data are transmitted via a single CAT5 cable between compatible digital devices – including mixers, I/O stage boxes, powered loudspeakers and personal monitoring systems. Simplified cable routing and ease of setup translate directly into significant time saved during installation.
Finished in a highly durable semi matt black paint, the cabinet is constructed from 18 mm (¾ ") birch plywood and includes – and includes a rugged powder coated perforated steel mesh grille backed with reticulated foam; multiple M10 threaded rigging points; a 35 mm pole socket for satellite speaker mounting; integrated carry handles for convenient transport – and high impact interlocking corners for ground stacking stability. Mains power input is provided via an industry-standard twist-locking power connector.
On the rear panel of the amplifier module, the user interface’s LCD display and single rotary encoder provide intuitive access to: position compensation, user EQ control, crossover alignment and signal routing features. In addition to the balanced XLR input, an XLR output is provided for daisy-chaining more active subwoofers, or for use with active full range satellite speakers. An onboard USB port provides access for remote control of the NuQ115B-AN via PC computer, as well as DSP firmware updates.
ULTRANET connectivity is provided by two locking RJ45 connectors. Up to 16 independent channels of 24-bit digital audio and control data are transmitted via a single CAT5 cable between compatible digital devices – including mixers, I/O stage boxes, powered loudspeakers and personal monitoring systems. Simplified cable routing and ease of setup translate directly into significant time saved during installation.
Finished in a highly durable semi matt black paint, the cabinet is constructed from 18 mm (¾ ") birch plywood and includes – and includes a rugged powder coated perforated steel mesh grille backed with reticulated foam; multiple M10 threaded rigging points; a 35 mm pole socket for satellite speaker mounting; integrated carry handles for convenient transport – and high impact interlocking corners for ground stacking stability. Mains power input is provided via an industry standard twist-locking power connector.
Specification
| Frequency Response | 45 Hz – 150 Hz ±3 Db 38 Hz – 200 Hz -10 dB |
| Nominal Dispersion | Half Space |
| Maximum SPL | 135 dB peak |
| Crossover Type | Active |
| Transducers | 1 x 15" (387 mm) LF driver |
| Limiter | Peak and rms |
Amplifier
| Maximum Output Power* | 3,000 W |
| Type | Class-D |
| Protection | Short circuit, thermal |
Connectors
| Input/link | 1 x Combo Jack/XLR 1 x XLR |
| Ultranet input/link | 2 x RJ45 |
| Mains Supply | Industry-standard twist-lock power 20A† |
Controls
| DSP | Rotary push-encoder and level control Buttons for Process, Setup, Exit, Enter |
User DSP Functions
| Factory EQ Presets | Positioning, Sound mode |
| Display | LCD 128 x 32, blue, backlit |
| Delay | 0 - 300 ms |
| Equalisation | High and low shelving EQ 2 x parametric EQ |
| Limiter | Zero attack input limiter |
| Presets | 20 total presets, 19 user-definablenable |
| Crossover | Low Pass L-R 24 dB/oct |
| Protection | Lock-out function for all settings |
Ultranet Digital Network
| Digital processing | |
| System | |
| Cabling |
Power Supply
| Power consumption | 180 W @ 1/8 max power |
| Voltage (fuses) |
Enclosure
| Dimensions HWD | 519 x 579 x 620 mm (20.4 x 22.8 x 24.4") |
| Net weight | 37 kg (81.5 lbs) |
| Construction | 18 mm (5/8") birch plywood |
| Finish | Semi matt black paint |
| Grille | Powder coated perforated steel |
| Flying hardware | M10 x 16 points |
*independent of limiters and driver protection circuits
† Only qualified personnel are allowed to modify the AC-Main cord and to adhere to all applicable national standards.
