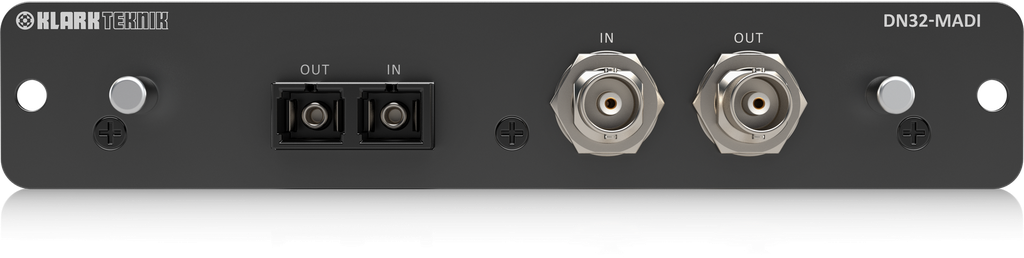

MADI devices are widely used in a broad range of pro audio applications including permanent installation, touring sound, live/studio recording, and broadcasting. The DN32-MADI expansion card enables your Midas M32 or Behringer X32 digital console to exchange 24-bit multichannel audio streams at 44.1 or 48 kHz with any other MADI compatible devices. Protocols supported by the DN32-MADI include AES10-1991 with up to 56 x 56 channels, and AES10-2003 with up to 64 x 64 channels.
-
MADI (AES10-compliant) expansion module for Midas and Behringer digital consoles
-
Up to 32 bidirectional channels @ 48 kHz sample rate
-
Operates up to 500 m over optical fibre link and 100 m over coaxial copper link
-
Optical transmission on SC-Duplex* connector
-
Copper transmission on 75 ohm coaxial BNC connectors
-
Dual-redundant operation with failover from optical to copper connections
-
Operates as either MADI clock master or MADI clock slave
-
Selection of 32 input and output channels (1-32, 33-64) from 64 MADI channels
-
10-Year Warranty Program*
-
Designed and engineered in the U.K.
