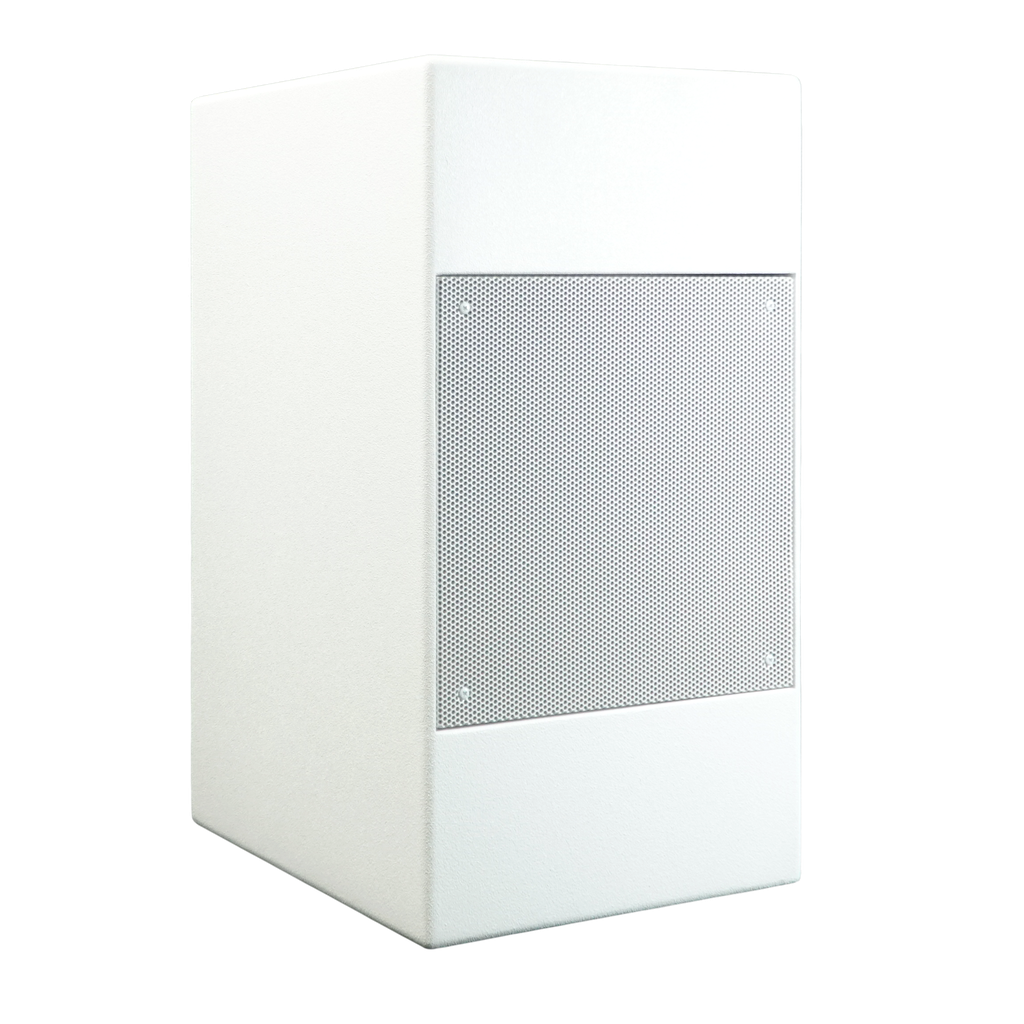

As for the lower end, IS series is comprised of two passive subwoofers, respectively equipped with a 1x8" or a 1x12" woofer.
The compact size of both boxes is ideal when it comes to integrate a low-end extension cabinet in a venue, without dragging too much attention to it.
Needless to say the keyword here is: ease of installation and unobtrusiveness. That's why each single system in IS series comes with a smooth design, Phoenix connectors, black or white version
Technical Data
| Speaker Type | Passive Subwoofer |
Acoustical data
| RMS Power | 250 W |
| Peak Power | 1000 W |
| Frequency Response [-6 dB] | 40 Hz - custom LPF |
| Impedance | 8 Ohm |
| Sensitivity 1W@m | 97.5 dB |
| Max SPL | 127.5 dB |
| LF | 1x 12", 2.5" v.c. |
Input
| Connections | Phoenix |
Mechanics
| Housing | Plywood, water-painted coating |
| Rigging points | 16x M8 pickup point |
| IP rating | IP 32 |
| Width | 335 mm (13.2 in) |
| Height | 624 mm (24.6 in) |
| Depth | 400 mm (15.7 in) |
| Weight | 15 kg (33 lbs) |
