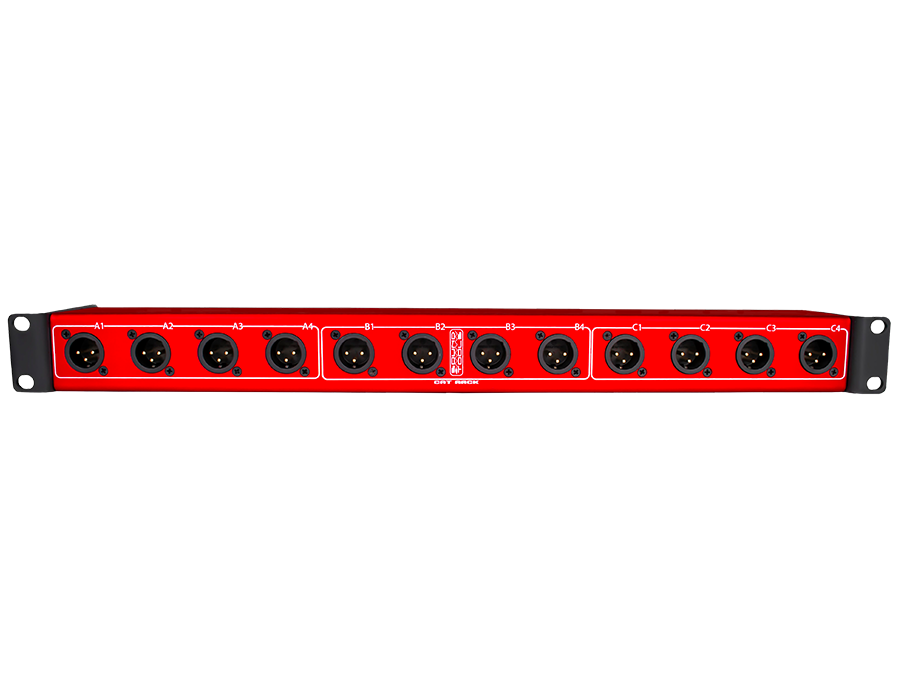

CAT Rack

The SoundTools CAT Rack brings audio-over-Cat5 functionality to your rack with our reverse-mountable unit.
-Run 12 channels of audio or COM through 3 Cat5e cable lines
-Manufactured for reliability with touring in mind
-12 male or female XLR connections, 6 etherCON connections
-Custom configurations available on request
-Fits in 1U rack slot

MADE FOR THE STAGE

The SoundTools CAT Rack is a rack mount stage box capable of delivering up to 12 channels of audio and data from XLR or DMX sources over three CAT cable lines. Fully passive, these all-analog stage boxes are customizable to deliver the best in audio and data without interference or signal loss.

RACK MOUNTABLE STAGE BOX

The SoundTools CAT Rack is the ultimate in rack-mounted XLR-to-Cat stage boxes. Twelve XLR ins or outs (call us for custom builds) line one side of the unit, and 3 pairs of etherCon ins and outs (6 connections total) are on the other side. CAT Racks are all-analog and designed with machined anodized aluminum and stainless steel screws for ultimate durability. When used with shielded Cat5e cable or better, the CAT Rack allows for the use of phantom power.

REVERSIBLE EARS

Easily reverse the rack ears to change which way the rack is mounted by unscrewing the two screws on each side.
