sE-7 Side Fire
Small Diaphragm Side Address Cardioid Condenser Microphone with Clip

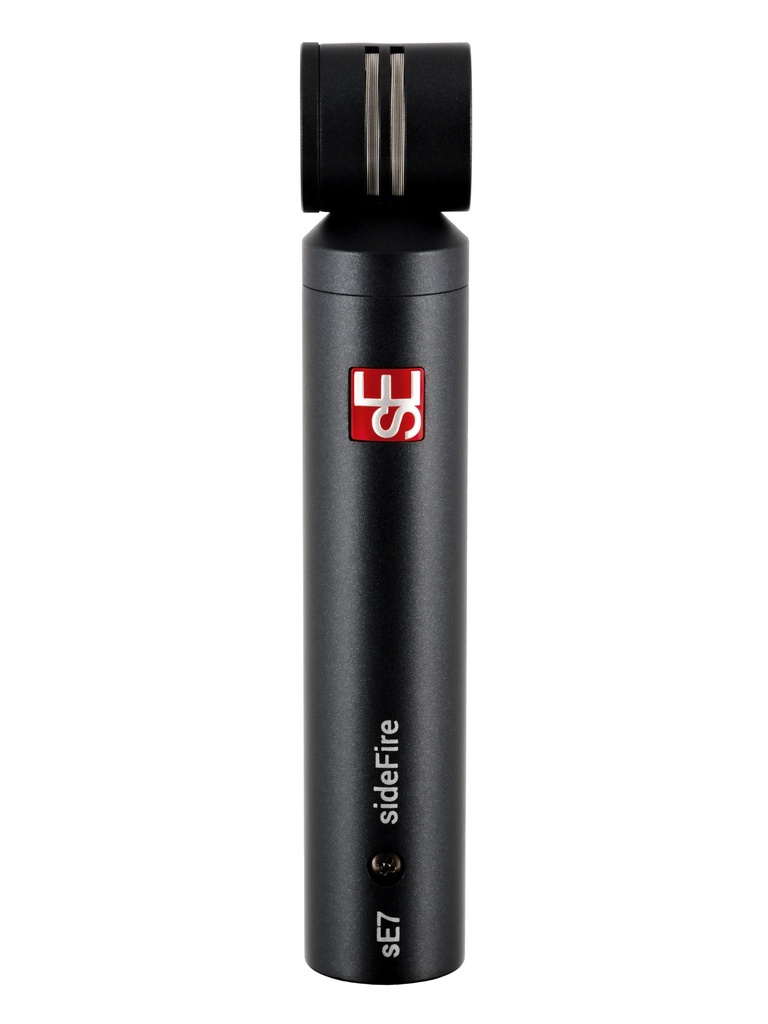

sE7 sideFire
90° Straight Out of the BoxThe sE7 sideFire is a variant of our sE7 high-quality back-electret small-diaphragm condenser microphone intended for a wide range of studio and live sound applications, from acoustic guitars to pianos to drums and beyond, with a rotated capsule to allow for close miking
Specs
Components
Capsule1 / 2" Back-electret condenser capsule
Power
Electrical impedance<200 Ohms
Recommended load impedance>1k Ohms
Connectivity3-pin male XLR connector
Powering48V Phantom Power (P48 according to IEC 61938)
Sound
Polar patternsCardioid
Frequency range20 Hz - 20 kHz
Sensitivity19 mV / Pa (-34.5 dBV)
Max SPL136 / 156 dB (0 / 20 dB attenuation pad)
Equivalent noise level16 dB
Dynamic range120 / 140 dB (0 / 20 dB attenuation pad)
Signal to noise ratio78 dB
Low-cut filter80 Hz, 6 dB / Oct, switchable
Attenuation pad20 dB, switchable
Current consumption3.0 mA
Dimensions
Mic Diameter23 mm (0.91 in.)
Mic length130 mm (5.12 in.)
Mic weight163 g (5.75 oz.)
What's in the box
sE7 sideFire microphone
mic clip (with thread adapter)
wind screen
sE7 sideFire
90° Straight Out of the BoxThe sE7 sideFire is a variant of our sE7 high-quality back-electret small-diaphragm condenser microphone intended for a wide range of studio and live sound applications, from acoustic guitars to pianos to drums and beyond, with a rotated capsule to allow for close miking
Specs
Components
Capsule1 / 2" Back-electret condenser capsule
Power
Electrical impedance<200 Ohms
Recommended load impedance>1k Ohms
Connectivity3-pin male XLR connector
Powering48V Phantom Power (P48 according to IEC 61938)
Sound
Polar patternsCardioid
Frequency range20 Hz - 20 kHz
Sensitivity19 mV / Pa (-34.5 dBV)
Max SPL136 / 156 dB (0 / 20 dB attenuation pad)
Equivalent noise level16 dB
Dynamic range120 / 140 dB (0 / 20 dB attenuation pad)
Signal to noise ratio78 dB
Low-cut filter80 Hz, 6 dB / Oct, switchable
Attenuation pad20 dB, switchable
Current consumption3.0 mA
Dimensions
Mic Diameter23 mm (0.91 in.)
Mic length130 mm (5.12 in.)
Mic weight163 g (5.75 oz.)
What's in the box
sE7 sideFire microphone
mic clip (with thread adapter)
wind screen
